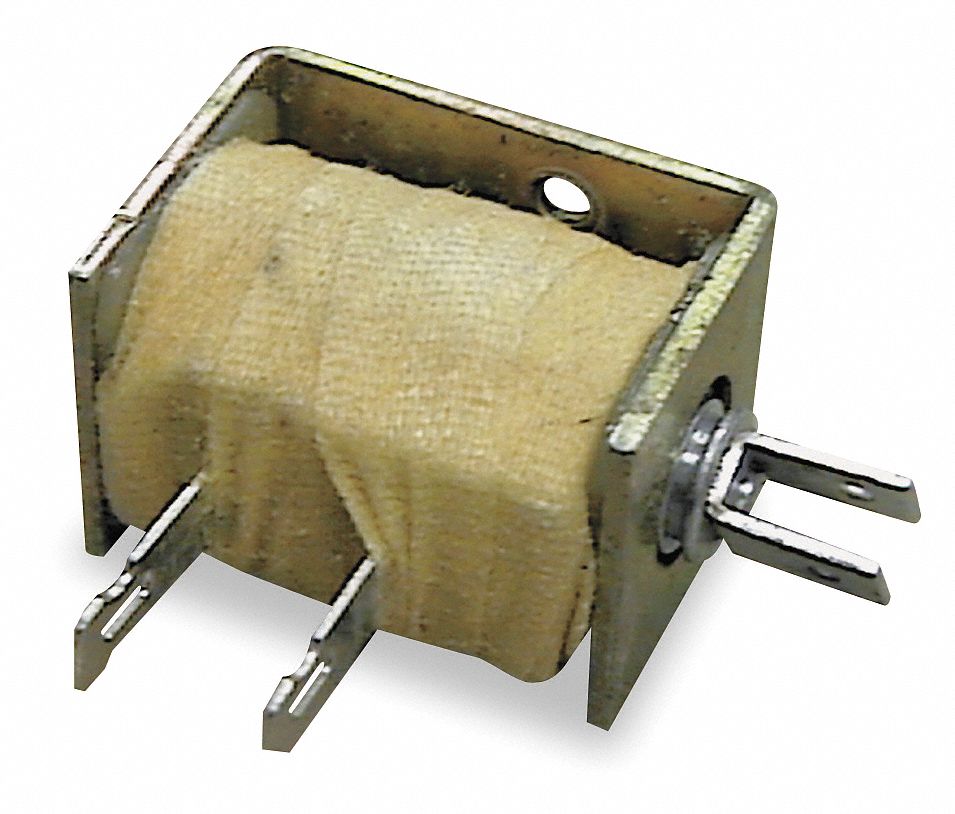

DORMEYER Solenoid, C Frame

| Write a Review
| Read all Reviews
| Read all Ask & Answer

C Frame Solenoid, Current @ Maximum Stroke 0.21 Amp, Coil Insulation Class A, Coil Resistance 620 Ohms, Coil Voltage Rating @ 60 Hz 120 VAC, Seated Current 0.07 Amp, Seated Power 5.8 Watts, From Mounting Holes to Plunger Line 3/4 Inch, Length 1 3/16 Inches, Depth 1 1/8 Inches, Width 3/4 Inch

Grainger Item #	2A171
Price (ea.)	$17.72
Brand	DORMEYER
Mfr. Model #	C8-19-A-14
UNSPSC #	31251510
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.2
Availability	Clearance - limited quantity available
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Solenoid
Type		C-Frame
Stroke Range		1/16 to 1/2"
Pull Force Range		3 to 11 oz.
Width (In.)		3/4
Depth (In.)		13/16
Length (In.)		1-1/8
Coil Volts		120VAC
Seated Amps		0.07
Seated Watts		5.8
Coil Resistance (Ohms)		620
Coil Insulation		Class A
Terminals		Quick Connect
Amps @ Max. Stroke		0.21
From Mounting Holes to Plunger Hole (In.)		3/4
Gravity Value (Oz.)		0.32
