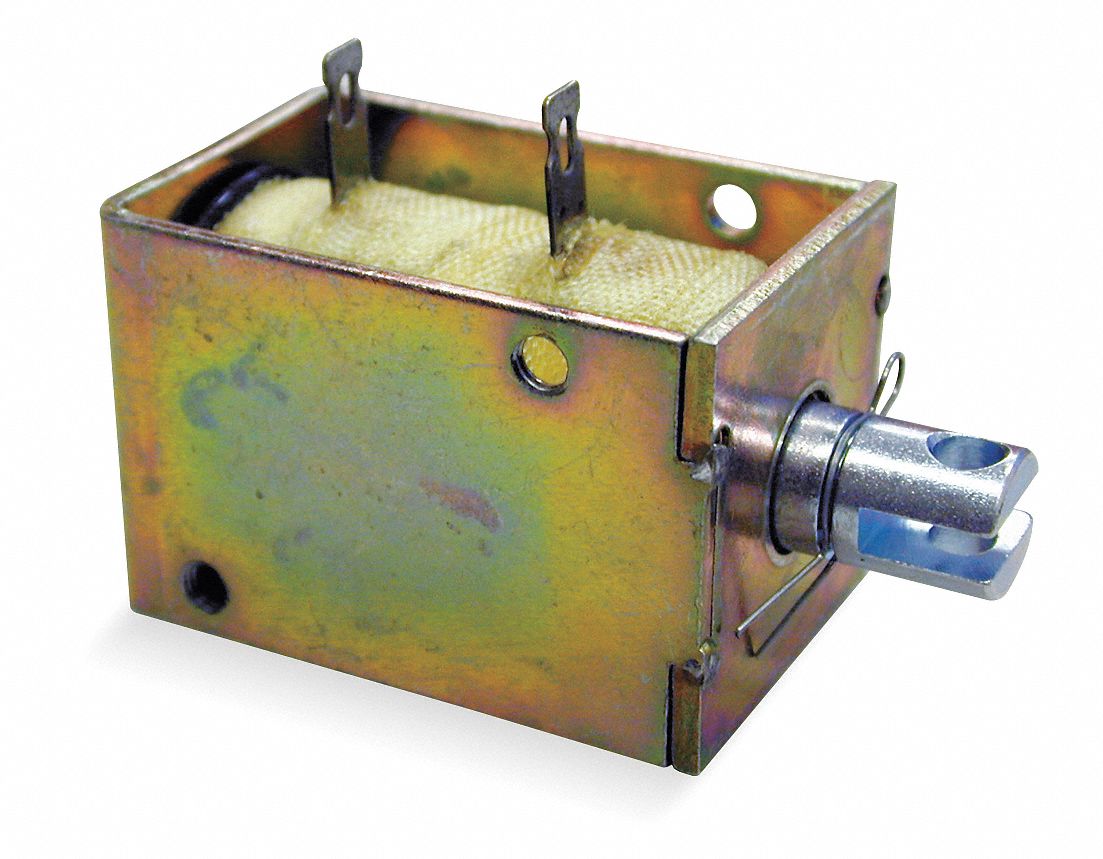

DORMEYER Solenoid, Box Frame

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Box Frame Solenoid, Coil Voltage 24 VDC, Current @ Maximum Stroke 0.44 Amp, Coil Insulation Class A, Coil Resistance 60.0 Ohms, Seated Current 0.44 Amp, Seated Power 10.6 Watts, From Mounting Holes to Plunger Line 27/32 Inch, Length 1 5/16 Inches, Depth 2 Inches, Width 1 5/16 Inches

Grainger Item #	2A170
Price (ea.)	$23.95
Brand	DORMEYER
Mfr. Model #	B24-253-A-1
UNSPSC #	31251510
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.55
Availability	Clearance - limited quantity available
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Solenoid
Type		Box Frame
Stroke Range		1/16 to 7/8"
Pull Force Range		2 to 48 oz.
Width (In.)		1-5/16
Depth (In.)		2
Length (In.)		1-5/16
Coil Volts		24VDC
Seated Amps		0.44
Seated Watts		10.6
Coil Resistance (Ohms)		60.0
Coil Insulation		Class A
Terminals		Type 1 Solder Lug Coil
Amps @ Max. Stroke		0.44
From Mounting Holes to Plunger Hole (In.)		27/32
Gravity Value (Oz.)		1.41
