HVAC and Refrigeration
>
Exhaust Fans
>
Hazardous Location Exhaust Fans

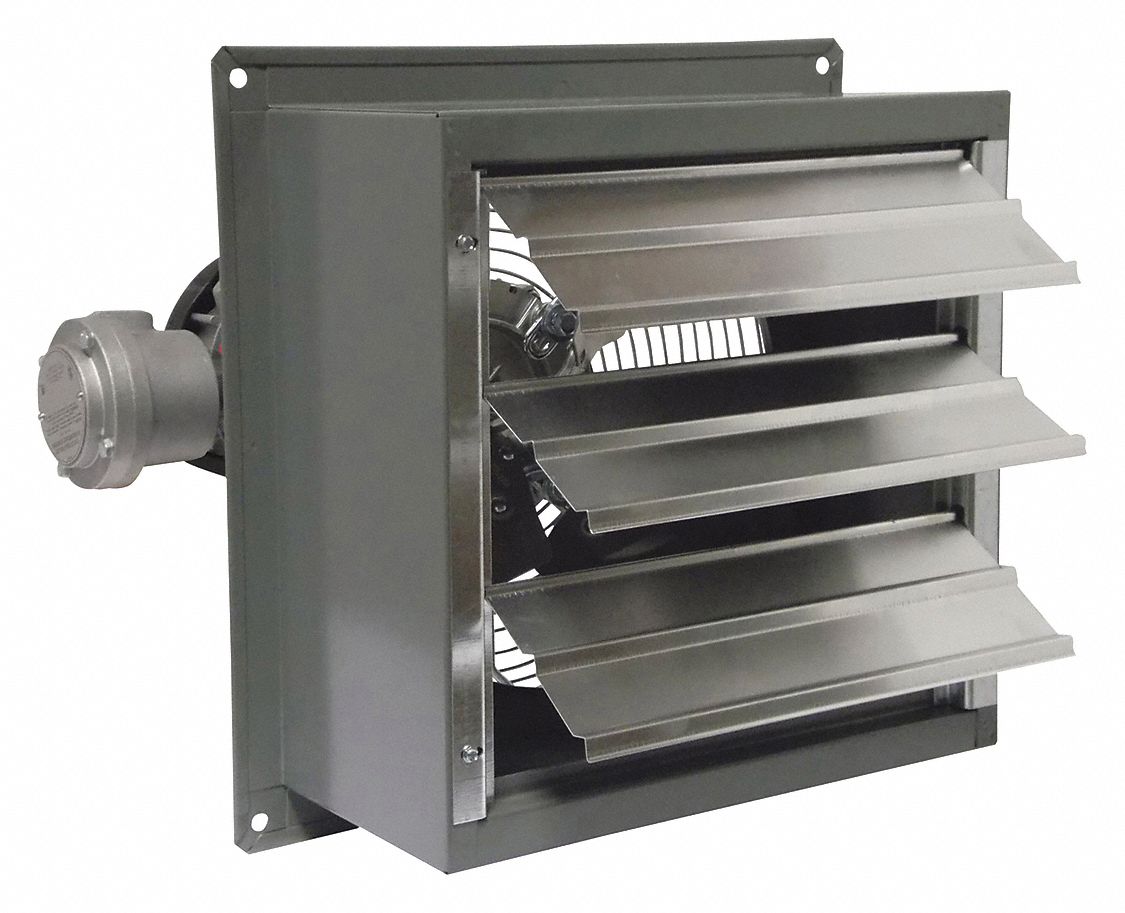

DELHI Exhaust Fan, Hazardous Location, 18 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Panel Exhaust Fan, Direct Drive, Hazardous Location, Propeller Dia. (In.) 18, CFM @ 0.000-In. SP 3200, Voltage 115/208-230, 60 Hz, 1 Phase, Full Load Amps 6.6/3.1-3.3, Watts 250, Motor HP 1/3, Bearing Type Ball, Motor RPM 1625, Motor Type Capacitor Start, Motor Enclosure Explosion Proof Fan Cooled, Motor Insulation Class B, Max. Ambient Temp. (F) 104, Height (In.) 23-1/4, Width (In.) 23-1/4, Max. Depth (In.) 20-1/2, Mounting Holes O.C. (In.) 22, Venturi Clearance Dia. (In.) 1/8

Grainger Item #	23N614
Price (ea.)	$1,261.00
Brand	DELHI
Mfr. Model #	SD18-XPF
UNSPSC #	40101502
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	90.0
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Canada

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Panel Exhaust Fan
Type		Direct Drive, Hazardous Location
Propeller Dia. (In.)		18
CFM @ 0.000-In. SP		3200
CFM @ 0.250-In. SP		2920
Voltage		115/208-230
Hz		60
Phase		1
Full Load Amps		6.6/3.1-3.3
Watts		250
Motor HP		1/3
Bearing Type		Ball
Motor RPM		1625
Motor Type		Capacitor Start
Motor Enclosure		Explosion Proof Fan Cooled
Motor Insulation		Class B
Max. Ambient Temp. (F)		104
Height (In.)		23-1/4
Width (In.)		23-1/4
Max. Depth (In.)		20-1/2
Mounting Holes O.C. (In.)		22
Venturi Clearance Dia. (In.)		1/8
Shaft Dia. (In.)		1/2
Flange Depth (In.)		1-1/4
Mounting Position		Horizontal
Flange Width (In.)		1-1/4
Number of Blades		3
Propeller Material		Aluminum
Frame Material		Steel
Frame Finish		Painted
Agency Compliance		CSA
