DAYTON Motor, 1/2 HP, Yoke

| Write a Review
| Read all Reviews
| Read all Ask & Answer

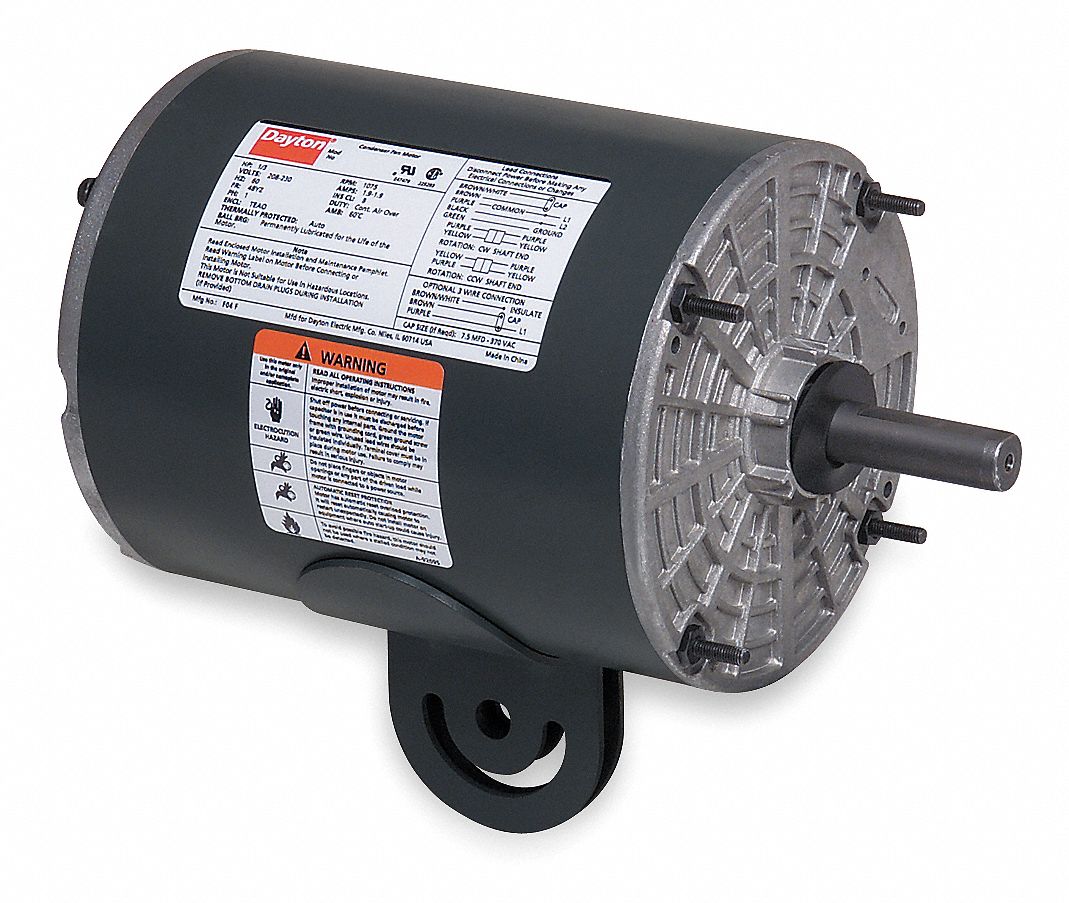

Yoke Mount Fan Motor, Split-Phase, Totally Enclosed Air-Over, 1/2 HP, Nameplate RPM 1725, Voltage 115, Full Load Amps 6.4, Hz 60, Phase 1, 48YZ NEMA/IEC Frame, 1.0 Service Factor, Ambient Temperature 40 Degrees C, Insulation Class B, Duty Continuous Air-over, Number of Speeds 1, Yoke Mounting, Ball Bearings, Auto Thermal Protection, CW/CCW Rotation, Body Dia. 5-5/8 In., Overall Length 10-1/8 In., Shaft Dia. 5/8 In., Shaft Length 2 In., 10 Ft. Cord & Pull Chain Switch No1400-1800 RPM Range

Grainger Item #	6K809
Price (ea.)	$223.34
Brand	DAYTON
Mfr. Model #	6K809
UNSPSC #	26101611
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	22.03
Availability	Typically in Stock
Catalog Page No.	77
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Yoke Mount Fan Motor
Motor Type		Split-Phase
Enclosure		Totally Enclosed Air-Over
HP		1/2
Nameplate RPM		1725
Voltage		115
Full Load Amps		6.4
Hz		60
Phase		1
NEMA/IEC Frame		48YZ
Frame		48YZ
Service Factor		1.0
Ambient Temperature		40 Degrees C
Insulation Class		B
Duty		Continuous Air-over
Number of Speeds		1
Mounting		Yoke
Bearings		Ball
Thermal Protection		Auto
Rotation		CW/CCW
Body Dia.		5-5/8"
Overall Length		10-1/8"
Shaft Dia.		5/8"
Shaft Length		2"
10 Ft. Cord & Pull Chain Switch		No
RPM Range		1400-1800
Capacitor Included		No
