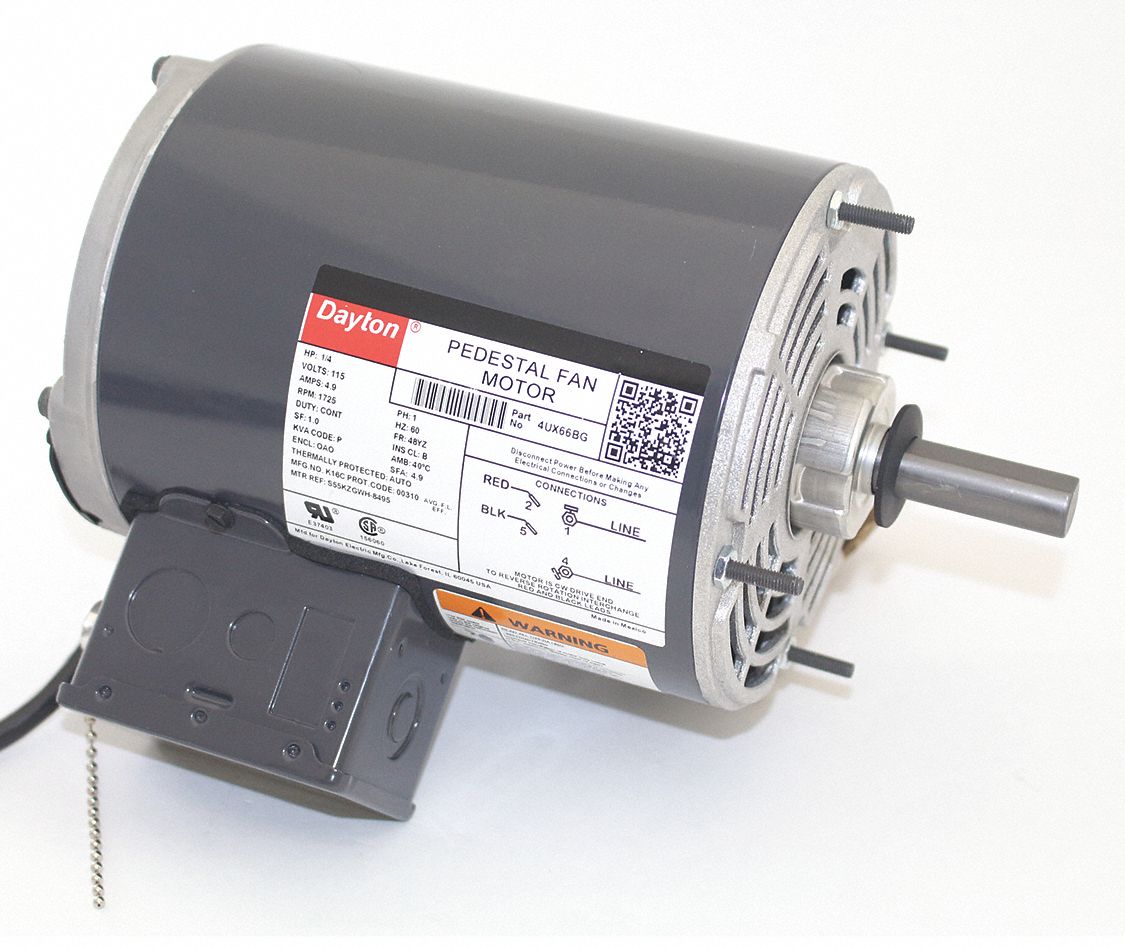

DAYTON Motor, 1/4 HP, Yoke

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Yoke Mount Fan Motor, Split-Phase, Open Air-Over, 1/4 HP, Nameplate RPM 1725, Voltage 115, Full Load Amps 4.1, Hz 60, Phase 1, 48YZ NEMA/IEC Frame, 1.0 Service Factor, Ambient Temperature 40 Degrees C, Insulation Class B, Duty Continuous Air-over, Number of Speeds 1, Yoke Mounting, Ball Bearings, Auto Thermal Protection, CW Rotation, Body Dia. 5-5/8 In., Overall Length 9-5/8 In., Shaft Dia. 5/8 In., Shaft Length 2 In., 10 Ft. Cord & Pull Chain Switch Yes1400-1800 RPM Range, Capacitor Included No

Grainger Item #	4UX66
Price (ea.)	$209.00
Brand	DAYTON
Mfr. Model #	4UX66
UNSPSC #	26101611
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	16.0
Availability	Typically in Stock
Catalog Page No.	77
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Yoke Mount Fan Motor
Motor Type		Split-Phase
Enclosure		Open Air-Over
HP		1/4
Nameplate RPM		1725
Voltage		115
Full Load Amps		4.1
Hz		60
Phase		1
NEMA/IEC Frame		48YZ
Frame		48YZ
Service Factor		1.0
Ambient Temperature		40 Degrees C
Insulation Class		B
Duty		Continuous Air-over
Number of Speeds		1
Mounting		Yoke
Bearings		Ball
Thermal Protection		Auto
Rotation		CW
Body Dia.		5-5/8"
Overall Length		9-5/8"
Shaft Dia.		5/8"
Shaft Length		2"
10 Ft. Cord & Pull Chain Switch		Yes
RPM Range		1400-1800
Capacitor Included		No
