DAYTON Washdown Motor, 3 Ph, TENV, 1 HP, 1740 rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Washdown Motor, 3-Phase, 1 HP, 1740 Nameplate RPM, Voltage 208-230/460, Phase 3, 56HC Frame, Totally Enclosed Nonventilated, Full Load Amps 3.1-3.0/1.5, 60 Hz, Face/Base Mounting, Thermal Protection None, F Insulation Class, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Rotation, Overall Length 11-7/16 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In.Continuous Duty, Frame Material Stainless Steel, Shaft Material 300 Series Stainless Steel

Grainger Item #	6WY38
Price (ea.)	$644.00
Brand	DAYTON
Mfr. Model #	6WY38
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	44.35
Availability	Typically in Stock
Catalog Page No.	34
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

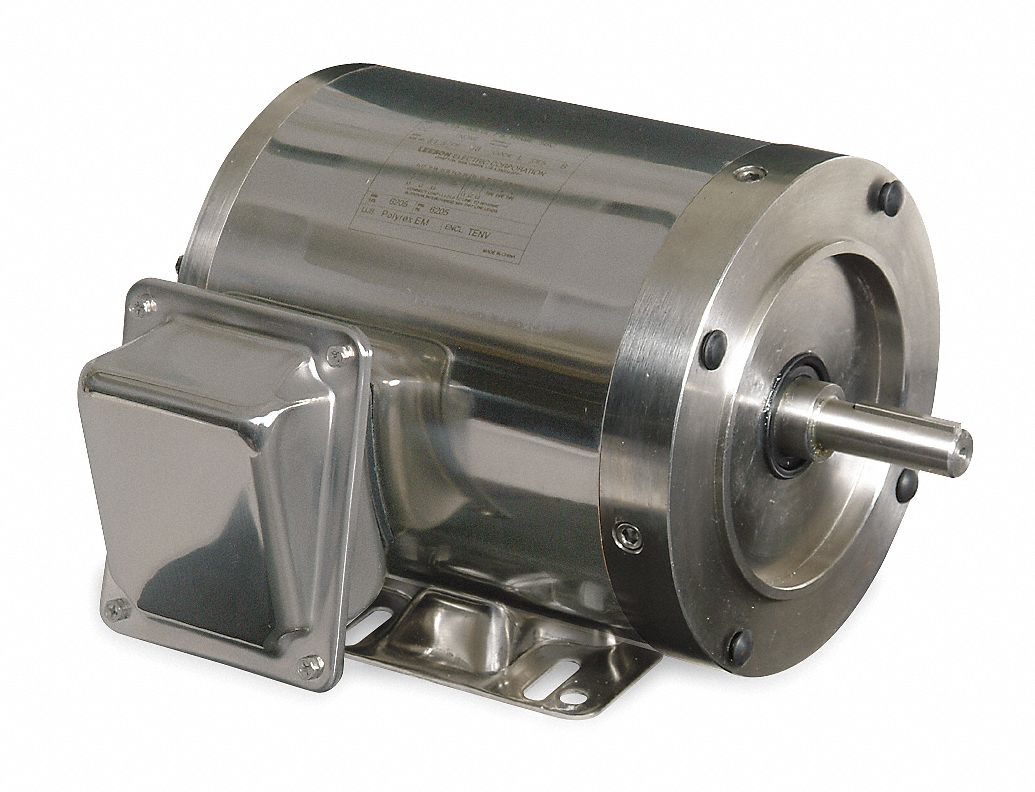

Washdown Motor, 3 Ph, TENV, 1 HP, 1740 rpm

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Washdown Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Nonventilated
HP		1
Nameplate RPM		1740
NEMA/IEC Frame		56HC
Frame		56HC
Rotation		CW/CCW
Voltage		208-230/460
Full Load Amps		3.1-3.0/1.5
Phase		3
Hz		60
Mounting		Face/Base
Bearings		Ball
Frame Material		Stainless Steel
Thermal Protection		None
Service Factor		1.15
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Overall Length		11-7/16"
Insulation Class		F
RPM Range		1400-1800
Duty		Continuous
Shaft Material		300 Series Stainless Steel
Drain Plugs		4 Condensate Drains (at 3, 6, 9 and 12 O'clock) Plus 2 T-drains (1 Pre-installed Opposite Shaft End in 6 O'clock Position, the Other Loose in the Carton for Customer Installation at Low Point of Motor)
Endshields		300 Series Stainless Steel
Nominal Efficiency		81.5%
Footnotes		1
Standards		UL Component Recognized, CSA Certified, CE Compliant
