DAYTON Washdown Motor, 3 Ph, TEFC, 10 HP, 1765 rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Washdown Motor, 3-Phase, 10 HP, 1765 Nameplate RPM, Voltage 230/460, Phase 3, 215TC Frame, Totally Enclosed Fan-Cooled, Full Load Amps 26.8/13.4, 60/50 Hz, Face/Base Mounting, Thermal Protection None, F Insulation Class, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Rotation, Overall Length 19-3/4 In., Shaft Dia. 1-3/8 In., Shaft Length 3-3/8 In., Body Dia. 9-5/8 In., Length Less Shaft 16-1/2 In., Continuous Duty, Frame Material White Epoxy Coated Steel

Grainger Item #	5XAV1
Price (ea.)	$1,640.00
Brand	DAYTON
Mfr. Model #	5XAV1
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	174.0
Availability	Typically in Stock
Catalog Page No.	33
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

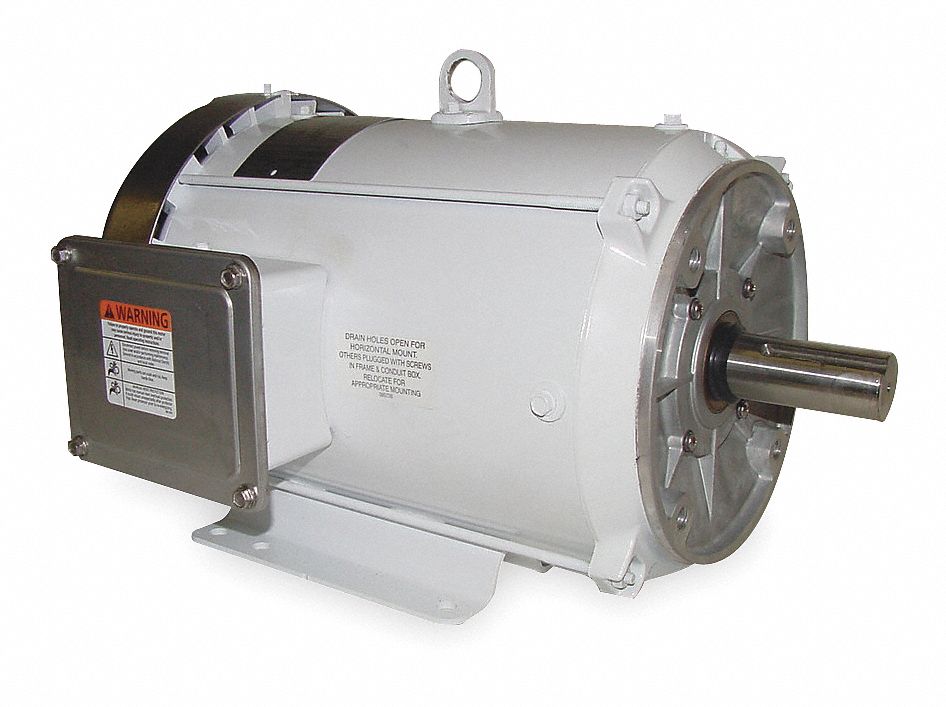

Washdown Motor, 3 Ph, TEFC, 10 HP, 1765 rpm

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Washdown Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		10
Nameplate RPM		1765
NEMA/IEC Frame		215TC
Frame		215TC
NEMA Design		B
Rotation		CW/CCW
Voltage		230/460
Full Load Amps		26.8/13.4
Phase		3
Hz		60/50
Mounting		Face/Base
Bearings		Ball
Frame Material		White Epoxy Coated Steel
Thermal Protection		None
Service Factor		1.15
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		1-3/8"
Shaft Length		3-3/8"
Body Dia.		9-5/8"
Length Less Shaft		16-1/2"
Overall Length		19-3/4"
Insulation Class		F
RPM Range		1400-1800
Duty		Continuous
Shaft Material		303 Stainless Steel
Conduit Box		Cast Aluminum with Buna N Gasketed Cover
Drain Plugs		(9) Total - (3) Shaft End, (4) Lead End, (2) In Conduit Box
Endshields		Cast Aluminum
Nominal Efficiency		91.7%
Application		High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Footnotes		8, 11
Standards		UL Recognized (E47479), CSA Certified (LR225293), USDA Approved
