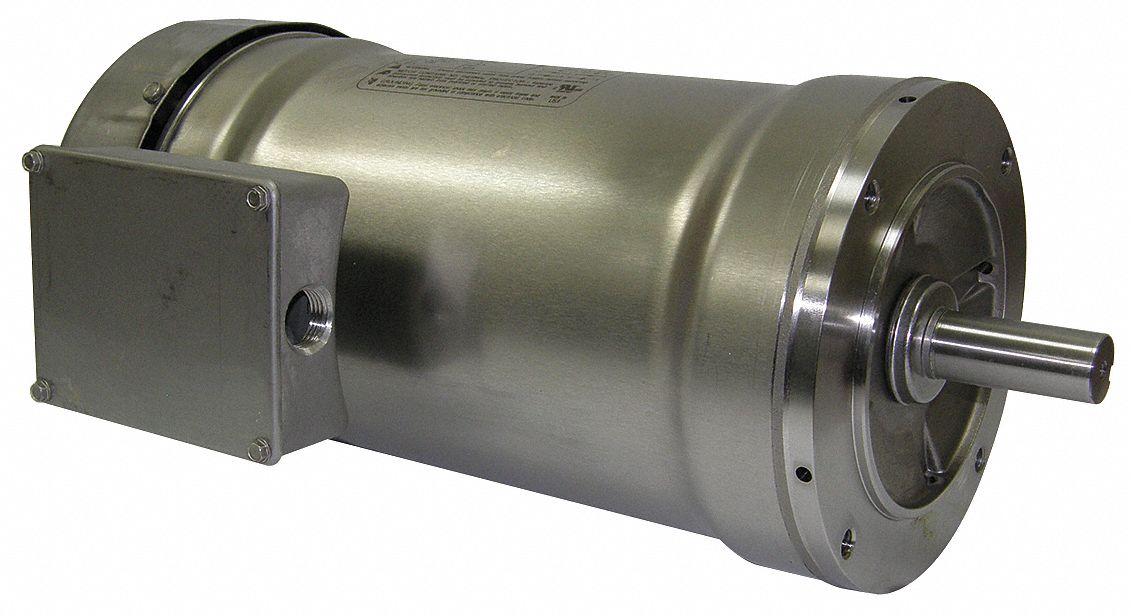

DAYTON Washdown Mtr, 3 Ph, TEFC, 1-1/2 HP, 3450 rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Washdown Motor, 3-Phase, 1-1/2 HP, 3450 Nameplate RPM, Voltage 208-230/460, Phase 3, 56C Frame, Totally Enclosed Fan-Cooled, Full Load Amps 4.7-4.6/2.3, 60/50 Hz, Face Mounting, Thermal Protection None, F Insulation Class, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Rotation, Overall Length 13-1/4 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In.Length Less Shaft 11-3/8 In., Continuous Duty, Frame Material Stainless Steel, Shaft Material 17-4 PH Stainless Steel

Grainger Item #	5NUN3
Price (ea.)	$1,308.00
Brand	DAYTON
Mfr. Model #	5NUN3
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	47.15
Availability	Typically in Stock
Catalog Page No.	35
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Washdown Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		1-1/2
Nameplate RPM		3450
NEMA/IEC Frame		56C
Frame		56C
NEMA Design		B
Rotation		CW/CCW
Voltage		208-230/460
Full Load Amps		4.7-4.6/2.3
Phase		3
Hz		60/50
Mounting		Face
Bearings		Ball
Frame Material		Stainless Steel
Thermal Protection		None
Service Factor		1.15
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Length Less Shaft		11-3/8"
Overall Length		13-1/4"
Insulation Class		F
RPM Range		2350-3600
Duty		Continuous
Shaft Material		17-4 PH Stainless Steel
Conduit Box		304 Stainless Steel with Gasket
Drain Plugs		(4) Per Corner of Conduit Box
Endshields		304 Stainless Steel
Nominal Efficiency		83.5%
Application		Highly Corrosive Wet, Washdown Applications, Including Food Processing, Pharmaceutical Production, Corrosive Chemical Processing, Marine, Outdoor Duty and Other Extreme Operating Conditions
Footnotes		19, 20
Includes		Splice Kit
Standards		UL Recognized (E47479)
