DAYTON Washdown Motor, 3 Ph, TEFC, 2 HP, 3480 rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Washdown Motor, 3-Phase, 2 HP, 3480 Nameplate RPM, Voltage 208-230/460, Phase 3, 145TC Frame, Totally Enclosed Fan-Cooled, Full Load Amps 4.9-4.8/2.4, 60/50 Hz, Face/Base Mounting, Thermal Protection None, F Insulation Class, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Rotation, Overall Length 13-13/16 In., Shaft Dia. 7/8 In., Shaft Length 2-1/4 In., Body Dia. 6-15/32 In., Length Less Shaft 11-9/16 In., Continuous Duty, Frame Material Stainless Steel

Grainger Item #	4GPT3
Price (ea.)	$840.00
Brand	DAYTON
Mfr. Model #	4GPT3
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	50.87
Availability	Typically in Stock
Catalog Page No.	34
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

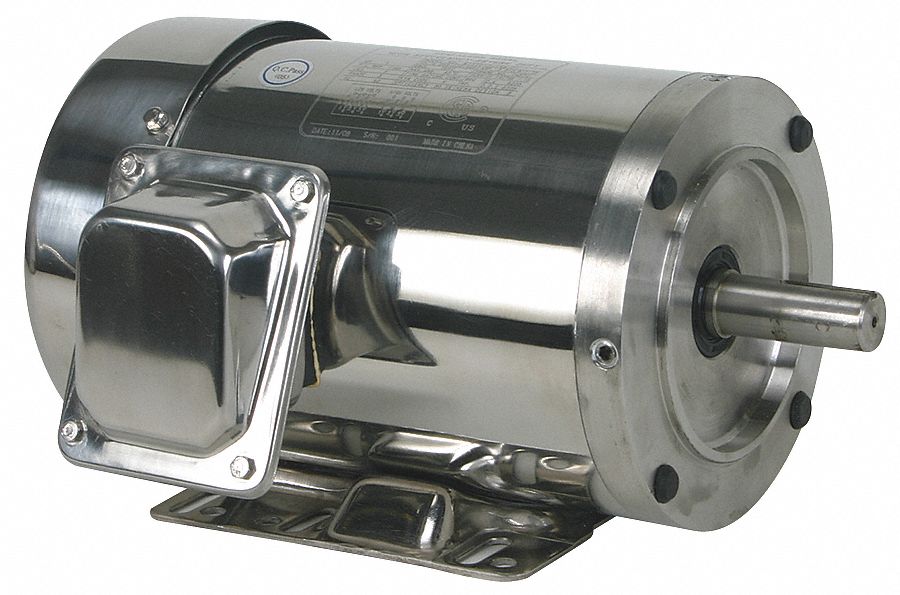

Washdown Motor, 3 Ph, TEFC, 2 HP, 3480 rpm

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Washdown Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		2
Nameplate RPM		3480
NEMA/IEC Frame		145TC
Frame		145TC
NEMA Design		B
Rotation		CW/CCW
Voltage		208-230/460
Full Load Amps		4.9-4.8/2.4
Phase		3
Hz		60/50
Mounting		Face/Base
Bearings		Ball
Frame Material		Stainless Steel
Thermal Protection		None
Service Factor		1.15
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		7/8"
Shaft Length		2-1/4"
Body Dia.		6-15/32"
Length Less Shaft		11-9/16"
Overall Length		13-13/16"
Insulation Class		F
RPM Range		2350-3600
Duty		Continuous
Shaft Material		300 Series Stainless Steel
Conduit Box		Split Clam Shell w/Rubber Gasket
Drain Plugs		4 Condensate Drains (at 3, 6, 9 and 12 O'clock) in Both Endshields Plus 2 T-Drains (1 Pre-Installed Opposite Shaft End at 6 O'clock, the Other Loose in the Carton for Customer Installation at Lowest Point of Motor)
Endshields		300 Series Stainless Steel
Nominal Efficiency		85.5%
Application		Used Where Premium Efficiency Motor is Required
Footnotes		2
Includes		Shaft Key, Protective Shaft Sleeve and 2 Stainless Steel T-Drain Plugs
Standards		UL Recognized (E47479), CSA Certified (225293), CE
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition		NEMA Premium Rated
