DAYTON Washdown Motor, 3 Ph, TEFC, 5 HP, 3525 rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Washdown Motor, 3-Phase, 5 HP, 3525 Nameplate RPM, Voltage 208-230/460, Phase 3, 184TC Frame, Totally Enclosed Fan-Cooled, Full Load Amps 14.0-12.5/6.2, 60 Hz, Face/Base Mounting, Thermal Protection None, F Insulation Class, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Rotation, Overall Length 16-15/16 In., Shaft Dia. 1-1/8 In., Shaft Length 2-3/4 In., Body Dia. 9 In., Length Less Shaft 14-3/8 In., Continuous Duty, Frame Material Stainless Steel

Grainger Item #	2RKY8
Price (ea.)	$1,623.00
Brand	DAYTON
Mfr. Model #	2RKY8
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	150.0
Availability	Typically in Stock
Catalog Page No.	34
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

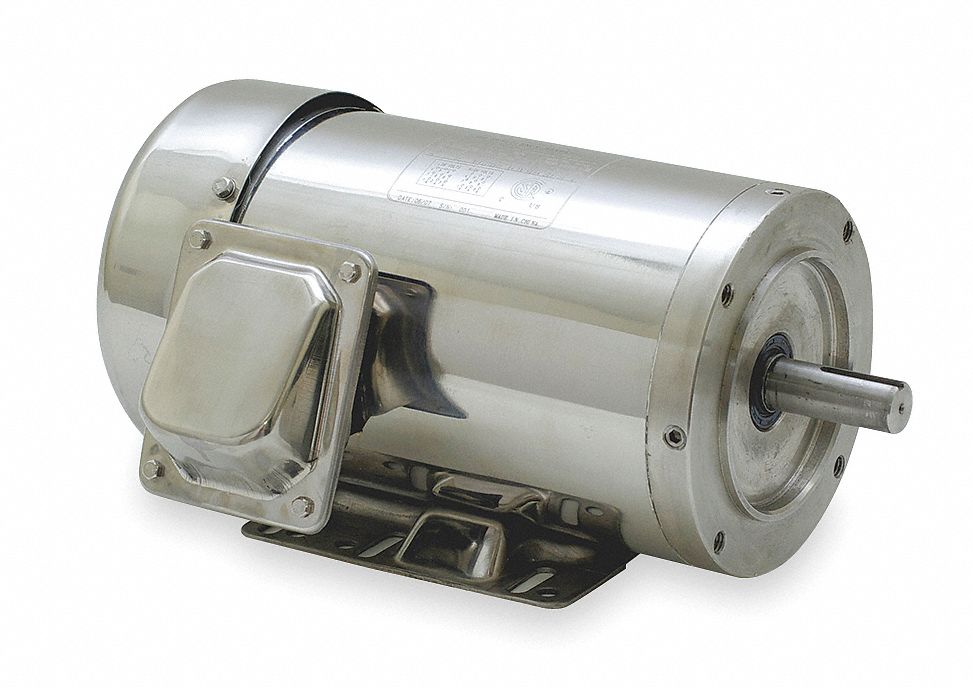

Washdown Motor, 3 Ph, TEFC, 5 HP, 3525 rpm

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Washdown Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		5
Nameplate RPM		3525
NEMA/IEC Frame		184TC
Frame		184TC
NEMA Design		B
Rotation		CW/CCW
Voltage		208-230/460
Full Load Amps		14.0-12.5/6.2
Phase		3
Hz		60
Mounting		Face/Base
Bearings		Ball
Frame Material		Stainless Steel
Thermal Protection		None
Service Factor		1.15
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		1-1/8"
Shaft Length		2-3/4"
Body Dia.		9"
Length Less Shaft		14-3/8"
Overall Length		16-15/16"
Insulation Class		F
RPM Range		2350-3600
Duty		Continuous
Shaft Material		Stainless Steel
Conduit Box		Split
Drain Plugs		4 per Endshield
Nominal Efficiency		88.5%
Footnotes		3
