DAYTON Washdown Motor, 3 Ph, TEFC, 1 HP, 3450 rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Washdown Motor, 3-Phase, 1 HP, 3450 Nameplate RPM, Voltage 208-230/460, Phase 3, 56J Frame, Totally Enclosed Fan-Cooled, Full Load Amps 3.4-3.2/1.6, 60 Hz, Face Mounting, Thermal Protection None, F Insulation Class, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Rotation, Overall Length 11-1/8 In., Shaft Dia. 5/8 In., Shaft Length 2-7/16 In., Body Dia. 6-1/2 In., Length Less Shaft 8-3/4 In., Continuous Duty, Frame Material White Epoxy Coated Steel

Grainger Item #	2LHP4
Price (ea.)	$520.50
Brand	DAYTON
Mfr. Model #	2LHP4
UNSPSC #	26101603
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	24.27
Availability	Typically in Stock
Catalog Page No.	32
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

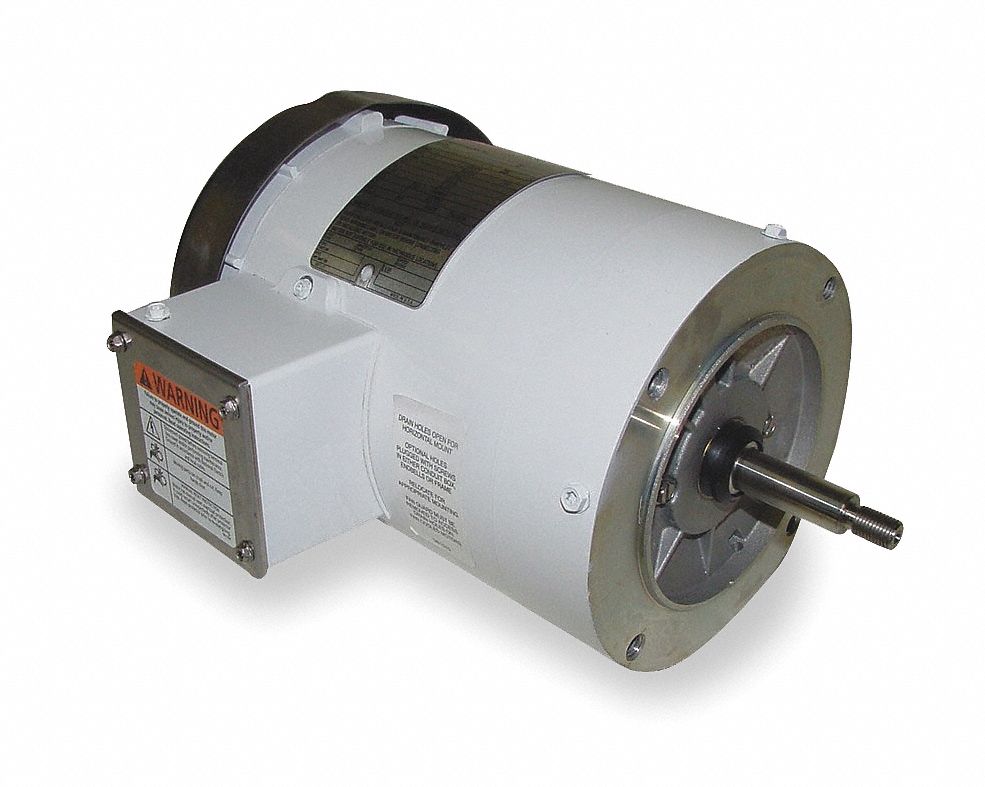

Washdown Motor, 3 Ph, TEFC, 1 HP, 3450 rpm

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Washdown Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		1
Nameplate RPM		3450
NEMA/IEC Frame		56J
Frame		56J
NEMA Design		B
Rotation		CW/CCW
Voltage		208-230/460
Full Load Amps		3.4-3.2/1.6
Phase		3
Hz		60
Mounting		Face
Bearings		Ball
Frame Material		White Epoxy Coated Steel
Thermal Protection		None
Service Factor		1.15
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		2-7/16"
Body Dia.		6-1/2"
Length Less Shaft		8-3/4"
Overall Length		11-1/8"
Insulation Class		F
RPM Range		2350-3600
Duty		Continuous
Shaft Material		303 Stainless Steel
Conduit Box		Cast Aluminum with Buna N Gasketed Cover
Drain Plugs		(10) Total - (4) Each End and (2) In Conduit Box
Endshields		Cast Aluminum
Nominal Efficiency		77.0%
Application		Used in Jet Pump Applications
Standards		UL Recognized (E47479), CSA Certified (LR225293), USDA Approved
