DAYTON Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Washdown Motor, 3-Phase, 1/2 HP, 1725 Nameplate RPM, Voltage 208-230/460, Phase 3, 56C Frame, Totally Enclosed Nonventilated, Full Load Amps 2.0-1.8/0.9, 60 Hz, Face Mounting, Thermal Protection None, F Insulation Class, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Rotation, Overall Length 10-1/16 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Body Dia. 6-1/2 In., Length Less Shaft 8-3/16 In., Continuous Duty, Frame Material Epoxy Coated Steel

Grainger Item #	1TTB6
Price (ea.)	$537.00
Brand	DAYTON
Mfr. Model #	1TTB6
UNSPSC #	26101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	25.75
Availability	Typically in Stock
Catalog Page No.	33
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

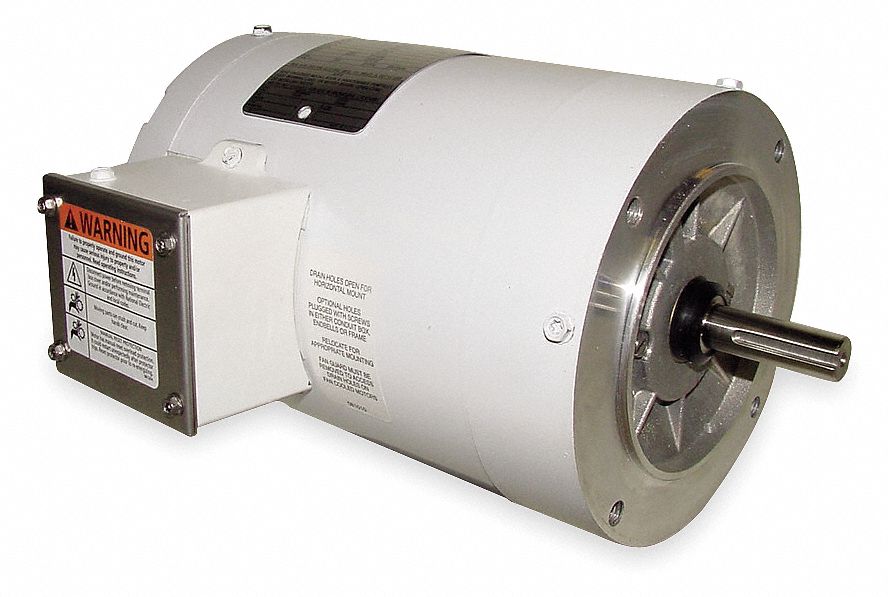

Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Washdown Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Nonventilated
HP		1/2
Nameplate RPM		1725
NEMA/IEC Frame		56C
Frame		56C
NEMA Design		B
Rotation		CW/CCW
Voltage		208-230/460
Full Load Amps		2.0-1.8/0.9
Phase		3
Hz		60
Mounting		Face
Bearings		Ball
Frame Material		Epoxy Coated Steel
Thermal Protection		None
Service Factor		1.15
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Body Dia.		6-1/2"
Length Less Shaft		8-3/16"
Overall Length		10-1/16"
Insulation Class		F
RPM Range		1400-1800
Duty		Continuous
Shaft Material		303 Stainless Steel
Conduit Box		Cast Oversized Gasketed
Drain Plugs		(10) Total - (4) Each End and (2) In Conduit Box
Nominal Efficiency		78.5%
Standards		UL Recognized (E47479), CSA Certified (LR63596), USDA Approved
