DAYTON Washdown Motor, 3 Ph, TEFC, 2 HP, 3450 rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Washdown Motor, 3-Phase, 2 HP, 3450 Nameplate RPM, Voltage 208-230/460, Phase 3, 56HC Frame, Totally Enclosed Fan-Cooled, Full Load Amps 5.8-5.6/2.8, 60 Hz, Face/Base Mounting, Thermal Protection None, F Insulation Class, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Rotation, Overall Length 12-5/8 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In.Length Less Shaft 10-3/4 In., Continuous Duty, Frame Material Epoxy Coated Steel, Shaft Material 303 Stainless Steel

Grainger Item #	1TRX3
Price (ea.)	$519.50
Brand	DAYTON
Mfr. Model #	1TRX3
UNSPSC #	26101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	35.75
Availability	Typically in Stock
Catalog Page No.	33
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

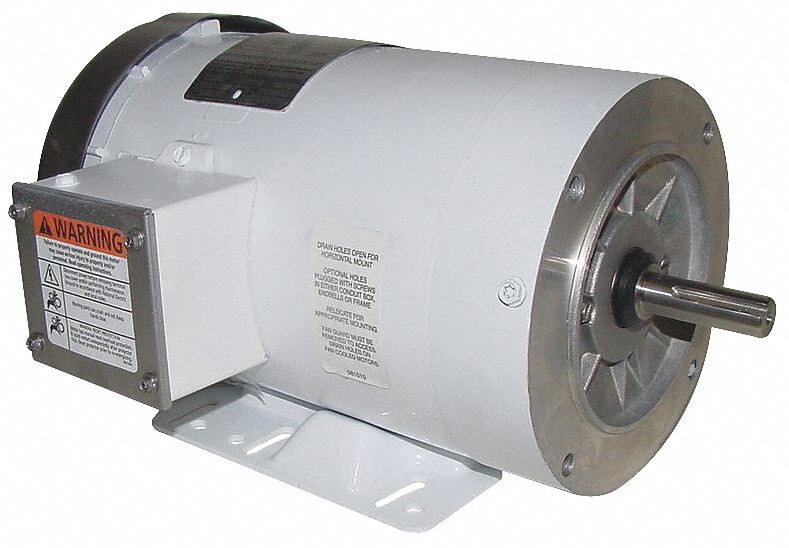

Washdown Motor, 3 Ph, TEFC, 2 HP, 3450 rpm

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Washdown Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		2
Nameplate RPM		3450
NEMA/IEC Frame		56HC
Frame		56HC
NEMA Design		B
Rotation		CW/CCW
Voltage		208-230/460
Full Load Amps		5.8-5.6/2.8
Phase		3
Hz		60
Mounting		Face/Base
Bearings		Ball
Frame Material		Epoxy Coated Steel
Thermal Protection		None
Service Factor		1.15
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Length Less Shaft		10-3/4"
Overall Length		12-5/8"
Insulation Class		F
RPM Range		2350-3600
Duty		Continuous
Shaft Material		303 Stainless Steel
Conduit Box		Cast Oversized Gasketed
Drain Plugs		(10) Total - (4) Each End and (2) In Conduit Box
Nominal Efficiency		82.5%
Standards		UL Recognized (E47479), CSA Certified (LR63596), USDA Approved
