DAYTON Washdown Mtr, Cap Strt, TEFC, 3/4hp, 1745rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Washdown Motor, Capacitor-Start, 3/4 HP, 1745 Nameplate RPM, Voltage 115/208-230, Phase 1, 56HC Frame, Totally Enclosed Fan-Cooled, Full Load Amps 7.6/4.0-3.8, 60 Hz, Face/Base Mounting, Thermal Protection None, F Insulation Class, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Rotation, Overall Length 13-1/8 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Body Dia. 6-1/2 In., Length Less Shaft 11-1/4 In., Continuous Duty, Frame Material Stainless Steel

Grainger Item #	11G253
Price (ea.)	$647.00
Brand	DAYTON
Mfr. Model #	11G253
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	39.0
Availability	Typically in Stock
Catalog Page No.	34
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

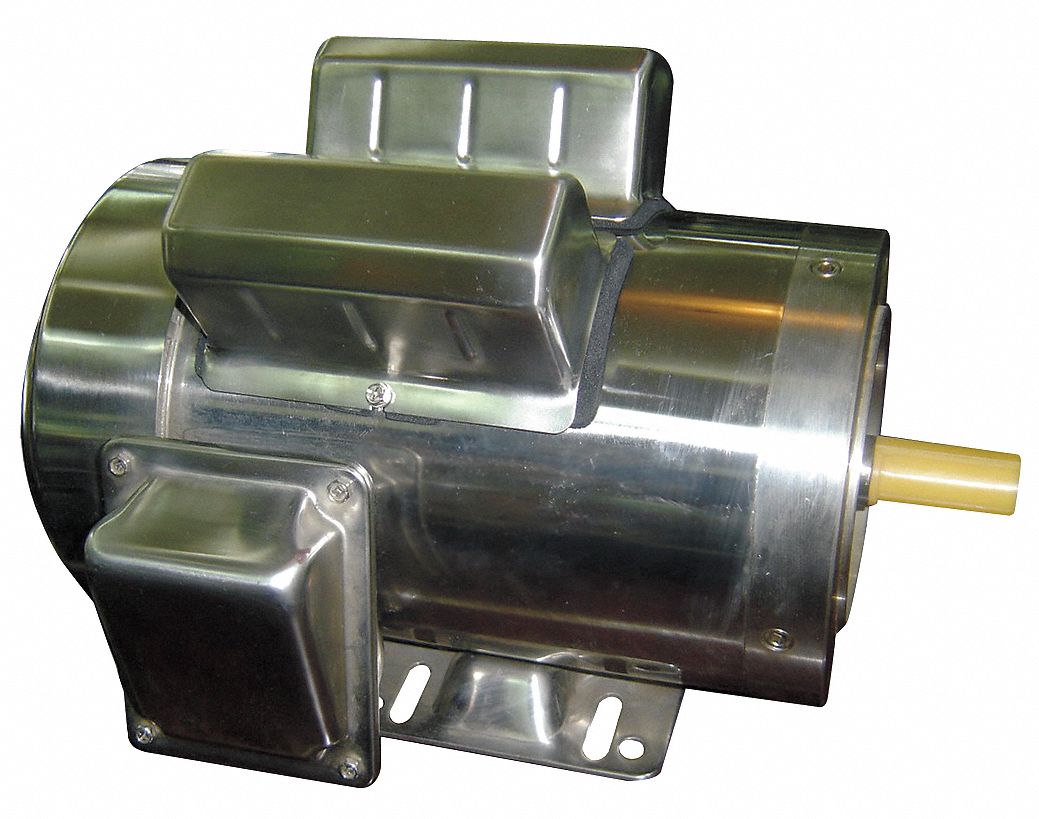

Washdown Mtr, Cap Strt, TEFC, 3/4hp, 1745rpm

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Washdown Motor
Motor Type		Capacitor-Start
Enclosure		Totally Enclosed Fan-Cooled
HP		3/4
Nameplate RPM		1745
NEMA/IEC Frame		56HC
Frame		56HC
NEMA Design		Yes
Rotation		CW/CCW
Voltage		115/208-230
Full Load Amps		7.6/4.0-3.8
Phase		1
Hz		60
Mounting		Face/Base
Bearings		Ball
Frame Material		Stainless Steel
Thermal Protection		None
Service Factor		1.15
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Body Dia.		6-1/2"
Length Less Shaft		11-1/4"
Overall Length		13-1/8"
Insulation Class		F
RPM Range		1400-1800
Duty		Continuous
Shaft Material		Stainless Steel
Conduit Box		Yes
Drain Plugs		12,3,6,9 O'clock on SE and OSE Endshields
Endshields		Stainless Steel
Nominal Efficiency		78.0%
Application		Food Processing, Chemical Processing, and Beverage Industries
Includes		(1) T-Drain Valve and (1) Plug and T-Drain
Standards		UL Recognized (E37403), CSA Certified
