Pumps
>
Flexible Impeller Pumps
>
Flexible Impeller Pedestal Pumps

DAYTON Utility Pump 12VDC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

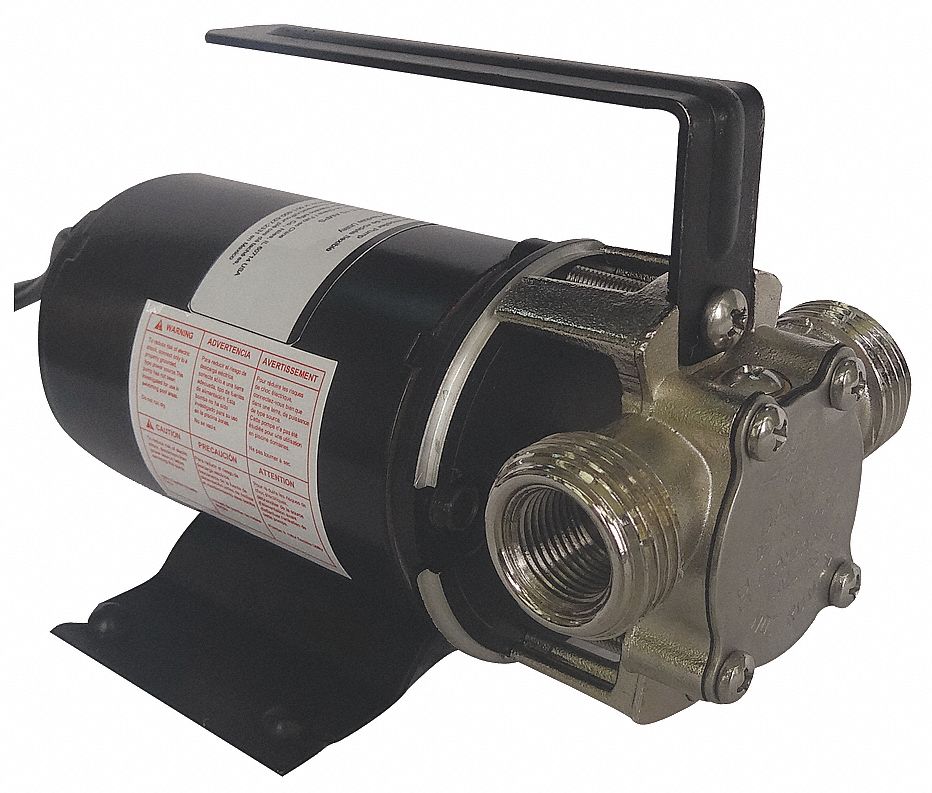

Utility Pump, Compact Flexible Impeller, 1/10 HP, Voltage 12VDC, 6.5 to 10 Amps, Motor Enclosure Open, Intermittent Duty, Motor Type DC, Inlet/Outlet (In.) 3/8 ID; 3/4 OD Garden Hose, Body Material Nickel-Plated Brass, GPM of Water @ 5 Ft. of Head 4.5, GPM of Water @ 10 Ft. of Head 4.18, GPM of Water @ 20 Ft. of Head 3.36, GPM of Water @ 30 Ft. of Head 2.5, GPM of Water @ 40 Ft. of Head 1.6, Cord 7 Ft, Buna-N Impeller, GPH of Water @ 1 Ft. of Head 300, GPH of Water @ 5 Total Ft. of Head 258

Grainger Item #	5UXL8
Price (ea.)	$88.90
Brand	DAYTON
Mfr. Model #	5UXL8
UNSPSC #	40151504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	4.35
Availability	Typically in Stock
Catalog Page No.	4050
Country of Origin (Country of Origin is subject to change.)	China
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $16.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Utility Pump
Type		Compact Flexible Impeller
HP		1/10
Voltage		12VDC
Amps AC		6.5 to 10
Motor Enclosure		Open
Duty		Intermittent
Motor Type		DC
Inlet/Outlet (In.)		3/8 ID; 3/4 OD Garden Hose
Body Material		Nickel-Plated Brass
GPM of Water @ 5 Ft. of Head		4.5
GPM of Water @ 10 Ft. of Head		4.18
GPM of Water @ 20 Ft. of Head		3.36
GPM of Water @ 30 Ft. of Head		2.5
GPM of Water @ 40 Ft. of Head		1.6
Max. Head (Ft.)		46
Max. Suction Lift (Ft.)		7
Cord		7 Ft
Max. Liquid Temp. (F)		140
Impeller		Buna-N
Max. Pressure (PSI)		19.9
Shaft Dia. (In.)		0.315
GPH of Water @ 1 Ft. of Head		300
GPH of Water @ 5 Total Ft. of Head		258
GPH of Water @ 10 Ft. of Head		240
GPH of Water @ 20 Ft. of Head		202
GPH of Water @ 30 Total Ft. of Head		150
GPH of Water @ 40 Total Ft. of Head		96
Pumps Up To (Ft.)		46
Self-Priming		Yes
RPM		5000
Seals		Buna N Radial Lip
Bearings		Ball
Shaft Material		Stainless Steel
Application		Use to Empty Waterbeds, Drain Water Heaters or Aquariums, Pump Out Basement, Transfer Water to RV, Pump Boat Bilges, Pump Out Stock Tanks or Water Transfer. For Use With Nonflammable Liquids
Length (In.)		6-1/8
Width (In.)		4
Height (In.)		4-3/16
Includes		Two Impellers, Gasket

Other Popular Terms for this Product

• Positive Displacement Pumps (594)

• Pedestal Pumps (221)

• Flexible Impeller Pumps (48)

Read Reviews
Write Reviews
Ask And Answer

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Optional Accessories

More Accessories

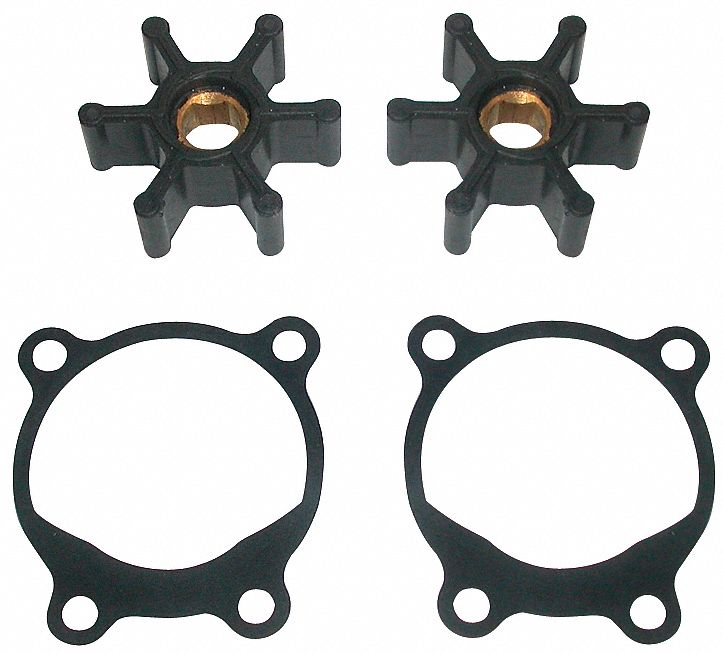

Pump Repair Kit

Brand:

DAYTON

Grainger Item #:

5UXN2

Price (ea.):

$14.06

4 (out of 5)

Read all Reviews (1)

	Item #	Description	Brand Mfr. Model #	Availability	Price
	5UXN0	Utility Pump 12VDC >More Details... Country of Origin: China	DAYTON 5UXN0	Typically in Stock	$128.65
	Be the First to Write a Review


Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.

Item #	Description	Brand Mfr. Model #	Availability	Price
5UXN2	Pump Repair Kit >More Details... Country of Origin: China	DAYTON 5UXN2	Typically in Stock	$14.06
