Pumps
>
Centrifugal Pumps
>
Self Priming Portable Utility

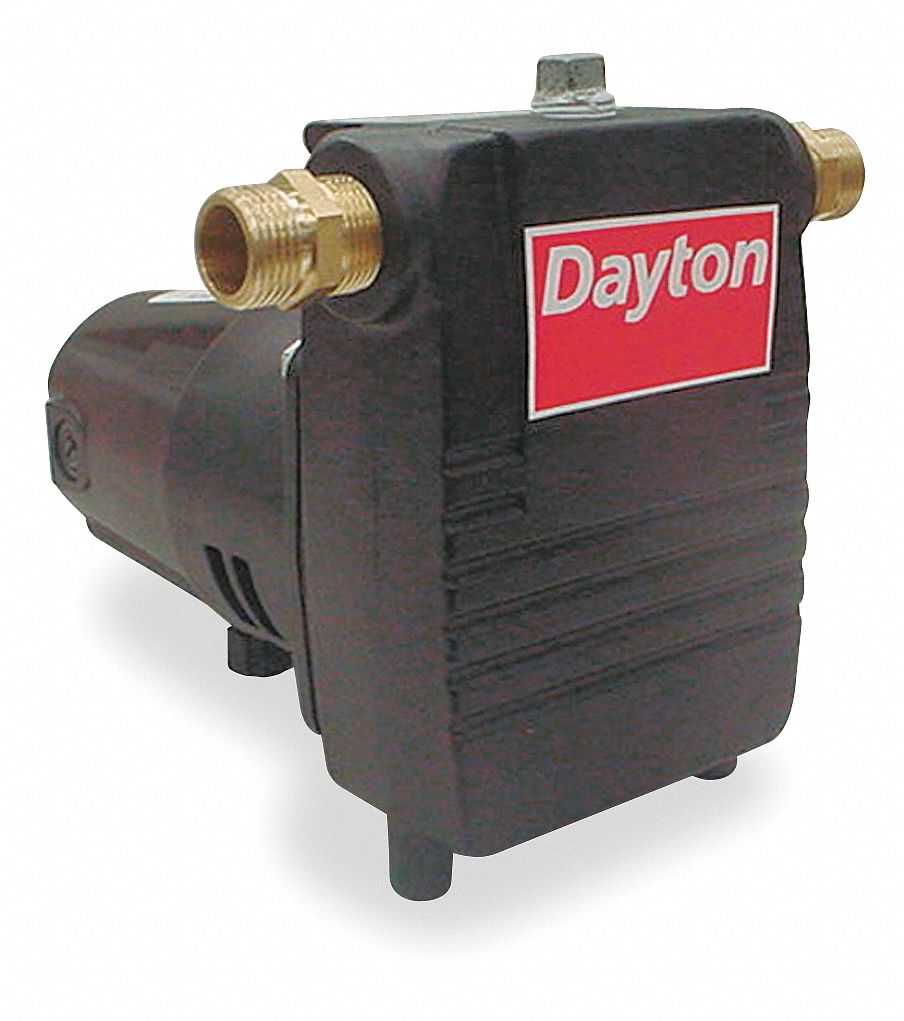

DAYTON Pump, Utility, 1/2 HP

| Write a Review
| Read all Reviews(1)
| Read all Ask & Answer

Utility Pump, Portable, Self-Priming, 1/2 HP, 1 Phase, Voltage 115, 8.0 Amps, 60 Hz, Inlet 3/4 NPT In., Outlet 3/4 NPT In., Motor Enclosure ODP, 7000 RPM, Impeller Material Thermoplastic, Housing Material Cast Iron, Seal Type Mechanical, Suction Lift 15 Ft., Max. Head 101 Ft., Max. Pressure 44 PSI, Cord 10, Impeller Type Open, Max. Dia. Solids 3/8 In., Height 8 In., Length 9.5 In., Width 5.75 In.

Grainger Item #	4CB57
Price (ea.)	$213.50
Brand	DAYTON
Mfr. Model #	4CB57
UNSPSC #	40151510
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	14.5
Availability	Limited quantity available
Catalog Page No.	4050
Country of Origin (Country of Origin is subject to change.)	China
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Utility Pump
Type		Portable, Self-Priming
HP		1/2
Phase		1
Voltage		115
Amps		8.0
Hz		60
Inlet (In.)		3/4 NPT
Outlet (In.)		3/4 NPT
Motor Enclosure		ODP
RPM		7000
Motor Type		AC/DC Brush
Wetted Materials		Cast Iron, Plastic, Carbon, Ceramic, Buna N Galvanized Steel, Brass
Impeller Material		Thermoplastic
Housing Material		Cast Iron
Volute Material		Cast Iron
Shaft Material		Cold rolled steel
Screw Material		Zinc coated Steel
Seal Type		Mechanical
Seal Material		Carbon, Ceramic, Buna N
Seal Application		Nonflammable and Nonabrasive Liquids compatible with seal component materials up to 104F
Max. Liquid Temp. (F)		104
Suction Lift (Ft.)		15
GPH of Water @ 5 PSI		840
GPH of Water @ 10 PSI		828
GPH of Water @ 15 PSI		800
GPH of Water @ 20 PSI		714
GPH of Water @ 25 PSI		647
GPH of Water @ 30 PSI		571
GPH of Water @ 35 PSI		484
GPH of Water @ 40 PSI		270
GPM of Water @ 5 Ft. of Head		11.6
GPM of Water @ 10 Ft. of Head		11.2
GPM of Water @ 20 Ft. of Head		9.1
GPM of Water @ 40 Ft. of Head		3.7
Max. Head (Ft.)		101
Max. Pressure (PSI)		44
Cord		10 ft.
Best Efficiency GPM @ Head (Ft.)		N@A
Max. Specific Gravity		1.0
Max. Case Pressure (PSI)		44
Max. Fluid Viscosity		100 SSU
Impeller Type		Open
Bearing Type		Ball
Duty		Intermittent
Max. Dia. Solids (In.)		3/8
Manufacturers Warranty Length		1 Year
Application		Is designed for water transfer applications including emptying or filling tanks, lawn sprinkling, and drawing water from lakes and ponds.
For Use With		Nonflammable Liquids Compatible with Pump Materials
Height (In.)		8
Length (In.)		9.5
Width (In.)		5.75
Includes		1" MFNPT x 3/4" Garden hose adapters, Suction Strainer, 3 Rubber Feet for Pump
