Motors
>
Definite Purpose AC Motors
>
Universal AC/DC Motors

15hp, 5000 RPM, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Universal AC/DC MotorOpen, 1/15 HPNameplate RPM 5000, Voltage 115, 60 Hz, 1 Phase, 1.2 Full Load Amps, Mounting Hole, Mounting Holes (2) #10-32, O.C. Mounting 2-3/16 In., Thermal Protection None, Insulation Class A, 1.0 Service FactorMax. Ambient Temp. 40 Degrees C, CCW Rotation, Shaft Dia. 1/4 In., Shaft Length 3/4 In., Overall Length 5-3/16 In., Length Less Shaft 4-7/16 In., Body Dia. 2-3/4 In.Average Brush Life 300 hr.

Grainger Item #	2M277
Price (ea.)	$80.75
Brand	DAYTON
Mfr. Model #	2M277
UNSPSC #	26101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.1
Availability	Typically in Stock
Catalog Page No.	39
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $16.95 each.
Price shown may not reflect your price. Sign in or register.

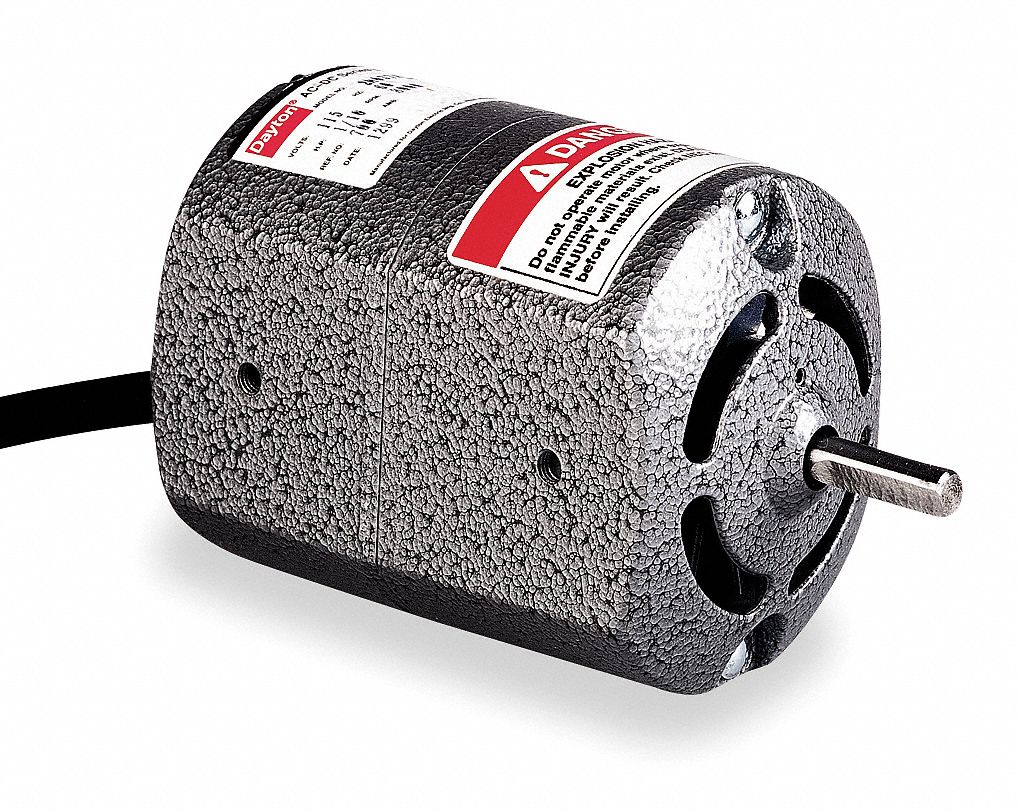

Universal AC/DC Mtr, 1/15hp, 5000 RPM, 115V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Universal AC/DC Motor
Enclosure		Open
HP		1/15
Nameplate RPM		5000
NEMA/IEC Frame		Nonstandard
Frame		Nonstandard
Voltage		115
Hz		60
Phase		1
Full Load Amps		1.2
Mounting		Hole
Mounting Holes		(2) #10-32
O.C. Mounting		2-3/16"
Thermal Protection		None
Insulation Class		A
Service Factor		1.0
Max. Ambient Temp.		40 Degrees C
Rotation		CCW
Shaft Dia.		1/4"
Shaft Length		3/4"
Overall Length		5-3/16"
Length Less Shaft		4-7/16"
Body Dia.		2-3/4"
Average Brush Life		300 hr.
Application		Used in Appliances, Power Tools, Outdoor Equipment, Food Processing Equipment, Gearmotors, Blowers, Pumps and Other Applications Where High Horsepower Output and Small Size are Required
RPM Range		5000-8000
