DAYTON Unit Bearing Motor, 1/83 HP, 1550 rpm, 115V

| Write a Review
| Read all Reviews(1)
| Read all Ask & Answer

Unit Bearing Motor, Shaded Pole, Totally Enclosed Air-Over, 1/83 HP, 1550 Nameplate RPM, NEMA/IEC Frame Nonstandard, Voltage 115, Hz 60/50, 1 Phase, Full Load Amps 0.62, Output Watts 9, Rear and Double Foot Mounting, Thermal Protection Auto, Insulation Class A, Service Factor 1.0, Sleeve Bearings, Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, Rotation CWLE, Overall Length 3-1/8 In., Shaft Type Threaded 1/4-20

Grainger Item #	4YFG2
Price (ea.)	$36.75
Brand	DAYTON
Mfr. Model #	4YFG2
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.42
Availability	Typically in Stock
Catalog Page No.	58
Country of Origin (Country of Origin is subject to change.)	South Korea

Qty.
Price shown may not reflect your price. Sign in or register.

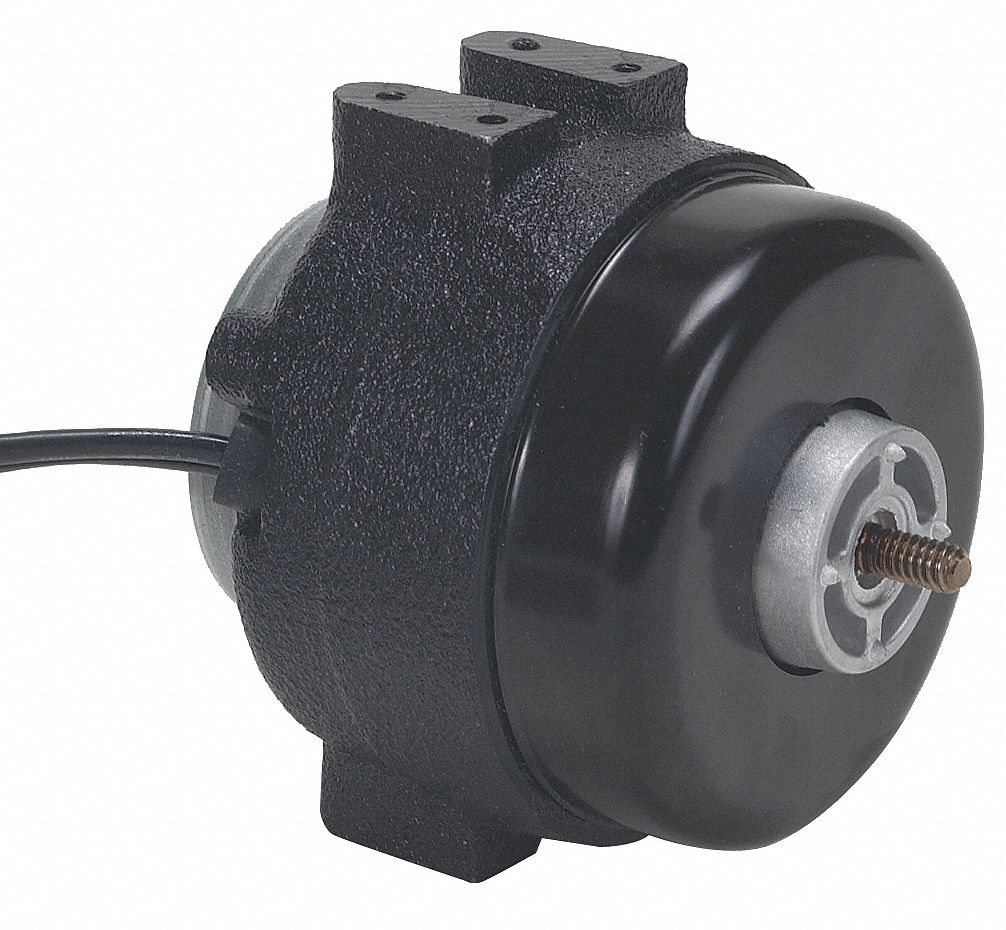

Unit Bearing Motor, 1/83 HP, 1550 rpm, 115V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Unit Bearing Motor
Motor Type		Shaded Pole
Enclosure		Totally Enclosed Air-Over
HP		1/83
Nameplate RPM		1550
NEMA/IEC Frame		Nonstandard
Frame		Nonstandard
Voltage		115
Hz		60/50
Phase		1
Full Load Amps		0.62
Output Watts		9
Mounting		Rear and Double Foot
Thermal Protection		Auto
Insulation Class		A
Service Factor		1.0
Bearings		Sleeve
Frame Material		Aluminum
Max. Ambient Temp.		40 Degrees C
Rotation		CWLE
Length Less Shaft		2-5/8"
Overall Length		3-1/8"
Shaft Type		Threaded 1/4-20
Shaft Dia.		1/4"
Shaft Length		1/2"
Shaft Orientation		Up, Down or Horizontal
Body Dia.		3-1/2"
Bolt Circle Dia.		2-13/16"
