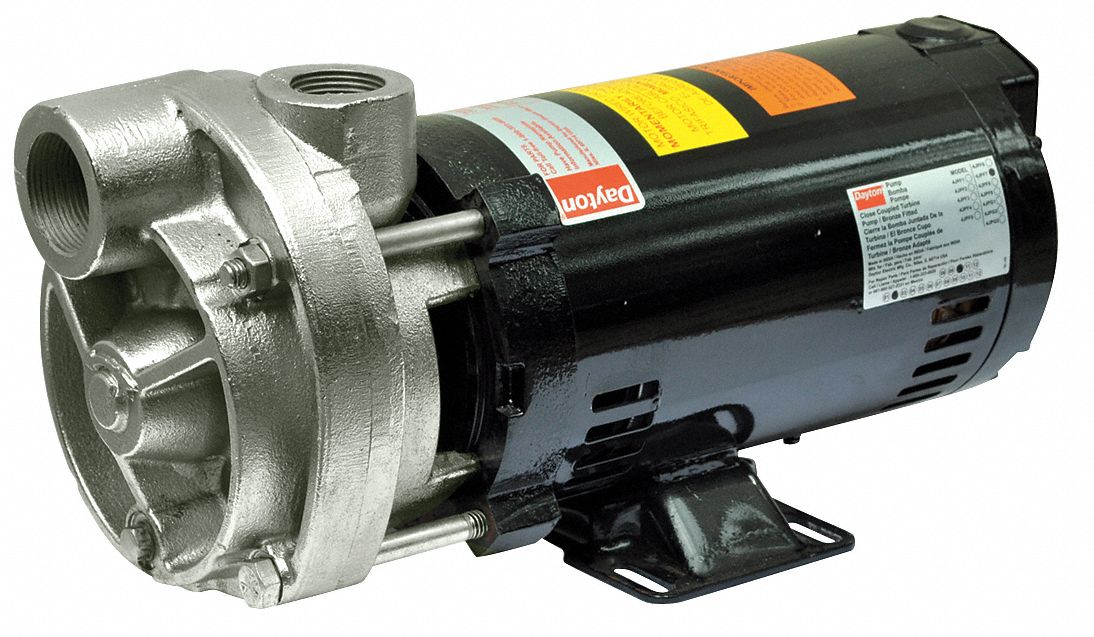

DAYTON Turbine Pump, 1 HP, 3 Ph, 3.2/1.6 Amp

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Turbine Pump, Close Coupled, 1 HP, 3 Phase, Voltage 208-230/460, 3.7-3.2/1.6 Amps, 60 Hz, Inlet 1 1/4 In., Outlet 1 In., Max. Pressure 168 PSI, Length 15 3/8 In., Height 7 3/4 In., Width 6 11/16 In.

Grainger Item #	4JPF7
Price (ea.)	$913.00
Brand	DAYTON
Mfr. Model #	4JPF7
UNSPSC #	40151526
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	47.09
Availability	Item ships within 4 business days from supplier
Catalog Page No.	4087
Country of Origin (Country of Origin is subject to change.)	India

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Turbine pump
Type		Centrifugal
HP		1
Phase		3
Voltage		208-230/460
Amps		3.7-3.2/1.6
Hz		60
Inlet (In.)		1-1/4
Outlet (In.)		1
Motor Enclosure		ODP
NEMA/IEC Frame		56J
Motor RPM		3450
Motor Type		3 Phase
Service Factor		1.4
Wetted Materials		Bronze, Cast Iron,Buna-N, Carbon, Ceramic and 316 Stainless Steel
Impeller Material		Bronze
Housing Material		Cast Iron with nickel plating
Volute Material		Cast Iron with Nickel Plating
Shaft Material		304 Stainless Steel
Shaft Size (In.)		5/8"
Screw Material		Zinc Plated
Seal Type		Mechanical Seal
Seal Material		Buna-N with Carbon and Ceramic Faces & 316 Stainless Steel Spring
Seal Application		Long Life When Not Run Dry or Pumping Abrasives
Max. Liquid Temp. (F)		-20 to 230 Degrees F
GPM @ 10 PSI		11.2
GPM @ 20 PSI		10.9
GPM @ 30 PSI		10.5
GPM @ 40 PSI		10.1
GPM @ 50 PSI		9.7
GPM @ 60 PSI		9.2
GPM @ 75 PSI		8.6
GPM @ 80 PSI		8.4
GPM @ 100 PSI		7.6
Max. Pressure (PSI)		120
Best Efficiency GPM @ Head (Ft.)		8.8 @ 75
Best Efficiency Range GPM @ Head (Ft.)		60 - 100 @ 9.2 - 7.6
Max. Specific Gravity		1
Max. Case Pressure (PSI)		200
Max. Fluid Viscosity		100 SSU
Inlet Pressure (PSI)		132
Impeller Type		Open
Bearing Type		Ball
Duty		Continuous
Drain Plug		Easily Accessible at Bottom
Agency Compliance		Motor is UL Recognized
Application		For boiler feed and condensate return service, low flow, pumping clean fluids, non flamable liquids compatable with pump component materials.
Length (In.)		15.35
Height (In.)		7.6
Width (In.)		6.7
Construction		Bronze impeller, Buna-N O-ring gaskets, mechanical seal with Buna-N and stainless steel parts and carbon / ceramic seats, cast iron cover and motor bracket with hard electroless nickel plating and replacable bronze shaft sleeve.
Includes		OIPM
