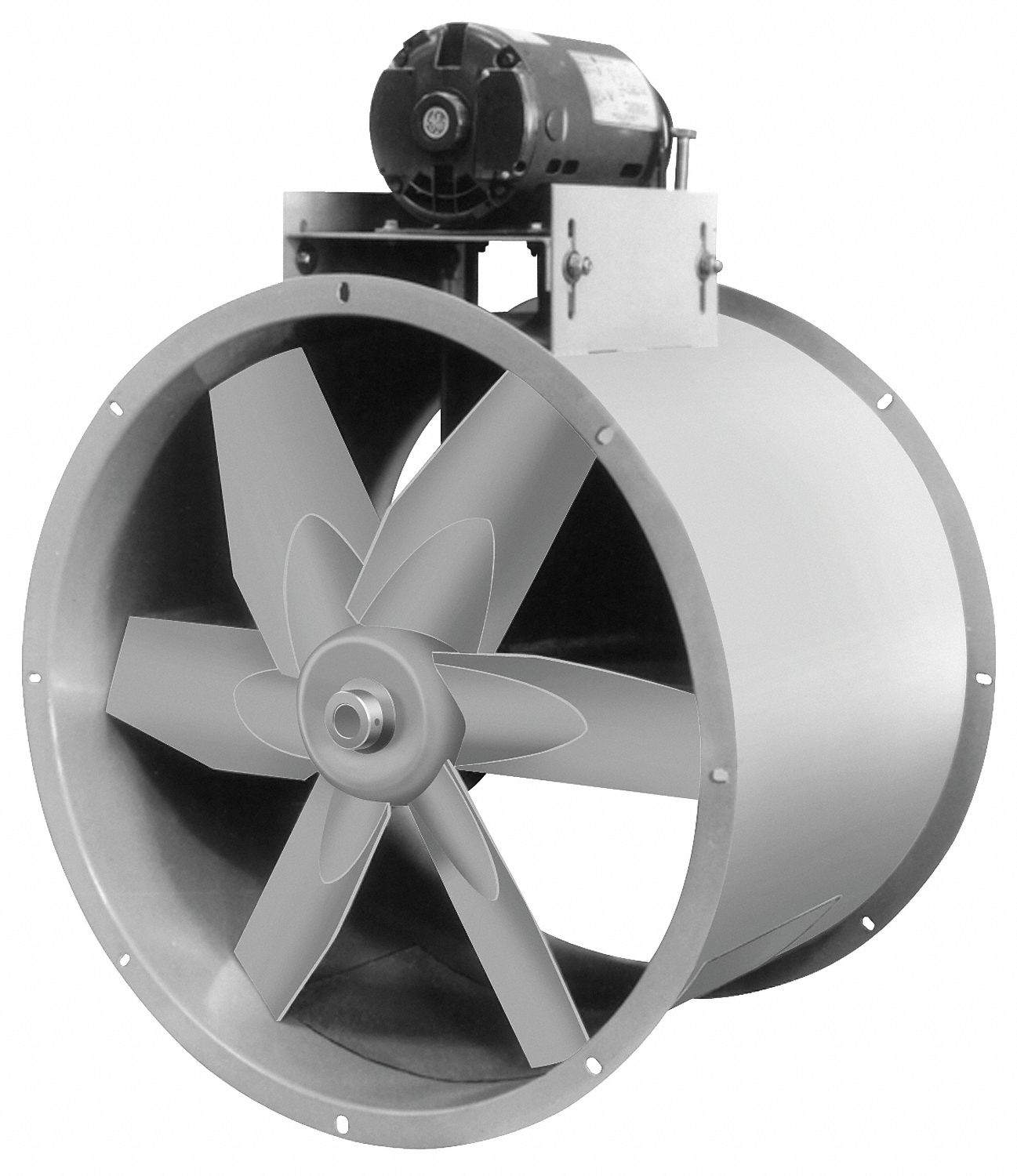

DAYTON Tubeaxial Fan w/ Drive Pkg, 208-230 V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Tubeaxial Fan, Drive Type Belt, Blade Dia. 30 In., 10955 CFM @ 0.000-In. SP, 10415 CFM @ 0.125-In. SP, 9815 CFM @ 0.250-In. SP, 8359 CFM @ 0.375-In. SP31 Sones @ 0.250-In. SP @ 5 Ft., Motor HP 1-1/2, Max. BHP 1.4, Fan RPM 1030, Motor Enclosure Totally Enclosed Fan Cooled, 1 Phase, Voltage 208-230, Max. Motor Height 10 In., Shaft Dia. 1-3/16 In., Number of Blades 6, Full Load Amps 8.7-8.4, Motor Type Hazardous Location, Capacitor-Start, Capacitor-Run

Grainger Item #	7J365
Price (ea.)	$3,651.00
Brand	DAYTON
Mfr. Model #	7J365
UNSPSC #	40101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	290.8
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Tubeaxial Fan
Drive Type		Belt
Blade Dia.		30"
CFM @ 0.000-In. SP		10955
CFM @ 0.125-In. SP		10415
CFM @ 0.250-In. SP		9815
CFM @ 0.375-In. SP		8359
Sones @ 0.250-In. SP @ 5 Ft.		31
Motor HP		1-1/2
Max. BHP		1.4
Fan RPM		1030
Motor Enclosure		Totally Enclosed Fan Cooled
Phase		1
Voltage		208-230
Max. Motor Height		10"
Shaft Dia.		1-3/16"
Number of Blades		6
Full Load Amps		8.7-8.4
Motor Type		Hazardous Location, Capacitor-Start, Capacitor-Run
Max. Inlet Temp.		500 Degrees F for 4 hr., 1000 Degrees F for 15 min.
Max. Ambient Temp.		200 Degrees F
Bearing Type		Ball
Mounting Position		Vertical/Horizontal
Housing Finish		Baked Enamel
Blade Material		Steel
Hz		60
Motor RPM		1725
Height		46-5/8"
Width		33-41/64"
Max. Depth		24"
Housing Dia. w/Mtg. Flange		33-5/8"
Housing Dia. w/o Mtg. Flange		30-1/2"
Inlet Dia.		30-5/8"
Outlet Dia.		30-5/8"
Bolt Circle Dia.		5/16"
Standards		AMCA
Includes		Belt Guard
Dimension A		33-5/8"
Dimension B		19-1/4"
Dimension C		30-1/2"
Dimension D		24"
Dimension E		5/16"
