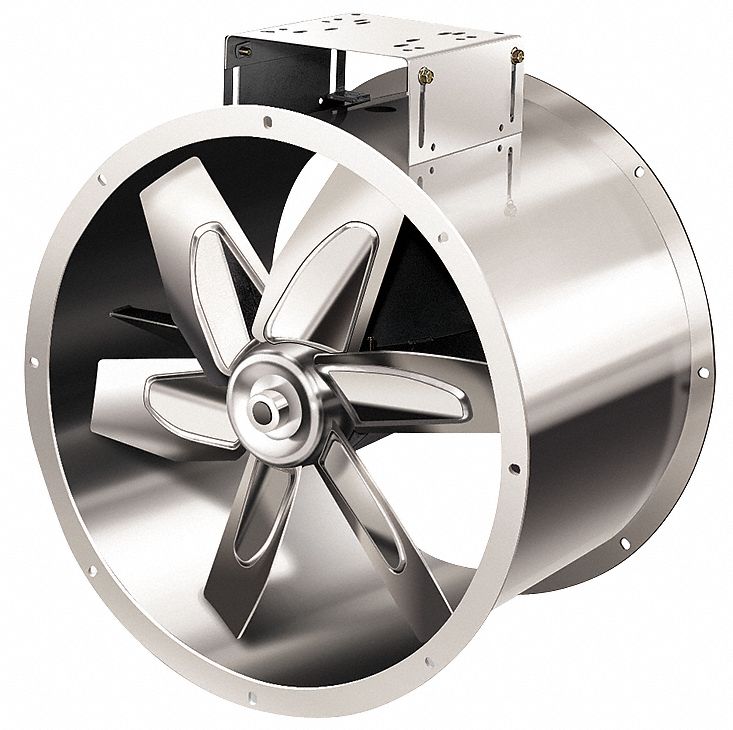

Tubeaxial Fan, Drive Type Belt, Blade Dia. 30 In., 14, 040 CFM @ 0.000-In. SP, 13, 630 CFM @ 0.125-In. SP, 13, 180 CFM @ 0.250-In. SP12, 220 CFM @ 0.500-In. SP, 11, 105 CFM @ 0.750-In. SP, 9740 CFM @ 1.000-In. SP52 Sones @ 0.250-In. SP @ 5 Ft., Motor HP 3, Max. BHP 2.91, Fan RPM 1320, Motor Enclosure Totally Enclosed Fan Cooled, 3 Phase, Voltage 208-230/460, Max. Motor Height 10 In., Shaft Dia. 1-3/16 In., Number of Blades 6, Full Load Amps 8.9-8/4.0, Motor Type 3-Phase
  • Grainger Item #7AG69
    Price (ea.)$5,297.00
    BrandDAYTON
    Mfr. Model #7AG69
    UNSPSC #40101604
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)255.8
    Availability Typically in Stock
    Catalog Page No.4464
    Country of Origin
    (Country of Origin is subject to change.)
    Not Available
  • Price shown may not reflect your price. Sign in or register.
ItemTubeaxial Fan
Drive TypeBelt
Blade Dia.30"
CFM @ 0.000-In. SP14,040
CFM @ 0.125-In. SP13,630
CFM @ 0.250-In. SP13,180
CFM @ 0.500-In. SP12,220
CFM @ 0.750-In. SP11,105
CFM @ 1.000-In. SP9740
Sones @ 0.250-In. SP @ 5 Ft.52
Motor HP3
Max. BHP2.91
Fan RPM1320
Motor EnclosureTotally Enclosed Fan Cooled
Phase3
Voltage208-230/460
Max. Motor Height10"
Shaft Dia.1-3/16"
Number of Blades6
Full Load Amps8.9-8/4.0
Motor Type3-Phase
Max. Inlet Temp.200 Degrees F
Max. Ambient Temp.104 Degrees F
Bearing TypeBall
Mounting PositionVertical/Horizontal
Housing FinishNatural
Blade MaterialStainless Steel
Hz60
Motor RPM1740
Height46-5/8"
Width33-5/8"
Max. Depth24"
Inlet Dia.30-5/8"
Outlet Dia.30-5/8"
Bolt Circle Dia.32-1/4"
Companion Flange Stock No.4ETG1
StandardsAMCA
IncludesBelt Guard
Dimension A33-5/8"
Dimension B19-1/4"
Dimension C30-1/2"
Dimension D24"
Dimension E7/16"


Optional Accessories

More Accessories

Brand:

DAYTON

Grainger Item #:

4ETG1

Price (ea.):

$524.50
