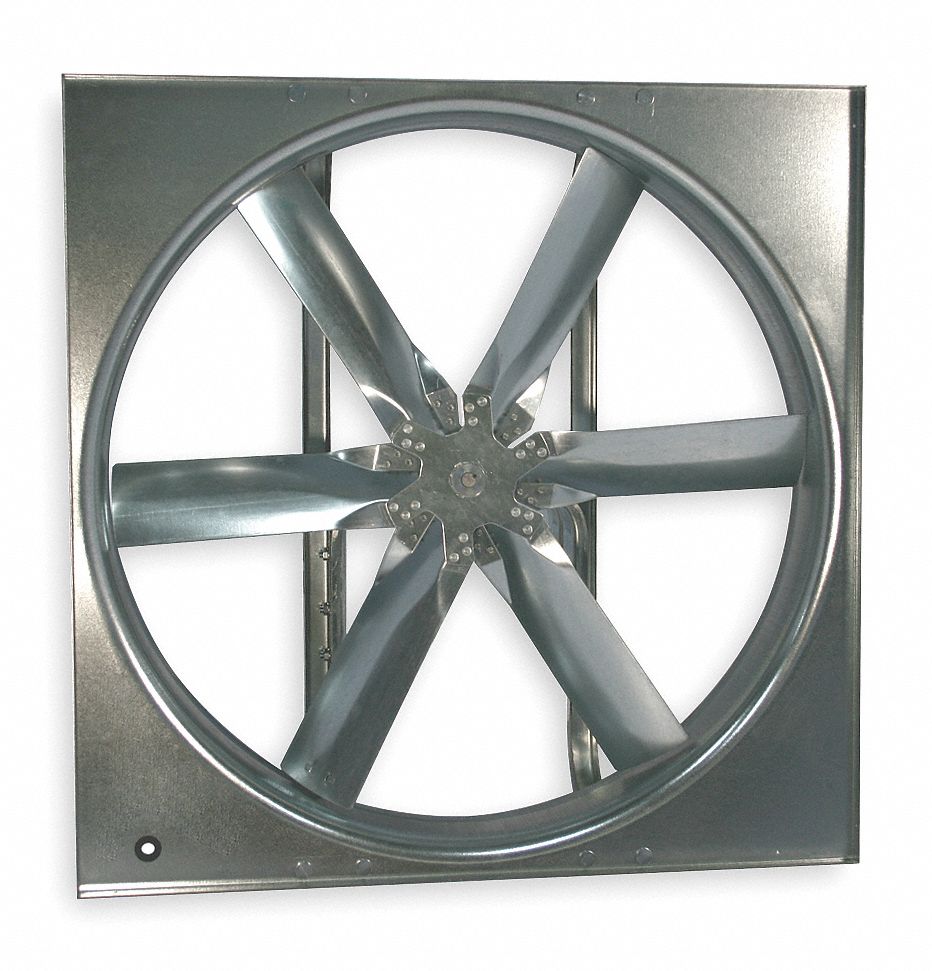

DAYTON Supply Fan, 48 In, Volts 208-230/440

Supply Fan w/Drive Package, Standard Fan Duty Rating, Motor Enclosure Totally Enclosed, Blade Dia. 48 In., Drive Type Belt, Voltage 208-230/440, Motor HP 3, Fan RPM 618, Max. BHP 3.60, Max. Inlet Temp. 104 Degrees F, Max. Ambient Temp. 104 Degrees F, 60 Hz, 3 Phase, Full Load Amps 8.9-8.0/4.0, Motor Type 3-Phase, Motor HP Range -, Motor Insulation Class F, Motor RPM 1725, Bearing Size 1-1/4 In., Bearing Type Regreasable Pillow Block, Number of Blades 6, Blade Material Steel, Shaft Dia. 1-1/4 In.
  • Grainger Item #7D530
    Price (ea.)$1,649.00
    BrandDAYTON
    Mfr. Model #7D530
    UNSPSC #40101501
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)327.5
    Availability Typically in Stock
    Catalog Page No.4451
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
ItemSupply Fan w/Drive Package
Fan Duty RatingStandard
Motor EnclosureTotally Enclosed
Blade Dia.48"
Drive TypeBelt
CFM @ 0.000-In. SP31,442
CFM @ 0.125-In. SP29,484
CFM @ 0.250-In. SP27,395
CFM @ 0.375-In. SP24,703
CFM @ 0.500-In. SP20,285
Voltage208-230/440
Motor HP3
Fan RPM618
Sones @ 0.000-In. SP @ 5 Ft.29
Sones @ 0.125-In. SP @ 5 Ft.28
Max. BHP3.60
Max. Inlet Temp.104 Degrees F
Max. Ambient Temp.104 Degrees F
Hz60
Phase3
Full Load Amps8.9-8.0/4.0
Motor Type3-Phase
Motor InsulationClass F
Motor RPM1725
Bearing Size1-1/4"
Bearing TypeRegreasable Pillow Block
Number of Blades6
Blade MaterialSteel
Shaft Dia.1-1/4"
Outside Dia.54"
Height54"
Width54"
Overall Depth26"
Max. Depth26"
Flange Width2"
Mounting PositionVertical or Horizontal
Frame MaterialGalvanized Steel
Intake Guard No.6D589

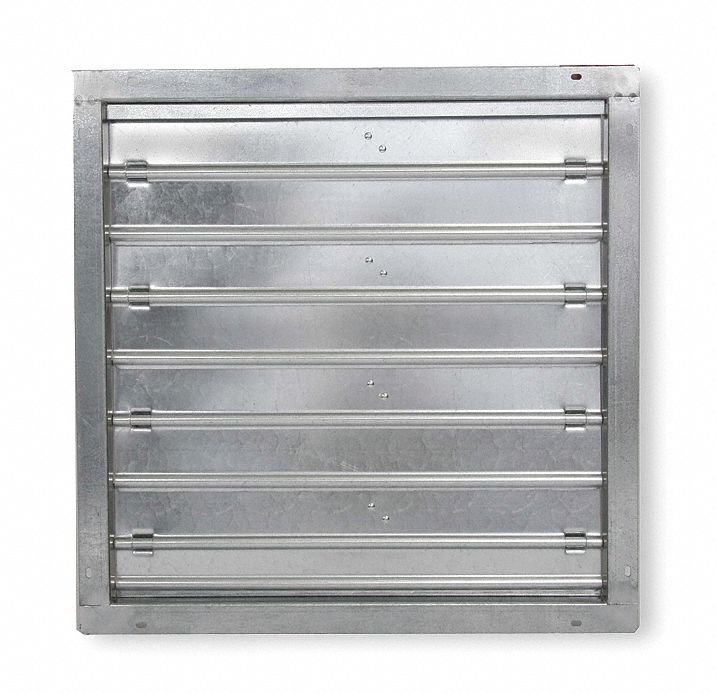

Motorized Wall Galv. Shutter Stock No.3C731
Stock No.1WDC9
Venturi Clearance Dia.48-1/2"
Wall Collar Stock No.4YD05
Wall Housing Item No.3FKG3
Weatherhood No.4YD10
StandardsAMCA
IncludesDrive Package
