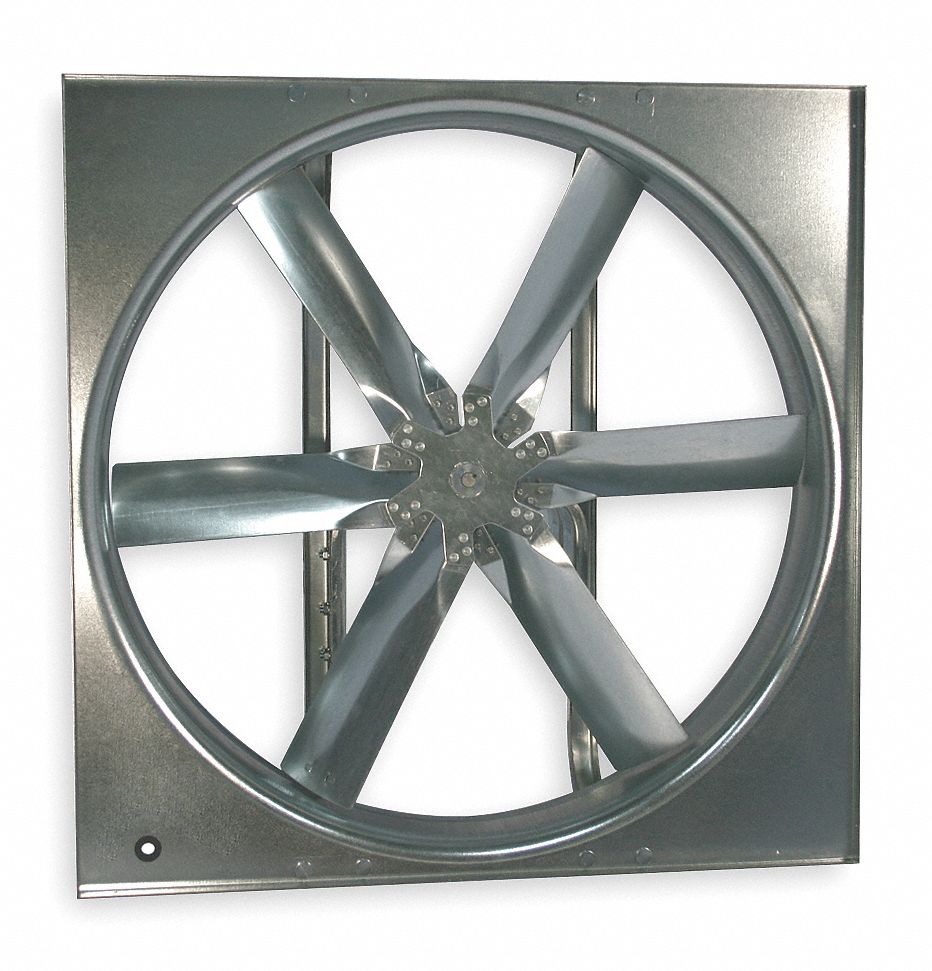

DAYTON Supply Fan, 42 In, 208-230/460 V

Supply Fan w/Drive Package, Standard Fan Duty Rating, Motor Enclosure Open Dripproof, Blade Dia. 42 In., Drive Type Belt, Voltage 208-230/460, Motor HP 1-1/2, Fan RPM 608, Max. BHP 1.80, Max. Inlet Temp. 104 Degrees F, Max. Ambient Temp. 104 Degrees F, 60 Hz, 3 Phase, Full Load Amps 4.4-4.0/2.0, Motor Type 3-Phase, Motor HP Range -, Motor Insulation Class F, Motor RPM 1735, Bearing Size 1-1/4 In., Bearing Type Sealed Pillow Block, Number of Blades 6, Blade Material Steel, Shaft Dia. 1-1/4 In.
  • Grainger Item #7AD09
    Price (ea.)$1,270.00
    BrandDAYTON
    Mfr. Model #7AD09
    UNSPSC #40101501
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)261.54
    Availability Typically in Stock
    Catalog Page No.4451
    Country of Origin
    (Country of Origin is subject to change.)
    Not Available
  • Price shown may not reflect your price. Sign in or register.
ItemSupply Fan w/Drive Package
Fan Duty RatingStandard
Motor EnclosureOpen Dripproof
Blade Dia.42"
Drive TypeBelt
CFM @ 0.000-In. SP20,998
CFM @ 0.125-In. SP19,302
CFM @ 0.250-In. SP17,182
CFM @ 0.375-In. SP14,193
Voltage208-230/460
Motor HP1-1/2
Fan RPM608
Sones @ 0.000-In. SP @ 5 Ft.26
Sones @ 0.125-In. SP @ 5 Ft.25
Max. BHP1.80
Max. Inlet Temp.104 Degrees F
Max. Ambient Temp.104 Degrees F
Hz60
Phase3
Full Load Amps4.4-4.0/2.0
Motor Type3-Phase
Motor InsulationClass F
Motor RPM1735
Bearing Size1-1/4"
Bearing TypeSealed Pillow Block
Number of Blades6
Blade MaterialSteel
Shaft Dia.1-1/4"
Outside Dia.46"
Height46"
Width46"
Overall Depth24-5/8"
Max. Depth24-5/8"
Flange Width2"
Mounting PositionVertical or Horizontal
Frame MaterialGalvanized Steel
Intake Guard No.1WBU6
Motorized Wall Galv. Shutter Stock No.3C730
Stock No.1WDC8
Venturi Clearance Dia.42-1/2"
Wall Collar Stock No.1WBV4
Weatherhood No.1WBW3
StandardsAMCA, UL/cUL
IncludesDrive Package

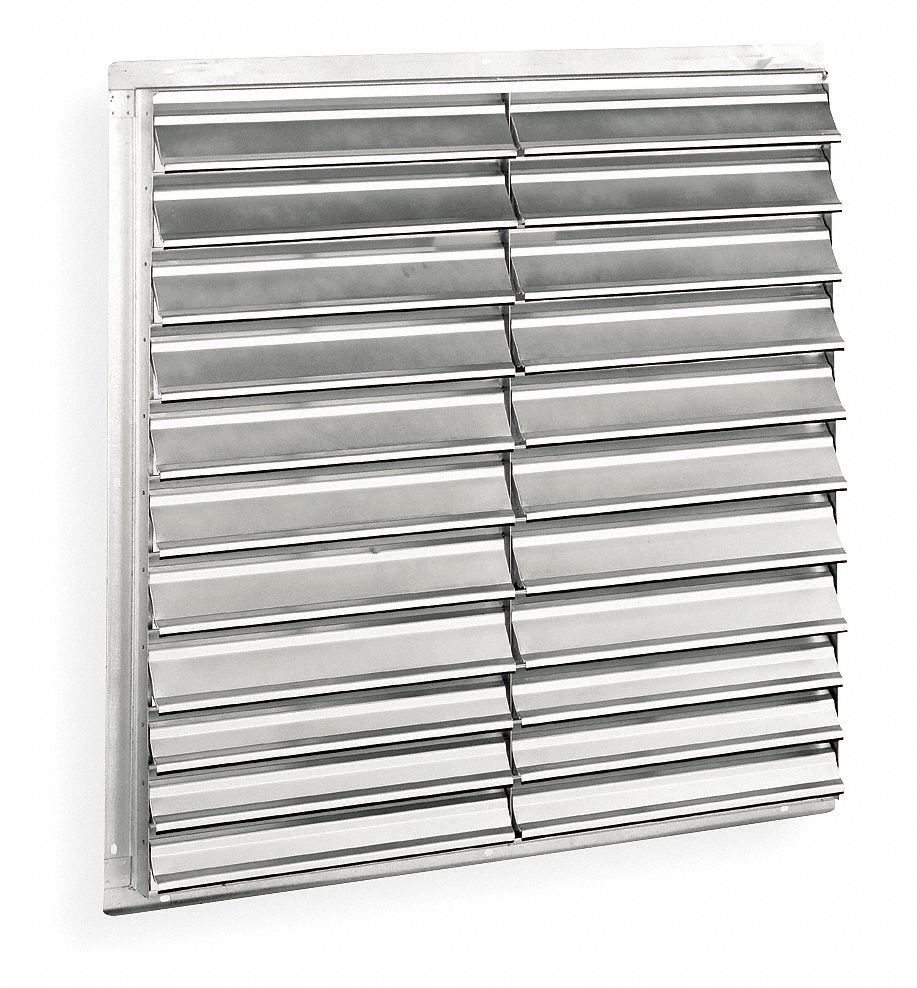

Optional Accessories
