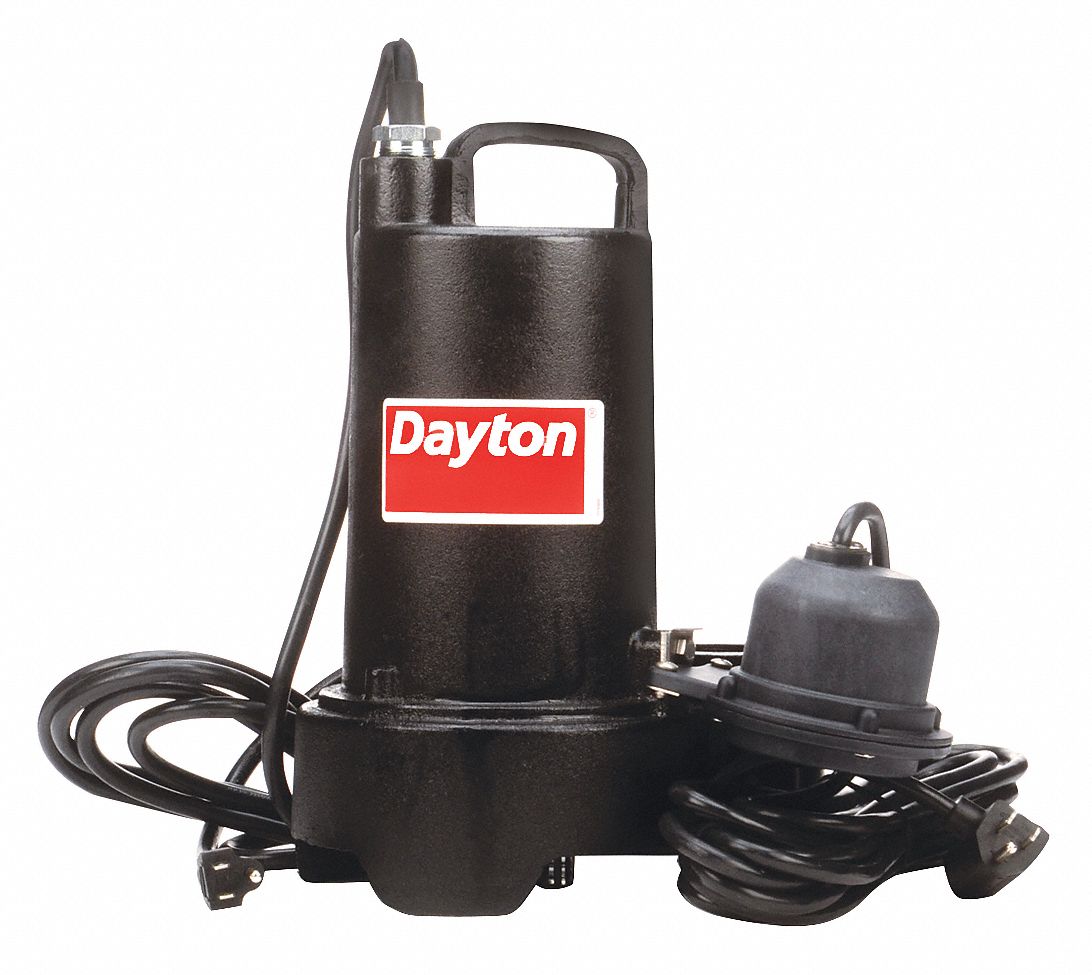

Submersible Sump Pump, Automatic, 3/4 HP, Switch Type Diaphragm, Discharge NPT (In.) 1-1/2, 115 Voltage, 10.5 Amps, Cord Length (Ft.) 15, On Point (In.) 14-1/2, Off Point (In.) 5, GPM of Water @ 10 Ft. of Head 101, Max. Head (Ft.) 37, Max. Dia. Solids (In.) 1/2, Max. Temp. (F) 104, Base Material Cast Iron, Housing Cast Iron, Impeller Material Cast Iron, Intermittent Duty, Shaft Seal Silicon Carbide, Mechanical Seal SiC, Shaft Material Stainless Steel
  • Grainger Item #3BB80
    Price (ea.)$467.00
    BrandDAYTON
    Mfr. Model #3BB80
    UNSPSC #40151512
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)44.05
    Availability Typically in Stock
    Catalog Page No.4037
    Country of Origin
    (Country of Origin is subject to change.)
    China
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemSubmersible Sump Pump
TypeAutomatic
HP3/4
Switch TypeDiaphragm
Discharge NPT (In.)1-1/2
Voltage115
Amps10.5
Cord Length (Ft.)15
On Point (In.)14-1/2
Off Point (In.)5
GPM of Water @ 5 Ft. of Head113
GPM of Water @ 10 Ft. of Head101
GPM of Water @ 15 Ft. of Head92
GPM of Water @ 20 Ft. of Head80
Max. Head (Ft.)37
Height (In.)13
Dia. (In.)10
Max. Dia. Solids (In.)1/2
Max. Temp. (F)104
Base MaterialCast Iron
HousingCast Iron
Top MaterialCast Iron
Impeller MaterialCast Iron
DutyIntermittent
Bearing TypeUpper and Lower
Shaft SealSilicon Carbide
GPM of Water @ 25 Ft. of Head63
GPM of Water @ 30 Ft. of Head43
Mechanical SealSiC
Motor TypeOil-Cooled
Shaft MaterialStainless Steel
