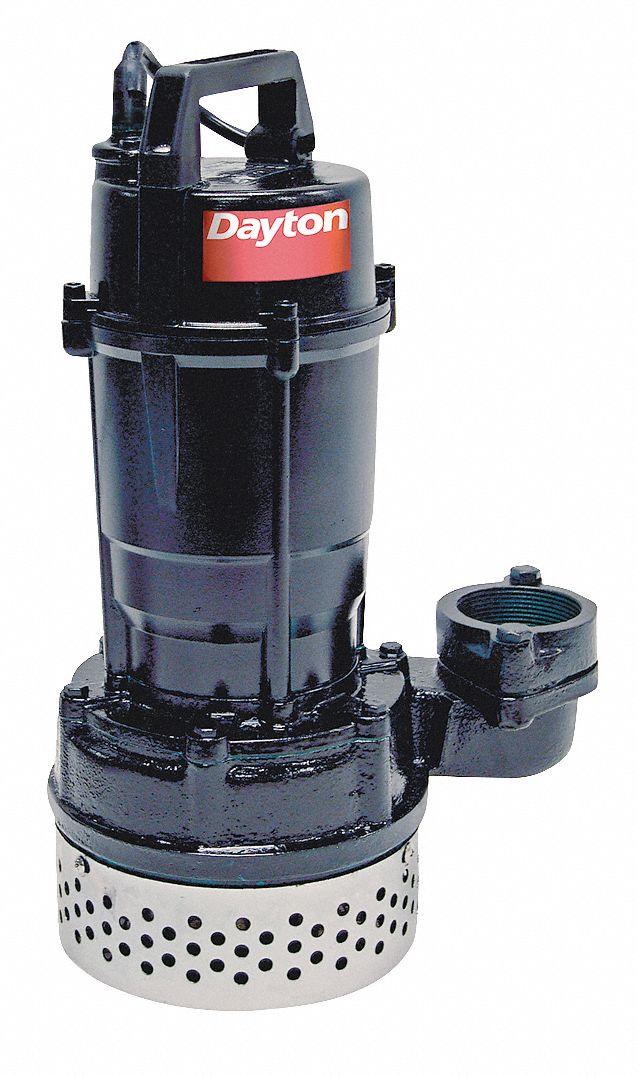

DAYTON Submersible Sump Pump, 1/2 HP, 4.5 Amps

Submersible Sump Pump, Manual, 1/2 HP, Discharge NPT (In.) 2, 115 Voltage, 4.8 Amps, Cord Length (Ft.) 10, GPM of Water @ 10 Ft. of Head 61, Max. Head (Ft.) 36, Max. Dia. Solids (In.) 1/4, Max. Temp. (F) 104, Base Material Cast Iron, Housing Aluminum, Impeller Material EP, Continuous Duty, RPM 3450, Thermal Protection Yes, Shaft Seal (2) Carbon/Ceramic, (1) Buna N, Mechanical Seal CRB/CMC, Shaft Material SS
  • Grainger Item #1XHV7
    Price (ea.)$244.50
    BrandDAYTON
    Mfr. Model #1XHV7
    UNSPSC #40151512
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)31.45
    Availability Typically in Stock
    Catalog Page No.4037
    Country of Origin
    (Country of Origin is subject to change.)
    China
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemSubmersible Sump Pump
TypeManual
HP1/2
Discharge NPT (In.)2
Voltage115
Amps4.8
Cord Length (Ft.)10
Min. Sump Pit Dia. (In.)11
GPM of Water @ 5 Ft. of Head75
GPM of Water @ 10 Ft. of Head61
GPM of Water @ 15 Ft. of Head43
GPM of Water @ 20 Ft. of Head30
Max. Head (Ft.)36
Height (In.)16-1/4
Dia. (In.)10
Max. Dia. Solids (In.)1/4
Max. Temp. (F)104
Base MaterialCast Iron
HousingAluminum
Top MaterialCast Aluminum
Impeller MaterialEP
DutyContinuous
RPM3450
Thermal ProtectionYes
Bearing TypeBall
Shaft Seal(2) Carbon/Ceramic, (1) Buna N
GPM of Water @ 25 Ft. of Head36
GPM of Water @ 30 Ft. of Head15
GPM of Water @ 35 Ft. of Head3
Mechanical SealCRB/CMC
Motor TypePSC
Shaft MaterialSS
StandardsCSA
