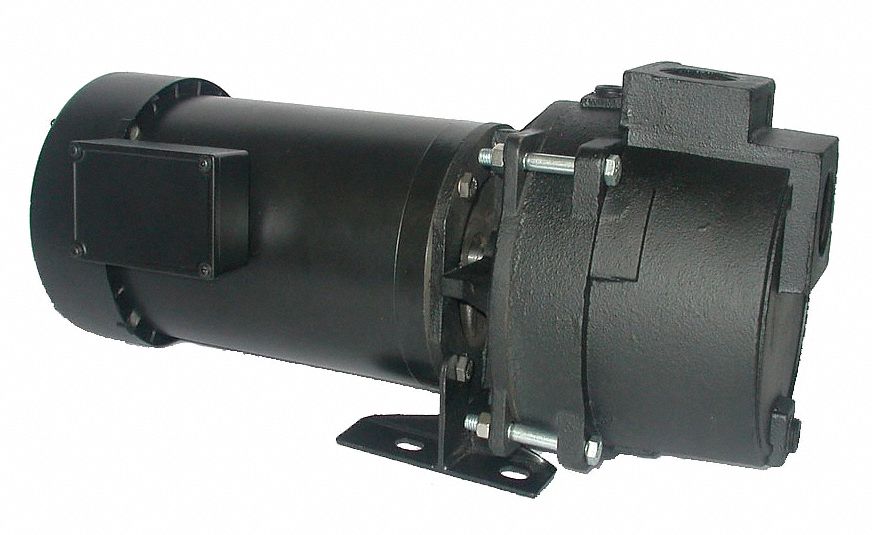

DAYTON Pump, Sprinkler/Booster, 2 HP, 3 Ph

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Sprinkler/Booster Pump, Self-Priming, Housing Material Cast Iron, Inlet 1-1/2 In, Outlet 1-1/2 In, 2 HP, 3 Phase, Voltage 208-230/460, Amps 10.64-9.67/4.84, 60 Hz, Suction Lift 25 Ft., Shut-Off 173 Ft., Max. Pressure 75 PSI, Stages 2, Motor Enclosure TEFC, Motor Type 3-Phase, 3450 RPM, Application Lawn Sprinking, Spraying Irrigation, Draining and General Dewatering Application, Etc., Includes Manual

Grainger Item #	5RWH1
Price (ea.)	$1,056.00
Brand	DAYTON
Mfr. Model #	5RWH1
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	85.0
Availability	Limited quantity available
Catalog Page No.	4079
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Sprinkler/Booster Pump
Type		Self-Priming
HP		2
Phase		3
Voltage		208-230/460
Amps		10.64-9.67/4.84
Hz		60
Inlet (In.)		1-1/2
Outlet (In.)		1-1/2
Suction Lift (Ft.)		25
Length (In.)		18-3/4
Width (In.)		8
Height (In.)		9-1/4
GPM @ 10 PSI		62
GPM @ 15 PSI		61
GPM @ 20 PSI		59
GPM @ 25 PSI		55
GPM @ 30 PSI		52
GPM @ 35 PSI		48
GPM @ 40 PSI		45
GPM @ 45 PSI		41
GPM @ 50 PSI		36
GPM @ 55 PSI		32
GPM @ 60 PSI		28
GPM @ 65 PSI		22
GPM of Water @ 70 PSI		15
Shut-Off (Ft.)		173
Max. Pressure (PSI)		75
Best Efficiency GPM @ Head (Ft.)		32 @ 105
Best Efficiency Range GPM @ Head (Ft.)		48-30 GPM @ 80-130 FT
Stages		2
Motor Enclosure		TEFC
Motor Type		3-Phase
NEMA/IEC Frame		56J
RPM		3450
Service Factor		1.2
Wetted Materials		Cast Iron, Stainless Steel, Buna-N, Carbon, Ceramic
Housing Material		Cast Iron
Impeller Material		Stainless Steel
Volute Material		Cast Iron
Seal Type		Buna-N O-Ring Casing, Mechanical
Seal Material		Buna-N, Carbon, Ceramic, Stainless Steel
Seal Application		Nonflammable Liquids Compatible with Pump Components
Shaft Material		Stainless Steel
Screw Material		Plated Steel
GPM of Water @ 2 Ft. of Head		65
Bearing Type		Double Shielded Pre Lubricated Ball
Max. Specific Gravity		1
Max. Case Pressure (PSI)		150
Max. Fluid Viscosity		31 SSU
Inlet Pressure (PSI)		75
Impeller Type		Closed
Duty		Continuous
Port Rotation		90 Degrees Increments
Drain Plug		Yes
Agency Compliance		Motor Only CSA
Manufacturers Warranty Length		1 Year
Features		Removable and Replaceable Volute/Diffusers, Front Drain Plug
For Use With		Nonflammable Liquids Compatible with Pump Component Materials
Application		Lawn Sprinking, Spraying Irrigation, Draining and General Dewatering Application, Etc.
Includes		Manual
