Pumps
>
Centrifugal Pumps
>
Self Priming Pressure Pumps

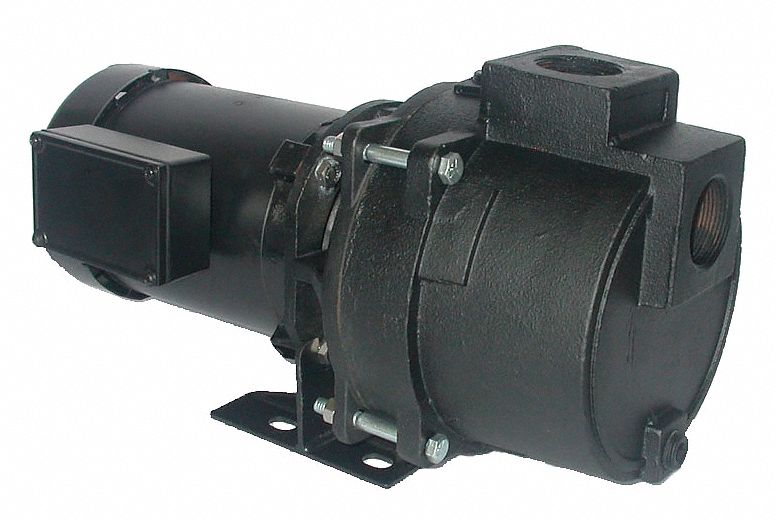

DAYTON Pump, Sprinkler, 1/2 HP, 3 Ph

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Sprinkler Pump, Self-Priming, Housing Material Cast Iron, Inlet 1-1/2 In, Outlet 1-1/2 In, 1/2 HP, 3 Phase, Voltage 208-230/460, Amps 3.53-3.36/1.68, 60 Hz, Suction Lift 25 Ft., Shut-Off 80 Ft., Max. Pressure 37 PSI, Stages 1, Motor Enclosure TEFC, Motor Type 3-Phase, 3450 RPM, Application Lawn Sprinking, Spraying Irrigation, Draining and General Dewatering Application, Etc., Includes Manual

Grainger Item #	5RWH7
Price (ea.)	$400.50
Brand	DAYTON
Mfr. Model #	5RWH7
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	60.45
Availability	Typically in Stock
Catalog Page No.	4079
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Sprinkler Pump
Type		Self-Priming
HP		1/2
Phase		3
Voltage		208-230/460
Amps		3.53-3.36/1.68
Hz		60
Inlet (In.)		1-1/2
Outlet (In.)		1-1/2
Suction Lift (Ft.)		25
Length (In.)		17-1/8
Width (In.)		8
Height (In.)		10-11/16
GPM @ 10 PSI		39
GPM @ 15 PSI		37
GPM @ 20 PSI		31
GPM @ 25 PSI		27
GPM @ 30 PSI		19
GPM @ 35 PSI		7
Shut-Off (Ft.)		80
Max. Pressure (PSI)		37
Best Efficiency GPM @ Head (Ft.)		33 @ 55
Best Efficiency Range GPM @ Head (Ft.)		37-26 GPM @ 34-70 FT
Stages		1
Motor Enclosure		TEFC
Motor Type		3-Phase
NEMA/IEC Frame		56J
RPM		3450
Service Factor		1.6
Wetted Materials		Cast Iron, Stainless Steel, Buna-N, Carbon, Ceramic
Housing Material		Cast Iron
Impeller Material		Stainless Steel
Volute Material		Cast Iron
Seal Type		Buna-N O-Ring Casing, Mechanical
Seal Material		Buna-N, Carbon, Ceramic, Stainless Steel
Seal Application		Nonflammable Liquids Compatible with Pump Components
Shaft Material		Stainless Steel
Screw Material		Plated Steel
GPM of Water @ 2 Ft. of Head		42
Bearing Type		Double Shielded Pre Lubricated Ball
Max. Specific Gravity		1
Max. Case Pressure (PSI)		150
Max. Fluid Viscosity		31 SSU
Inlet Pressure (PSI)		113
Impeller Type		Closed
Duty		Continuous
Port Rotation		90 Degrees Increments
Drain Plug		Yes
Agency Compliance		Motor Only CSA
Manufacturers Warranty Length		1 Year
Features		Removable and Replaceable Volute/Diffusers, Front Drain Plug
For Use With		Nonflammable Liquids Compatible with Pump Component Materials
Application		Lawn Sprinking, Spraying Irrigation, Draining and General Dewatering Application, Etc.
Includes		Manual
