DAYTON Control, DC, Washdown / NEMA 4/12

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Shunt Wound Volts 100 or 200, 1/8 to 2 HP, Voltage Output 90/180VDC, Input Voltage 120/240 VAC, NEMA 4/12 Enclosure, Speed Range 50:1, Speed Regulation +/- 1 Percent of Motor Base Speed, Current/Torque Limit Adjustable, Accepts Tach Feedback Yes, Dynamic Braking No, Linear Acceleration Fixed, Linear Deceleration No, Fixed Deceleration (Sec.) 1/2, Power On Light Yes, Protection Type Fused, IR Compensation Adj., Mount Type Wall Mount, Height (In.) 9.50, Depth (In.) 5.50, Width (In.) 5.00

Grainger Item #	5X485
Price (ea.)	$587.50
Brand	DAYTON
Mfr. Model #	5X485
UNSPSC #	39121510
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	4.4
Availability	Typically in Stock
Catalog Page No.	347
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

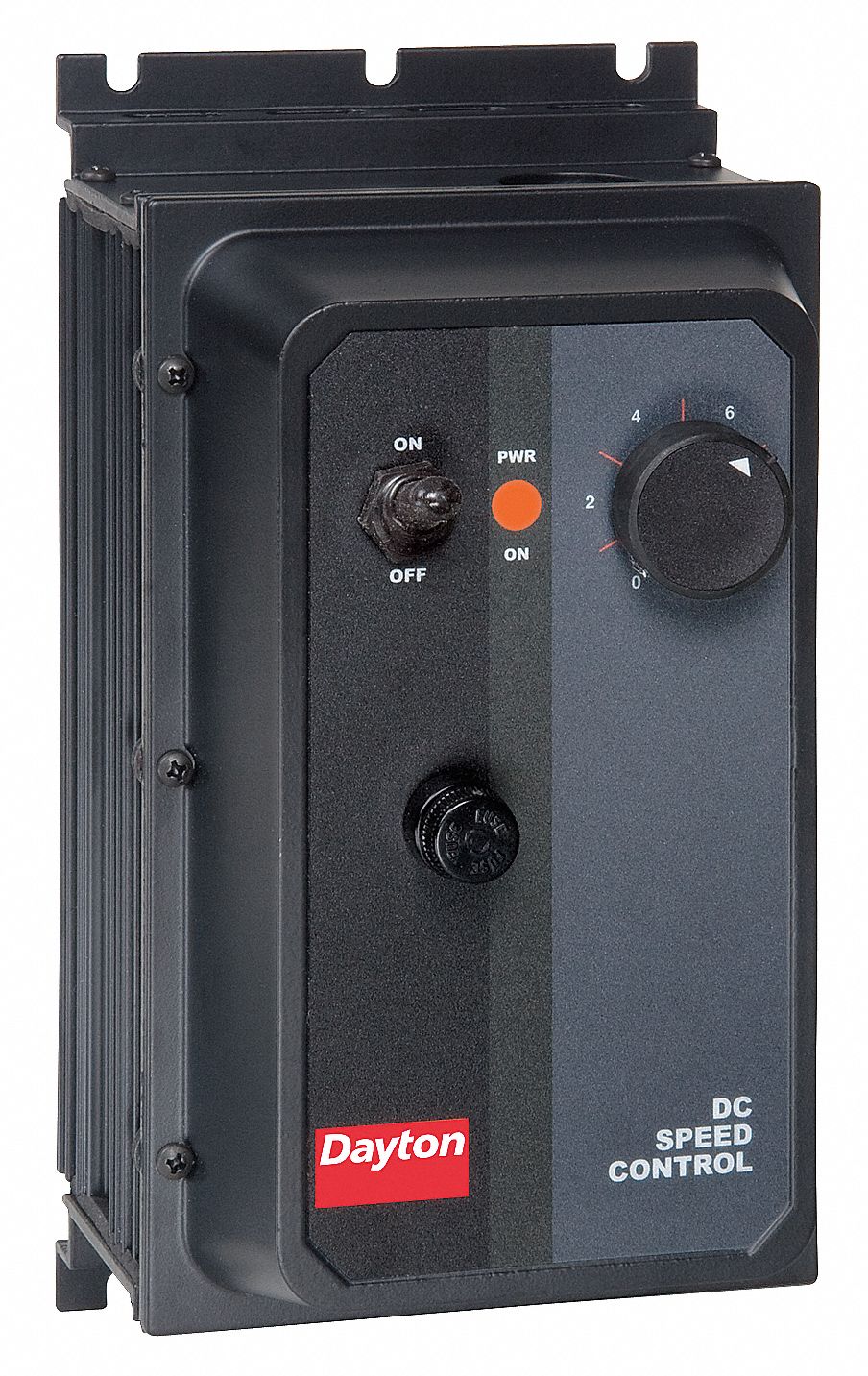

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Control,DC,Washdown / NEMA 4/12
Shunt Wound Volts		100 or 200
HP		1/8 to 2
Voltage Output		90 or 180 VDC
Input Voltage		120/240 VAC
Enclosure		NEMA 4/12
Speed Range		50:1
Speed Regulation		+/- 1 Percent of Motor Base Speed
Current/Torque Limit		Adjustable
Accepts Tach Feedback		Yes
Dynamic Braking		No
Linear Acceleration		Fixed
Linear Deceleration		No
Fixed Deceleration (Sec.)		1/2
Power On Light		Yes
Protection Type		Fused
IR Compensation		Adj.
Mount Type		Wall Mount
Height (In.)		9.50
Depth (In.)		5.50
Width (In.)		5.00
Operating Temp.		-10 to 40 Degrees C. Ambient (15 to 105 Degrees F.)
External Switches		On/Off
HP @ Higher Volts		1/4 to 2
HP @ Lower Volts		1/8 to 1
For Use With		For Packagg Equipment, Pumps, Fans, Blowers, Conveyors and Other Constant or Dimishg Torques
Includes		Run/Stop Switch, Built-in Transient and Surge Suppression
Agency Compliance		UL Pending
