Pumps
>
Well Pumps
>
Jet Pump Systems

230V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Shallow Well Jet Pump System, Motor Enclosure ODP, Pump Material Cast Iron, 1/3 HP, Voltage 115/230, 10/4.8 Amps AC, Inlet 1-1/4 In NPT, Outlet 1 In NPT, 2 Gal., 28 psi Tank, Suction Lift 25 Ft., Max. Case Pressure 123 psi, Shut Off 63 psi, Number of Stages 1, Motor Type Capacitor Start, Mechanical Seal, CSA-US, Includes Pump and Tank, 1 x 3/4 In. Adaptor, Ejector 5UXL4, Nozzle, Venturi

Grainger Item #	5UXK7
Price (ea.)	$417.50
Brand	DAYTON
Mfr. Model #	5UXK7
UNSPSC #	40151511
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	31.0
Availability	Typically in Stock
Catalog Page No.	4104
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

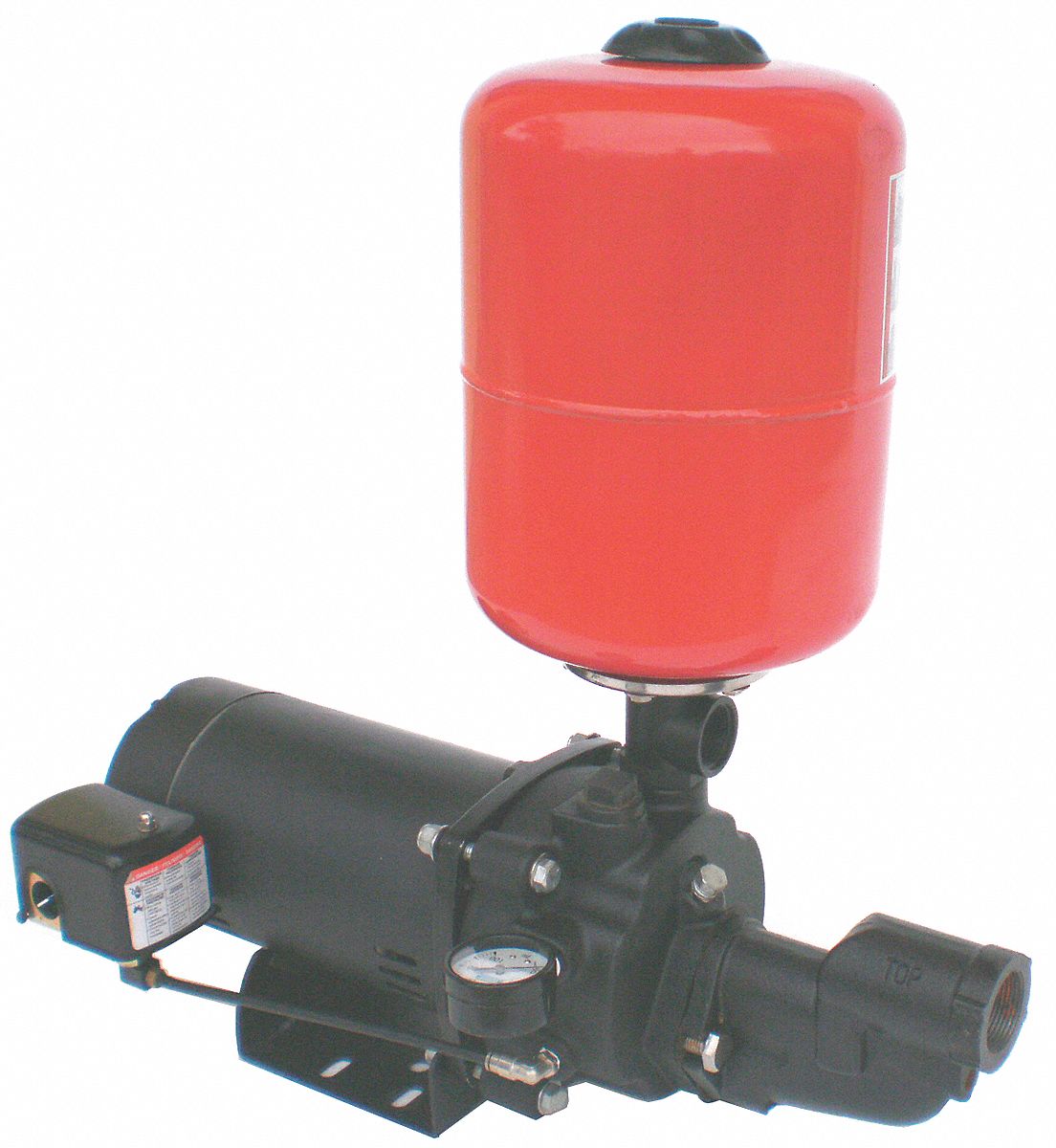

Shallow Well Jet Pump Sys, 1/3HP, 115/230V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Shallow Well Jet Pump System
HP		1/3
Voltage		115/230
Inlet		1-1/4" NPT
Outlet		1" NPT
Amps		10/4.8
Tank (Gal.)		2
Tank PSI		28
GPM of Water @ 5 Ft @ 30, 50 PSI		8.5/3.5
GPM of Water @ 10 Ft @ 30, 50 PSI		7.5/2.8
GPM of Water @ 15 Ft @ 30, 50 PSI		6.3/2.5
GPM of Water @ 20 Ft @ 30, 50 PSI		4.8/1.3
Shut Off (PSI)		63
Max. Inlet Pressure (PSI)		123
Max. Case Pressure (PSI)		123
Motor Type		Capacitor Start
Seal Type		Mechanical
Suction Lift (Ft.)		25
Length (In.)		20.1875
Width (In.)		10.6875
Height (In.)		21.875
Compliance		CSA-US
Includes		Pump and Tank,1 x 3/4 In. Adaptor, Ejector 5UXL4, Nozzle, Venturi
