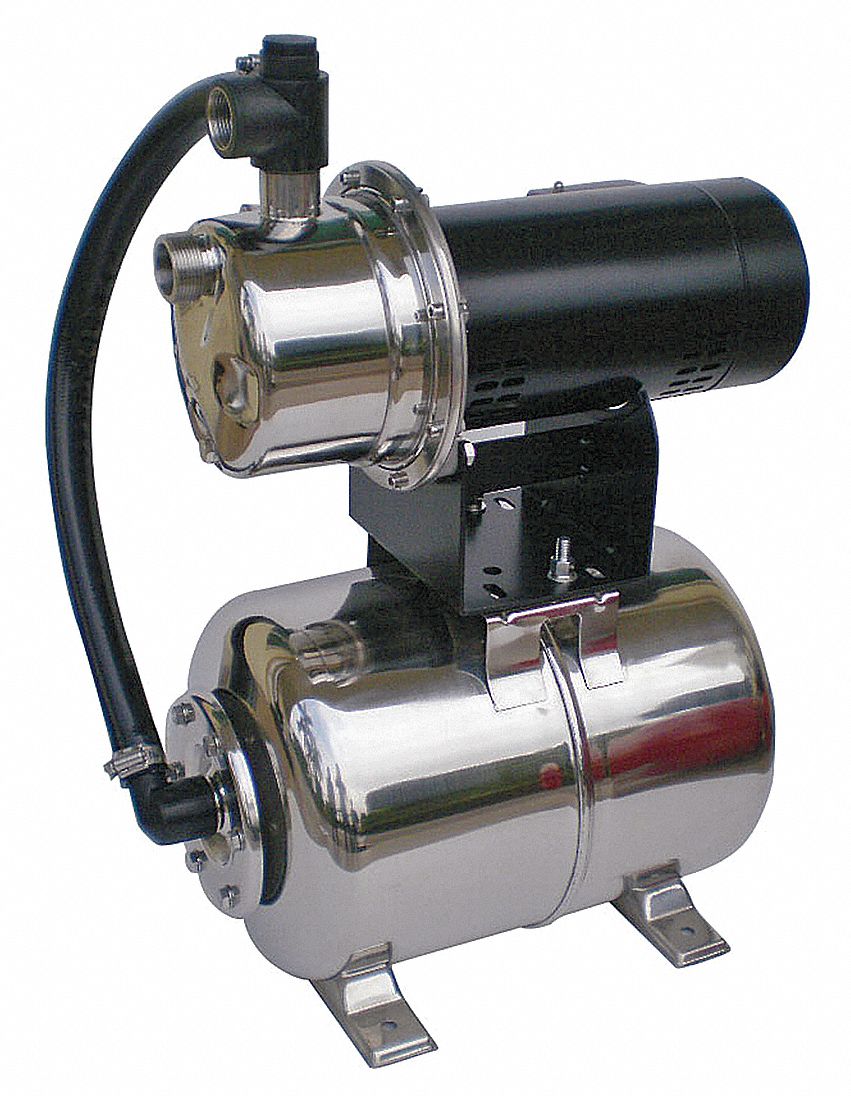

DAYTON Shallow Well Jet Pump, SS, 3/4 HP

| Write a Review
| Read all Reviews(1)
| Read all Ask & Answer

Shallow Well Jet Pump System, Stainless Steel, 3/4 HP, Voltage 115/230, Suction Pipe Size 1 1/4 In., 1 NPT Outlet, 15.6/7.8 Amps AC, Tank 6 Gal., Shut Off 64 PSI, Max. Inlet Pressure 75 PSI, Max. Case Pressure 141 PSI, Motor Type Capacitor Start, ODP, Seal Type Mechanical, Suction Lift 0-25 Ft., Length 25 In., Width 25 In., Height 28 In., Includes Pump and Tank

Grainger Item #	4HFA3
Price (ea.)	$824.50
Brand	DAYTON
Mfr. Model #	4HFA3
UNSPSC #	40151511
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	50.0
Availability	Limited quantity available
Catalog Page No.	4104
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Shallow Well Jet Pump System
HP		3/4
Voltage		115/230
Inlet		1-1/4" NPT
Outlet		1" NPT
Amps		15.6/7.8
Tank (Gal.)		6
Tank PSI		28
GPM of Water @ 5 Ft @ 30, 50 PSI		20.1 7.5
GPM of Water @ 10 Ft @ 30, 50 PSI		17.6/5.7
GPM of Water @ 15 Ft @ 30, 50 PSI		15.4 4.8
GPM of Water @ 20 Ft @ 30, 50 PSI		13.2/4.8
Shut Off (PSI)		64
Max. Inlet Pressure (PSI)		75
Max. Case Pressure (PSI)		141
Motor Type		Capacitor Start
Seal Type		Mechanical
Suction Lift (Ft.)		0-25
Length (In.)		25
Width (In.)		25
Height (In.)		28
Includes		Pump and Tank
