Pumps
>
Centrifugal Pumps
>
Self Priming Sewage/Trash Pumps

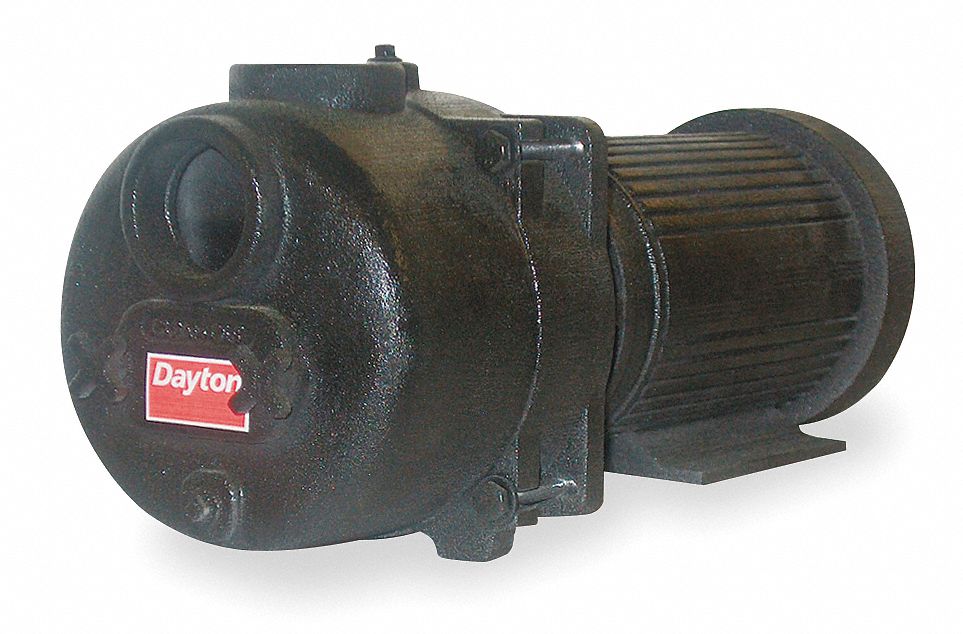

DAYTON Sewage/Trash Pump, 15 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Sewage/Trash Centrifugal Pump, 15 HP, 3 Phase, Voltage 230/460, 34.6/17.3 Amps, 60 Hz, Inlet/Outlet 4 In., TEFC Motor Enclosure, NEMA/IEC Frame 215JM, Motor RPM 3450, Service Factor 1.25, Semi-open Impeller, Stainless Steel Impeller Material, Cast Iron Housing Material, Mechanical Seal, Max. Liquid Temp. 160 F, Max. Head 120 Ft., Inlet Pressure 10 PSI, Max. Dia. Solids 1.33 In., Height 12.97 In., Length 30.52 In., Width 14.10 In.

Grainger Item #	12N809
Price (ea.)	$4,408.00
Brand	DAYTON
Mfr. Model #	12N809
UNSPSC #	40151517
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	260.0
Availability	Typically in Stock
Catalog Page No.	4078
Country of Origin (Country of Origin is subject to change.)	India

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Sewage/Trash Centrifugal Pump
HP		15
Phase		3
Voltage		230/460
Amps		34.6/17.3
Hz		60
Inlet/Outlet (In.)		4
Motor Enclosure		TEFC
NEMA/IEC Frame		215JM
Motor RPM		3450
Motor Type		3 - Phase
Service Factor		1.25
Wetted Materials		CI, SS, Silicon Carbide, Buna N, BR
Impeller Material		Stainless Steel
Housing Material		Cast Iron
Volute Material		Cast Iron
Shaft Material		Steel
Screw Material		Zinc Plated
Seal Type		Mechanical
Seal Material		Carbon/Ceramic/Buna-N
Max. Liquid Temp. (F)		160
GPM of Water @ 40 Ft. of Head		485
GPM of Water @ 50 Ft. of Head		405
GPM of Water @ 60 Ft. of Head		360
GPM of Water @ 70 Ft. of Head		300
GPM of Water @ 80 Ft. of Head		240
GPM of Water @ 90 Ft. of Head		175
Max. Head (Ft.)		120
Best Efficiency GPM @ Head (Ft.)		410 @ 49
Best Efficiency Range GPM @ Head (Ft.)		42 to 65 @ 480 to 330
Max. Specific Gravity		1.0
Max. Case Pressure (PSI)		60
Max. Fluid Viscosity		100 SSU
Inlet Pressure (PSI)		10
Impeller Type		Semi-open
Bearing Type		Ball
Duty		Continuous
Max. Dia. Solids (In.)		1.33
Port Rotation		None
Drain Plug		3/4" NPT
Agency Compliance		None
Manufacturers Warranty Length		1 Year
Application		Process, Liquid Transfer, Irrigation, Clear or Gray Water and Sewage Treatment
For Use With		Water and Nonflammable Liquids Compatible with Pump Component Materials
Height (In.)		12.97
Length (In.)		30.52
Width (In.)		14.10
Includes		Strainer and Manual
