Pumps
>
Rotary Pumps
>
Rotary Gear Pump Heads

2 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Rotary Gear Pump Head, Intermittent Duty, With Relief Valve, Port Size 3/8 In., Shaft Dia. 0.5 In., 4.4 GPM @ Freeflow, 1/2 HP @ Free Flow, Suction Lift 3.6 Ft., Recommended Motor HP 1/2, Motor Frame Carbonator, Pump RPM 1725, Max. Pressure 100 PSI, Seal Mechanical With Stainless Steel, Viton, Steel Spur Gear, Warranty Length 1 Year

Grainger Item #	4KHR2
Price (ea.)	$258.75
Brand	DAYTON
Mfr. Model #	4KHR2
UNSPSC #	40151551
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	4.95
Availability	Typically in Stock
Catalog Page No.	4144
Country of Origin (Country of Origin is subject to change.)	India

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Rotary Gear Pump Head
Type		Intermittent Duty
Pump Body Material		Cast Iron
Port Size (In.)		3/8
Recommended Motor HP		1/2
Motor Frame		Carbonator
GPM @ Freeflow		4.4
HP @ Free Flow		1/2
GPM @ Freeflow @ 1725 RPM		4.4
HP @ Free Flow @ 1725 RPM		1/2
GPM @ 20 PSI		4.3
HP @ 20 PSI		1/2
GPM @ 40 PSI		3.8
HP @ 40 PSI		1/2
GPM @ 60 PSI		3.5
HP @ 60 PSI		1/2
GPM @ 80 PSI		3.2
HP @ 80 PSI		1/2
GPM @ 100 PSI		3
HP @ 100 PSI		1/2
Suction Lift (Ft.)		3.6
Suction Lift (Ft.) @ 1725 RPM		3.6
Pump RPM		1725
Max. Temp. (F)		210
Temp. Range		-20 to 210 F
Max. Pressure (PSI)		100
Max. Viscosity (SSU)		550
Design		Close Coupled
Gear		Steel Spur
Length (In.)		7
Width (In.)		2-1/2
Height (In.)		3-5/8
O-Ring		Viton
Relief Valve		With
Seal		Mechanical With Stainless Steel, Viton
Shaft Dia. (In.)		0.5
Shaft Material		Steel
Manufacturers Warranty Length		1 Year

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Pumps > Rotary Pumps > Rotary Gear Pump Heads

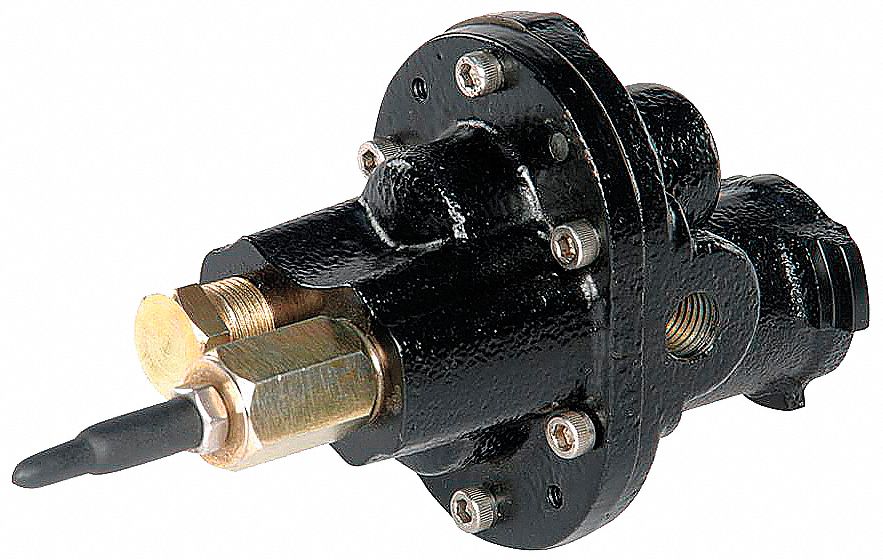

DAYTON Rotary Gear Pump Head, 3/8 In., 1/2 HP
