Pumps
>
Rotary Pumps
>
Rotary Gear Pump Heads

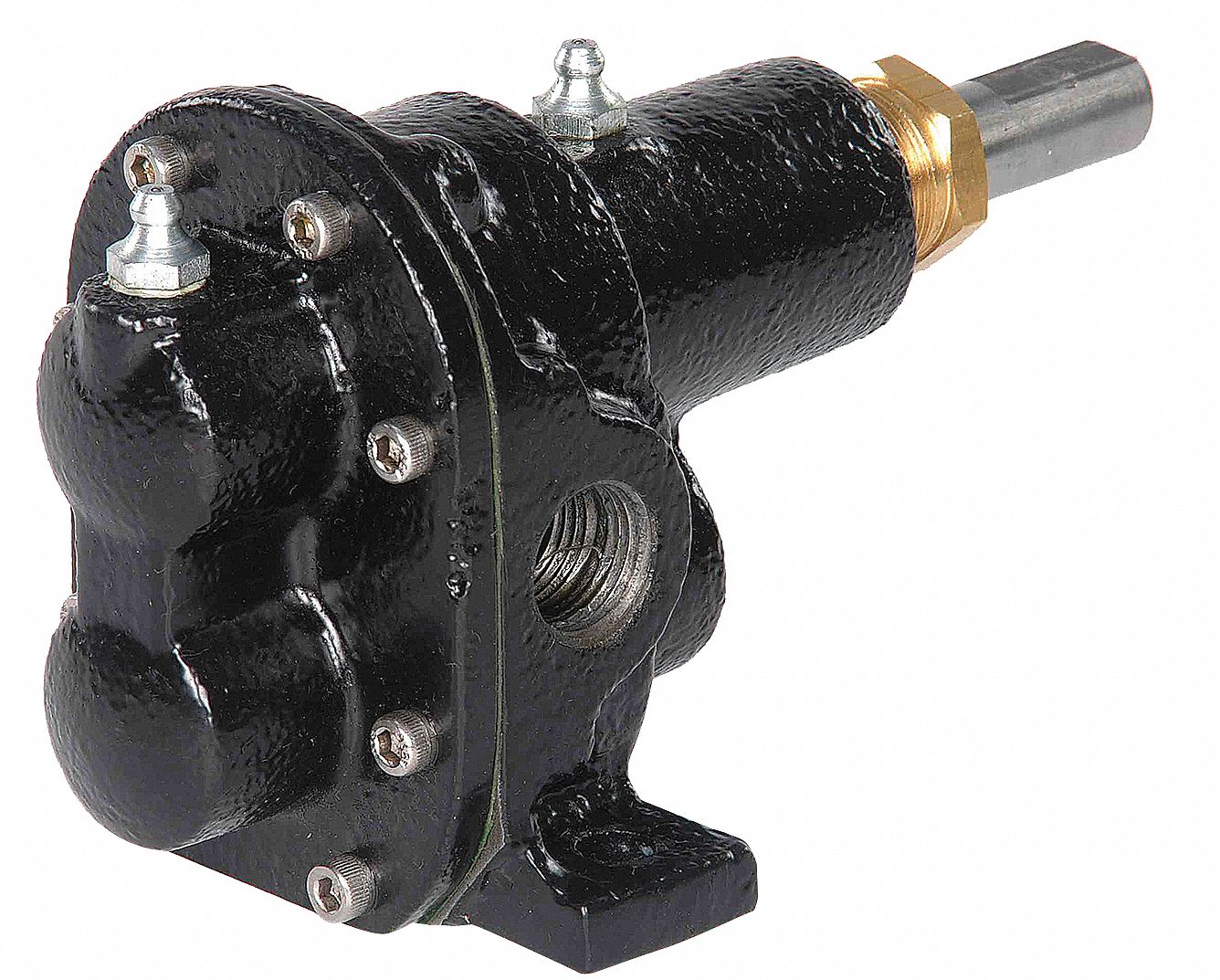

DAYTON Rotary Gear Pump Head, 1 In., 1 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Rotary Gear Pump Head, Light Duty, Without Relief Valve, Port Size 1 In., Shaft Dia. 0.63 In., Shaft Height 3 9/16 In., 24.8 GPM @ Freeflow, 1 HP @ Free Flow, Suction Lift 19.5 Ft., Pump RPM 1725, 24.7 GPM @ 25 PSI, 1 1/2 HP @ 25 PSI, Max. Pressure 100 PSI, PTFE, Kevlar Packing Seal, Steel Spur Gear, Warranty Length 1 Year

Grainger Item #	4KHK6
Price (ea.)	$262.25
Brand	DAYTON
Mfr. Model #	4KHK6
UNSPSC #	40151551
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	10.45
Availability	Typically in Stock
Catalog Page No.	4143
Country of Origin (Country of Origin is subject to change.)	India

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Rotary Gear Pump Head
Type		Light Duty
Pump Body Material		Cast Iron
Port Size (In.)		1
GPM @ Freeflow		24.8
HP @ Free Flow		1
GPM @ Freeflow @ 1725 RPM		24.8
HP @ Free Flow @ 1725 RPM		1-1/2
GPM @ 20 PSI		24
GPM @ 25 PSI		24.7
HP @ 25 PSI		1-1/2
GPM @ 40 PSI		24
GPM @ 50 PSI		24.5
HP @ 50 PSI		2
GPM @ 60 PSI		23.9
GPM @ 75 PSI		24.3
HP @ 75 PSI		2
GPM @ 80 PSI		23.4
GPM @ 100 PSI		23.1
HP @ 100 PSI		3
Suction Lift (Ft.)		19.5
Suction Lift (Ft.) @ 1725 RPM		19.5
Pump RPM		1725
Max. Temp. (F)		210
Temp. Range		-20 to 210 F
Max. Pressure (PSI)		100
Max. Viscosity (SSU)		550
Design		Pedestal
Gear		Steel Spur
Length (In.)		5-1/8
Width (In.)		7-1/4
Height (In.)		4
O-Ring		Viton
Relief Valve		Without
Seal		PTFE, Kevlar Packing
Shaft Dia. (In.)		0.63
Shaft Height (In.)		3-9/16
Shaft Material		Steel
Manufacturers Warranty Length		1 Year
