Pumps
>
Rotary Pumps
>
Rotary Gear Pump Heads

6 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

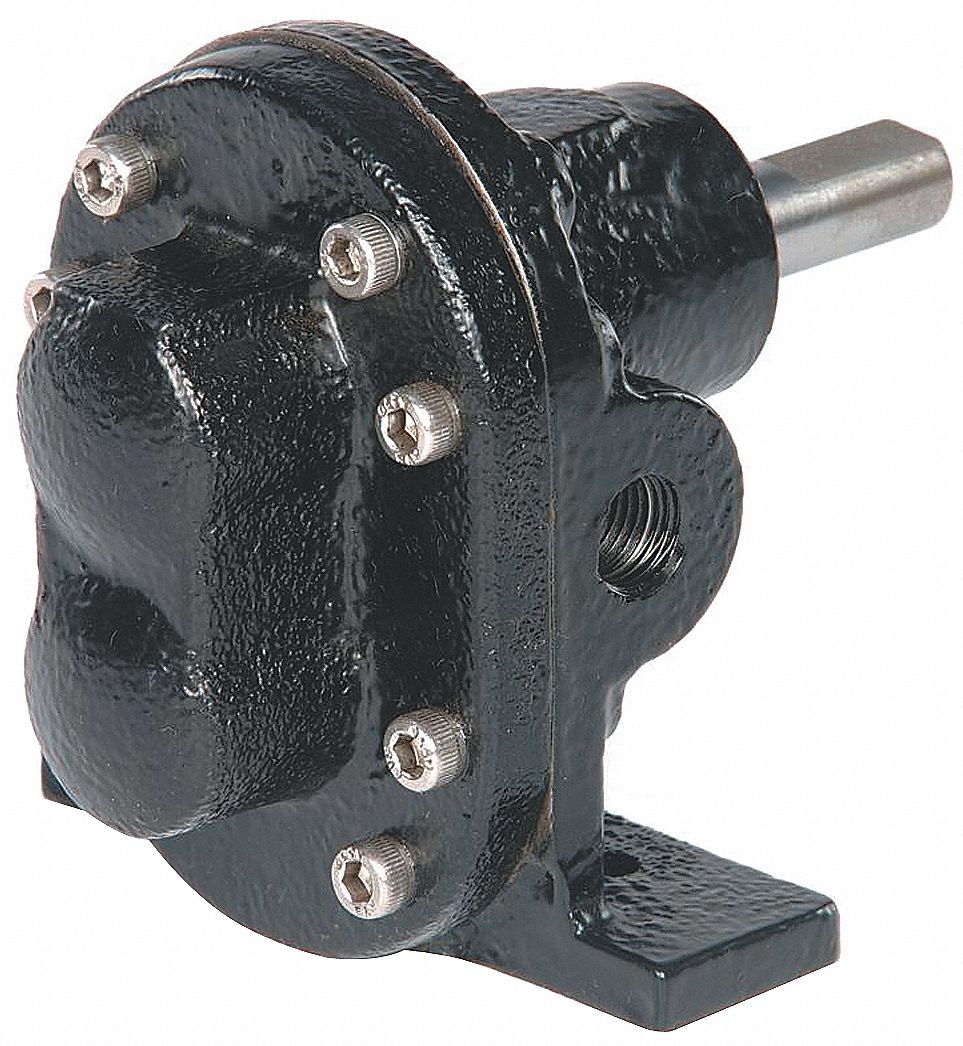

Rotary Gear Pump Head, Light Duty, Without Relief Valve, Port Size 1/4 In., Shaft Dia. 0.5 In., Shaft Height 1 7/8 In., 2.2 GPM @ Freeflow, 1/6 HP @ Free Flow, Suction Lift 2.5 Ft., Pump RPM 1725, 2.1 GPM @ 25 PSI, 1/4 HP @ 25 PSI, Max. Pressure 100 PSI, Viton Lip Seal, Steel Spur Gear, Warranty Length 1 Year

Grainger Item #	4KHJ4
Price (ea.)	$239.25
Brand	DAYTON
Mfr. Model #	4KHJ4
UNSPSC #	40151551
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	3.45
Availability	Typically in Stock
Catalog Page No.	4143
Country of Origin (Country of Origin is subject to change.)	India

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Rotary Gear Pump Head
Type		Light Duty
Pump Body Material		Cast Iron
Port Size (In.)		1/4
GPM @ Freeflow		2.2
HP @ Free Flow		1/6
GPM @ Freeflow @ 1725 RPM		2.2
HP @ Free Flow @ 1725 RPM		1/6
GPM @ 20 PSI		2
GPM @ 25 PSI		2.1
HP @ 25 PSI		1/4
GPM @ 40 PSI		1.8
GPM @ 50 PSI		2
HP @ 50 PSI		1/4
GPM @ 60 PSI		1.5
GPM @ 75 PSI		2
HP @ 75 PSI		1/3
GPM @ 80 PSI		1.3
GPM @ 100 PSI		1
HP @ 100 PSI		1/3
Suction Lift (Ft.)		2.5
Suction Lift (Ft.) @ 1725 RPM		2.5
Pump RPM		1725
Max. Temp. (F)		280
Temp. Range		-20 to 210 F
Max. Pressure (PSI)		100
Max. Viscosity (SSU)		550
Design		Pedestal
Gear		Steel Spur
Length (In.)		2-3/4
Width (In.)		5-1/2
Height (In.)		2-1/3
O-Ring		Viton
Relief Valve		Without
Seal		Viton Lip
Shaft Dia. (In.)		0.5
Shaft Height (In.)		1-7/8
Shaft Material		Steel
Manufacturers Warranty Length		1 Year
