Pumps
>
Rotary Pumps
>
Rotary Gear Pump Heads

3 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

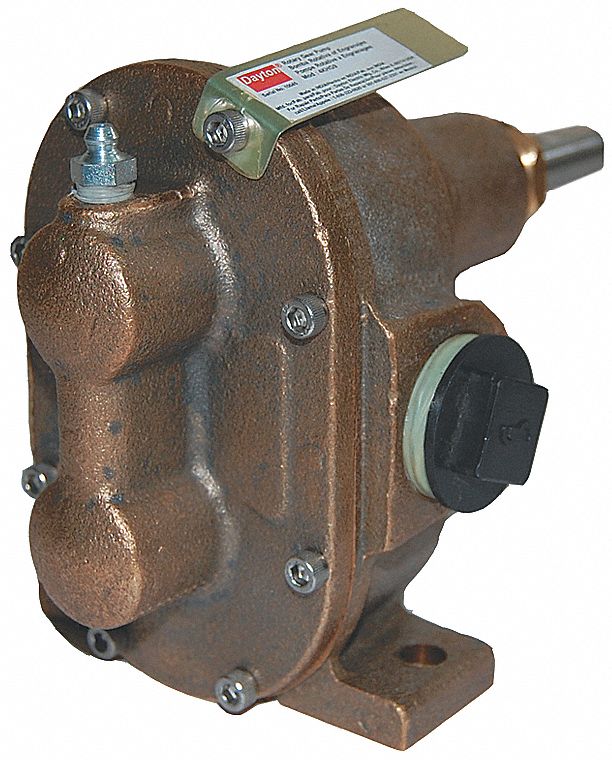

Rotary Gear Pump Head, Light Duty, with Zerk Fittings, Without Relief Valve, Port Size 1/2 In., Shaft Dia. 0.63 In., Shaft Height 2 5/8 In., 10.8 GPM @ Freeflow, 1/3 HP @ Free Flow, Suction Lift 11.5 Ft., Pump RPM 1725, 10.7 GPM @ 25 PSI, 3/4 HP @ 25 PSI, Max. Pressure 100 PSI, PTFE, Kevlar Packing Seal, Bronze Gear, Warranty Length 1 Year

Grainger Item #	4KHG7
Price (ea.)	$328.75
Brand	DAYTON
Mfr. Model #	4KHG7
UNSPSC #	40151551
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	9.813
Availability	Typically in Stock
Catalog Page No.	4143
Country of Origin (Country of Origin is subject to change.)	India

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Rotary Gear Pump Head
Type		Light Duty, with Zerk Fittings
Pump Body Material		Bronze
Port Size (In.)		1/2
GPM @ Freeflow		10.8
HP @ Free Flow		1/3
GPM @ Freeflow @ 1725 RPM		10.8
HP @ Free Flow @ 1725 RPM		3/4
GPM @ 20 PSI		10.8
GPM @ 25 PSI		10.7
HP @ 25 PSI		3/4
GPM @ 40 PSI		10.3
GPM @ 50 PSI		10.6
HP @ 50 PSI		1
GPM @ 60 PSI		9.9
GPM @ 75 PSI		10.5
HP @ 75 PSI		1
GPM @ 80 PSI		9.5
GPM @ 100 PSI		8.9
HP @ 100 PSI		1-1/2
Suction Lift (Ft.)		11.5
Suction Lift (Ft.) @ 1725 RPM		12.3
Pump RPM		1725
Max. Temp. (F)		210
Temp. Range		-20 to 210 F
Max. Pressure (PSI)		100
Max. Viscosity (SSU)		550
Design		Pedestal
Gear		Bronze
Length (In.)		4
Width (In.)		7
Height (In.)		3-5/8
O-Ring		Buna N
Relief Valve		Without
Seal		PTFE, Kevlar Packing
Shaft Dia. (In.)		0.63
Shaft Height (In.)		2-5/8
Shaft Material		304 Stainless Steel
Manufacturers Warranty Length		1 Year
