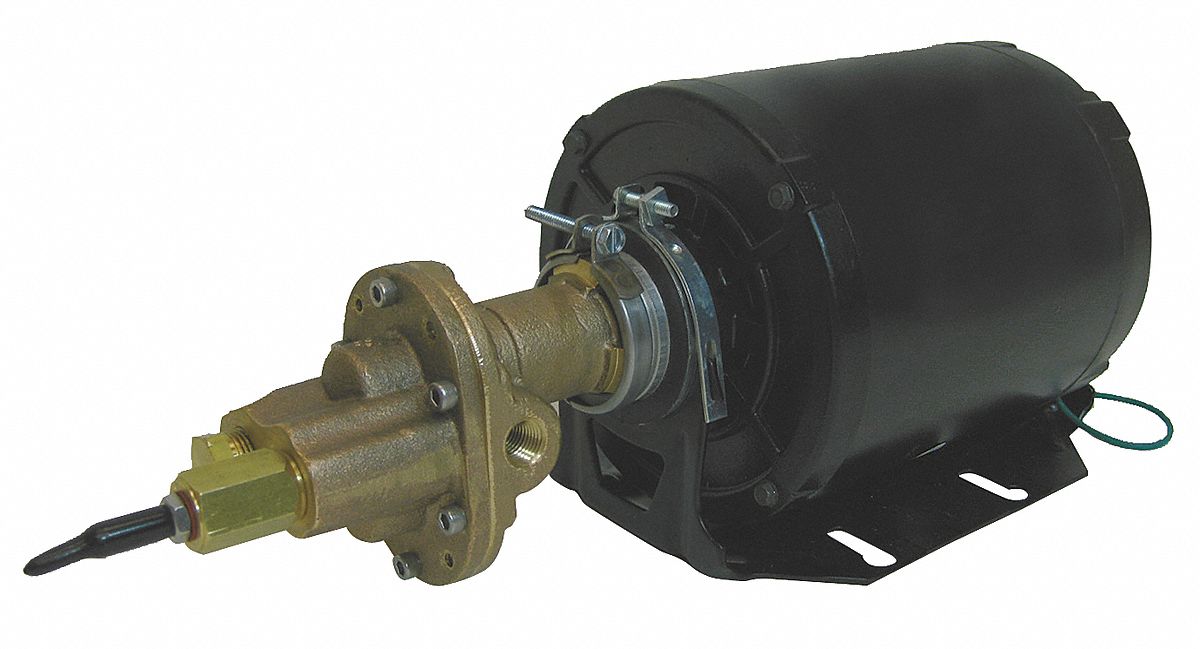

DAYTON Rotary Gear Pump, Bronze, 1/3 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Rotary Gear Pump, Carbonator, 1/3 HP, Voltage 115, 6 Amps AC, Motor Frame Carbonator, Motor Enclosure ODP, Port Size 1/4 In., Suction Lift 3.2 Ft., GPM @ Freeflow 2.2, GPM @ 100 PSI 1.3, GPM Max. 2.2, Max. Pressure (PSI) 100, With Relief Valve

Grainger Item #	4KHP4
Price (ea.)	$509.00
Brand	DAYTON
Mfr. Model #	4KHP4
UNSPSC #	40151551
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	32.45
Availability	Typically in Stock
Catalog Page No.	4144
Country of Origin (Country of Origin is subject to change.)	India

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Rotary Gear Pump
Type		Carbonator
HP		1/3
Voltage		115
Amps		6
Motor Frame		Carbonator
Motor Enclosure		ODP
Port Size (In.)		1/4
Suction Lift (Ft.)		3.2
GPM Max.		2.2
Max. Pressure (PSI)		100
Relief Valve		With
Seal		Buna N Mechanical
Body Material		Bronze
Shaft Material		303 Stainless Steel
Max. Temp. (F)		210
Gear Material		Bronze Spur
Max. RPM		1725
Bushing		Carbon Graphite
Length (In.)		5-3/4
Width (In.)		5-5/8
Height (In.)		15-1/4
GPM @ Freeflow		2.2
GPM @ 20 PSI		2.1
GPM @ 40 PSI		1.9
GPM @ 60 PSI		1.7
GPM @ 80 PSI		1.5
GPM @ 100 PSI		1.3
Max. Viscosity (SSU)		400
O-Ring		Buna N
Manufacturers Warranty Length		6 Months
