Pumps
>
Rotary Pumps
>
Rotary Gear Pumps

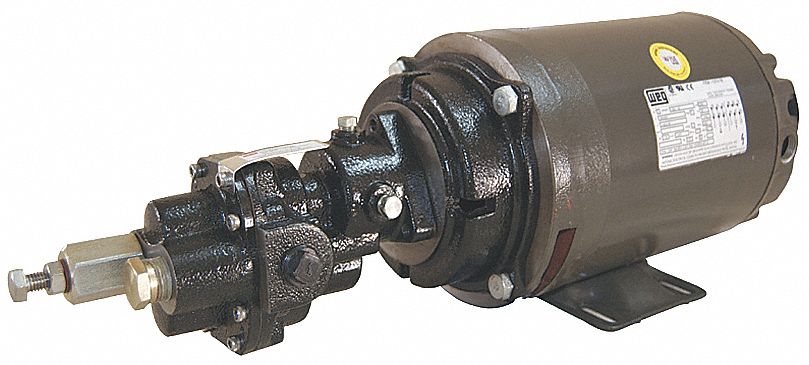

DAYTON Rotary Gear Pump, Cast Iron, 3 HP, 3 Ph

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Rotary Gear Pump, Close Coupled, 3 HP, 3 Phase, Voltage 230/460, 8.2/4.1 Amps AC, Motor Frame 182TC/184TC, Motor Enclosure ODP, Port Size 1 In., Suction Lift 19.5 Ft., GPM @ Freeflow 24.8, GPM @ 100 PSI 23.9, Max. Pressure (PSI) 125, Piston Relief Valve

Grainger Item #	4KHF2
Price (ea.)	$1,734.00
Brand	DAYTON
Mfr. Model #	4KHF2
UNSPSC #	40151551
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	105.0
Availability	Limited quantity available
Catalog Page No.	4144
Country of Origin (Country of Origin is subject to change.)	India

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Rotary Gear Pump
Type		Close Coupled
HP		3
Phase		3
Voltage		230/460
Amps		8.2/4.1
Motor Frame		182TC/184TC
Motor Enclosure		ODP
Port Size (In.)		1
Suction Lift (Ft.)		19.5
Max. Pressure (PSI)		125
Relief Valve		Piston
Seal		Viton Mechanical
Body Material		Cast Iron
Shaft Material		Steel
Temp. Range		32 to 280 F
Max. Temp. (F)		280
Gear Material		Steel Spur
Max. RPM		1725
Length (In.)		9-1/4
Width (In.)		13-2/3
Height (In.)		24-1/8
GPM @ Freeflow		24.8
GPM @ 20 PSI		24.7
GPM @ 40 PSI		24.5
GPM @ 60 PSI		24.3
GPM @ 100 PSI		23.9
