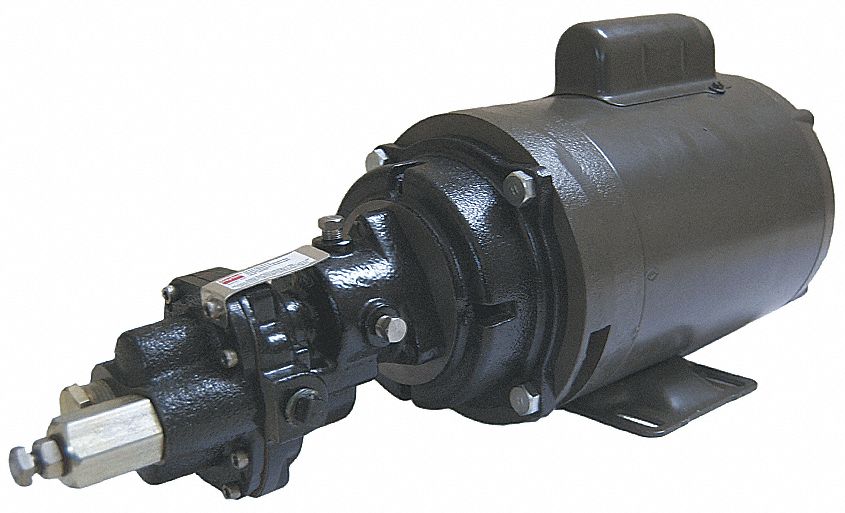

DAYTON Rotary Gear Pump, Cast Iron, 1 1/2 HP, 1 Ph

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Rotary Gear Pump, Close Coupled, 1 1/2 HP, 1 Phase, Voltage 115/230, 18.4/9.2 Amps AC, Motor Frame 56C, Motor Enclosure ODP, Port Size 1/2 In., Suction Lift 12.3 Ft., GPM @ Freeflow 10.8, GPM @ 100 PSI 10.2, Max. Pressure (PSI) 125, Piston Relief Valve

Grainger Item #	4KHE6
Price (ea.)	$1,174.00
Brand	DAYTON
Mfr. Model #	4KHE6
UNSPSC #	40151551
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	71.55
Availability	Typically in Stock
Catalog Page No.	4144
Country of Origin (Country of Origin is subject to change.)	India

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Rotary Gear Pump, Cast Iron, 1 1/2 HP, 1 Ph

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Rotary Gear Pump
Type		Close Coupled
HP		1-1/2
Phase		1
Voltage		115/230
Amps		18.4/9.2
Motor Frame		56C
Motor Enclosure		ODP
Port Size (In.)		1/2
Suction Lift (Ft.)		12.3
Max. Pressure (PSI)		125
Relief Valve		Piston
Seal		Viton Mechanical
Body Material		Cast Iron
Shaft Material		Steel
Temp. Range		32 to 280 F
Max. Temp. (F)		280
Gear Material		Steel Spur
Max. RPM		1725
Length (In.)		8-1/4
Width (In.)		12-13/16
Height (In.)		23-1/4
GPM @ Freeflow		10.8
GPM @ 20 PSI		10.7
GPM @ 40 PSI		10.6
GPM @ 60 PSI		10.5
GPM @ 100 PSI		10.2
