HVAC and Refrigeration
>
Cooling Fans and Accessories
>
Air Circulators

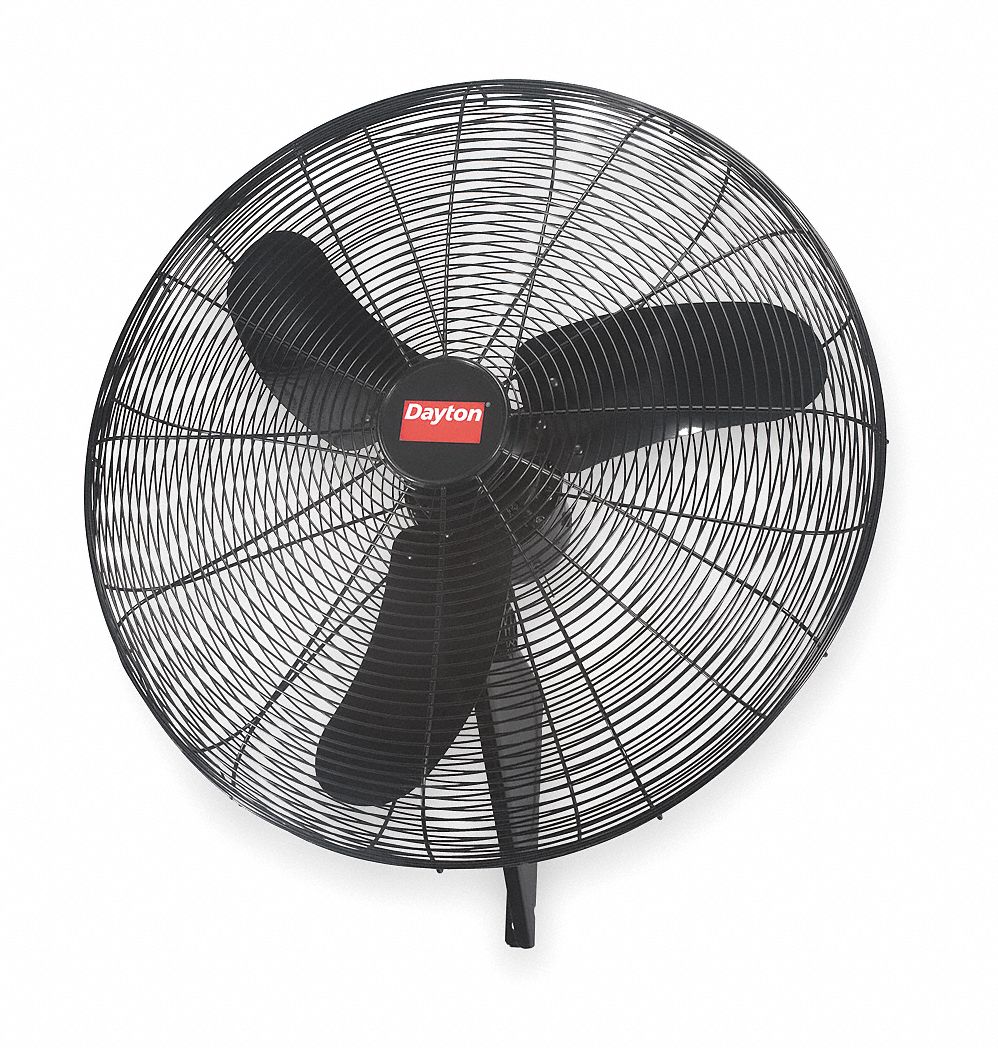

DAYTON Quiet Design AirCirc, 30 In, 7450 cfm, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Quiet Design Air Circulator, Blade Dia. 30 In., Stationary, Oscillating, Speeds 3, Voltage 115V, 1 Phase, CFM High 7450, CFM Low 3450, Air Velocity (FPM) @ 20 Ft. 700/520/300, Motor HP 1/4, Motor RPM 1010/860/530, Operating Amps 2.2/1.6/0.6, Mounting Location Wall, Ceiling or IBeamCommercial, Assembled Unassembled, CFM Medium 6090, CFM/Watt 30.2Includes Wall Mounting Bracket, Assembly Hardware and Safety Cable

Grainger Item #	2RDZ9
Price (ea.)	$404.75
Brand	DAYTON
Mfr. Model #	2RDZ9
UNSPSC #	40101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	53.5
Availability	Typically in Stock
Catalog Page No.	4435
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Quiet Design Air Circulator
Blade Dia.		30"
Mobile/Stationary		Stationary
Oscillating/Non-Oscillating		Oscillating
Speeds		3
Voltage		115V
Phase		1
CFM High		7450
CFM Low		3450
Air Velocity (FPM) @ 20 Ft.		700/520/300
Motor HP		1/4
Motor RPM		1010/860/530
Operating Amps		2.2/1.6/0.6
Mounting Location		Wall, Ceiling or IBeam
Environmental Applications		Commercial
Assembled		Unassembled
CFM Medium		6090
CFM/Watt		30.2
Sound Level		67.9/64.4/50.3dBA
Max. Ambient Temp.		130 Degrees F
Hz		60
Watts		245/185/70
Motor Type		Permanent Split Capacitor
Drive Type		Direct
Motor Enclosure		Totally Enclosed Air-Over
Motor Insulation		Class A
Thermal Protection		Auto
Bearing Type		Ball
Height		33-1/2"
Width		33-1/2"
Max. Depth		24"
Cord Length		10 ft.
Number of Blades		3
Blade Material		Steel
Shaft Dia.		1/2"
Housing Material		Steel
Guard Material		Steel
Wire Guard Finish		Black Polyester Powder Coat
Application		Spot Cooling and People Cooling
Standards		ETL/CETL/OSHA
Includes		Wall Mounting Bracket, Assembly Hardware and Safety Cable
