DAYTON Quiet Design AirCirc, 30 In, 7450 cfm, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Quiet Design Air Circulator, Blade Dia. 30 In., Stationary, Oscillating, Speeds 3, Voltage 115V, 1 Phase, CFM High 7450, CFM Low 3450, Air Velocity (FPM) @ 20 Ft. 700/520/300, Motor HP 1/4, Motor RPM 1010/860/530, Operating Amps 2.2/1.6/0.6, Mounting Location PedestalCommercial, Assembled Unassembled, CFM Medium 6090, CFM/Watt 30.2Includes Pedestal and Assembly Hardware

Grainger Item #	2RDZ7
Price (ea.)	$445.20
Brand	DAYTON
Mfr. Model #	2RDZ7
UNSPSC #	40101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	70.0
Availability	Typically in Stock
Catalog Page No.	4435
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

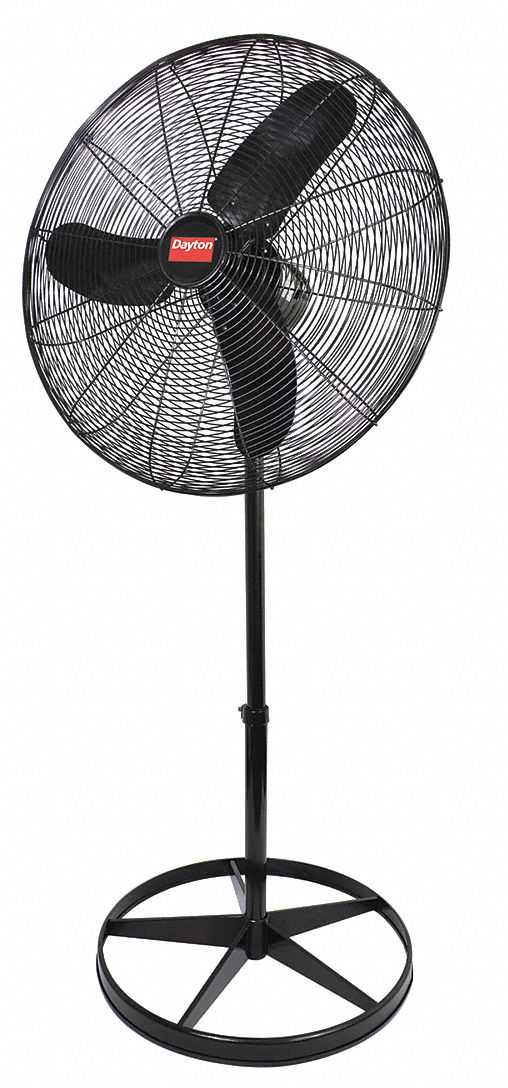

Quiet Design AirCirc, 30 In, 7450 cfm, 115V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Quiet Design Air Circulator
Blade Dia.		30"
Mobile/Stationary		Stationary
Oscillating/Non-Oscillating		Oscillating
Speeds		3
Voltage		115V
Phase		1
CFM High		7450
CFM Low		3450
Air Velocity (FPM) @ 20 Ft.		700/520/300
Motor HP		1/4
Motor RPM		1010/860/530
Operating Amps		2.2/1.6/0.6
Mounting Location		Pedestal
Environmental Applications		Commercial
Assembled		Unassembled
CFM Medium		6090
CFM/Watt		30.2
Sound Level		67.9/64.4/50.3dBA
Max. Ambient Temp.		130 Degrees F
Hz		60
Watts		245/185/70
Motor Type		Permanent Split Capacitor
Drive Type		Direct
Motor Enclosure		Totally Enclosed Air-Over
Motor Insulation		Class A
Thermal Protection		Auto
Bearing Type		Ball
Height		84"
Width		33-1/2"
Max. Depth		29-1/2"
Cord Length		10 ft.
Number of Blades		3
Blade Material		Steel
Shaft Dia.		1/2"
Housing Material		Steel
Guard Material		Steel
Wire Guard Finish		Black Polyester Powder Coat
Application		Spot Cooling and People Cooling
Standards		ETL/CETL/OSHA
Includes		Pedestal and Assembly Hardware
