HVAC and Refrigeration
>
Cooling Fans and Accessories
>
Air Circulators

DAYTON Quiet Design AirCirc, 24 In, 5030 cfm, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Quiet Design Air Circulator, Blade Dia. 24 In., Stationary, Oscillating, Speeds 3, Voltage 115V, 1 Phase, CFM High 5030, CFM Low 2280, Air Velocity (FPM) @ 20 Ft. 500/350/220, Motor HP 1/4, Motor RPM 1025/880/480, Operating Amps 2.0/1.6/0.6, Mounting Location PedestalCommercial, Assembled Unassembled, CFM Medium 4320, CFM/Watt 20.2Includes Pedestal and Assembly Hardware

Grainger Item #	2RDZ6
Price (ea.)	$482.50
Brand	DAYTON
Mfr. Model #	2RDZ6
UNSPSC #	40101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	66.4
Availability	Typically in Stock
Catalog Page No.	4435
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

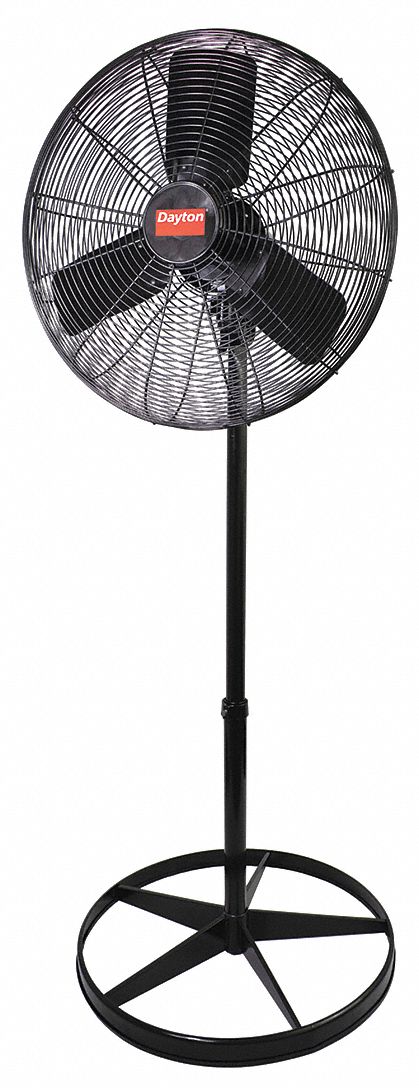

Quiet Design AirCirc, 24 In, 5030 cfm, 115V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Quiet Design Air Circulator
Blade Dia.		24"
Mobile/Stationary		Stationary
Oscillating/Non-Oscillating		Oscillating
Speeds		3
Voltage		115V
Phase		1
CFM High		5030
CFM Low		2280
Air Velocity (FPM) @ 20 Ft.		500/350/220
Motor HP		1/4
Motor RPM		1025/880/480
Operating Amps		2.0/1.6/0.6
Mounting Location		Pedestal
Environmental Applications		Commercial
Assembled		Unassembled
CFM Medium		4320
CFM/Watt		20.2
Sound Level		69.4/65.1/48.6dBA
Max. Ambient Temp.		130 Degrees F
Hz		60
Watts		250/190/70
Motor Type		Permanent Split Capacitor
Drive Type		Direct
Motor Enclosure		Totally Enclosed Air-Over
Motor Insulation		Class A
Thermal Protection		Auto
Bearing Type		Ball
Height		81"
Width		29-1/2"
Max. Depth		29-1/2"
Cord Length		10 ft.
Number of Blades		3
Blade Material		Steel
Shaft Dia.		1/2"
Housing Material		Steel
Guard Material		Steel
Wire Guard Finish		Black Polyester Powder Coat
Application		Spot Cooling and People Cooling
Standards		ETL/CETL/OSHA
Includes		Pedestal and Assembly Hardware
