Pumps
>
Rotary Pumps
>
Roller Pumps

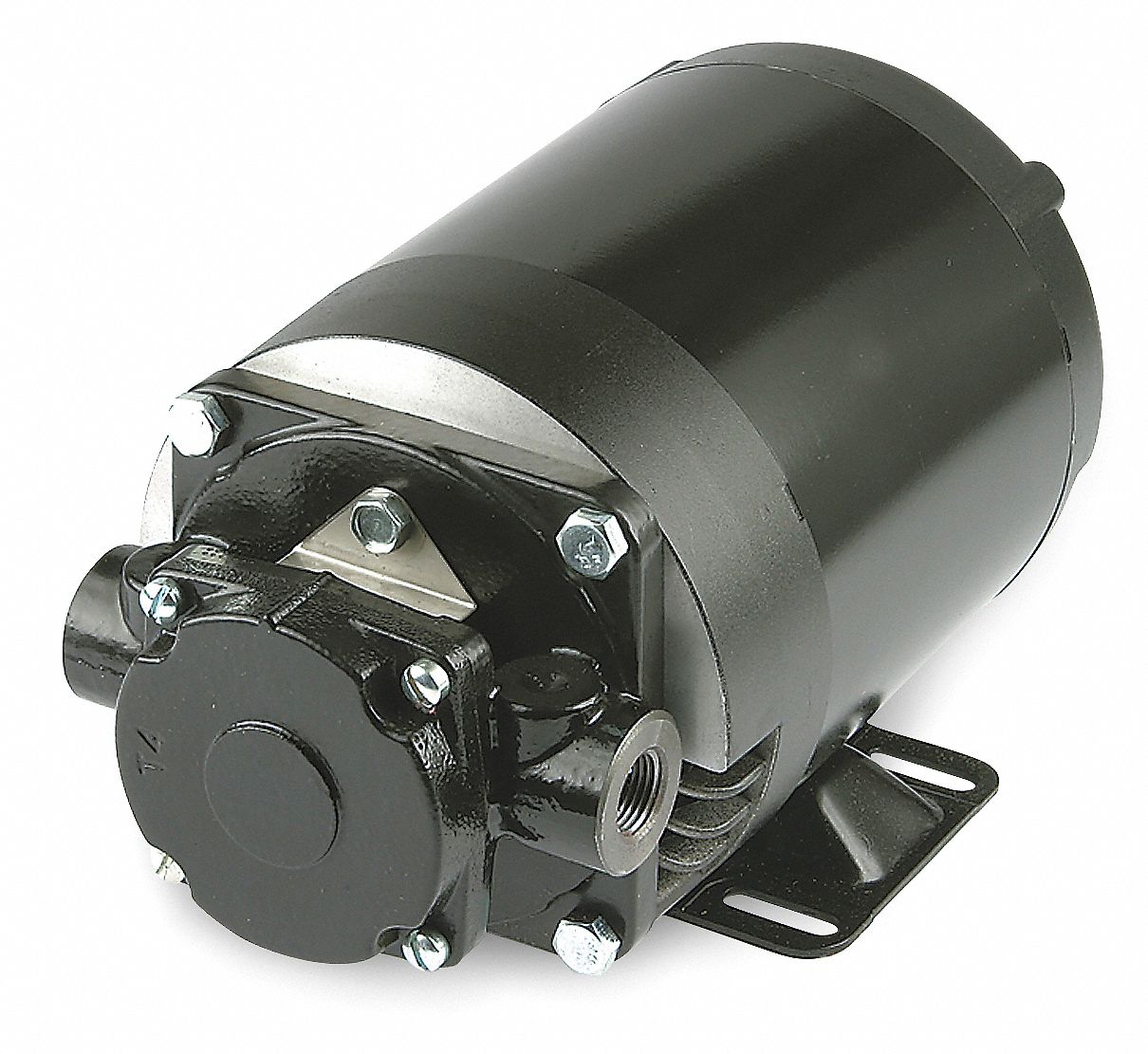

DAYTON Pump, Hot Cooking Oil

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pump, Hot Cooking Oil, Roller, Motor Enclosure ODP, 1 Phase, Voltage 115, 11.8/5.9 Amps AC, 56C Motor Frame, Roller Material PTFE, Viton Shaft Seal, Heavy Duty Motor Ball Bearings, Max Temp 375 F, Port Type 1/2 FNPT Inlet and Outlet, Shaft Dia 5/8 In, Cast Iron Construction, 1725 Max RPM, HP @ 50 PSI 1/3, GPM @ 0 PSI 3.8, @ 25 PSI 3.5, @ 50 PSI 3.0, Length 6 3/4 In, Height 6 1/2 In, Width 11 3/4 In, Standards NSF

Grainger Item #	6PA37
Price (ea.)	$721.00
Brand	DAYTON
Mfr. Model #	6PA37
UNSPSC #	40151519
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	29.8
Availability	Typically in Stock
Catalog Page No.	4145
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Roller Pump
Type		With Motor
HP		1/3
Phase		1
Voltage		115
Amps		6.2
Port Size (In.)		1/2
NEMA Motor Frame		Non Standard
Motor Enclosure		ODP
Body Material		Cast Iron
Roller Material		PTFE
RPM		1725 Max
GPM Max.		3.8
GPM @ Freeflow		3.8
GPM @ 10 PSI		3.70
GPM @ 20 PSI		3.6
GPM @ 30 PSI		3.5
GPM @ 40 PSI		3.4
Max. Pressure (PSI)		40
Suction Lift (Ft.)		5.6
Max. Viscosity (SSU)		40
Relief Valve		No
Seal		Viton Mechanical
Bearings		Heavy Duty Motor Ball
Temp. Range (F)		40-375
Shaft Dia. (In.)		5/8
Height (In.)		6 1/2
Length (In.)		6 3/4
Width (In.)		11 3/4
Standards		NSF
