Pumps
>
Flexible Impeller Pumps
>
Flexible Impeller Pumps

3.8-3.8 Amp

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pump, Self-Priming Flexible Impeller, 1/2 HP, Voltage 115/208-230, Amps 7.8/3.8-4.6, Inlet/Outlet (In.) 1, NEMA Motor Frame 56, Impeller Material Epichlorohydrin, Length (In.) 20, Width (In.) 9, Height (In.) 13-1/2, GPM of Water @ 10 Ft. of Head 25, GPM of Water @ 30 Ft. of Head 11, Max. Head (Ft.) 70, Max. Pressure (PSI) 30, Suction Lift (Ft.) 18, Max. SSU @ 1725 RPM 500, GPM of Water @ 0 Ft. of Head 30, GPM of Water @ 11 Ft. of Head 24, GPM of Water @ 20 Ft. of Head 16

Grainger Item #	6KHN6
Price (ea.)	$2,067.00
Brand	DAYTON
Mfr. Model #	6KHN6
UNSPSC #	40151504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	56.5
Availability	Item ships within 4 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

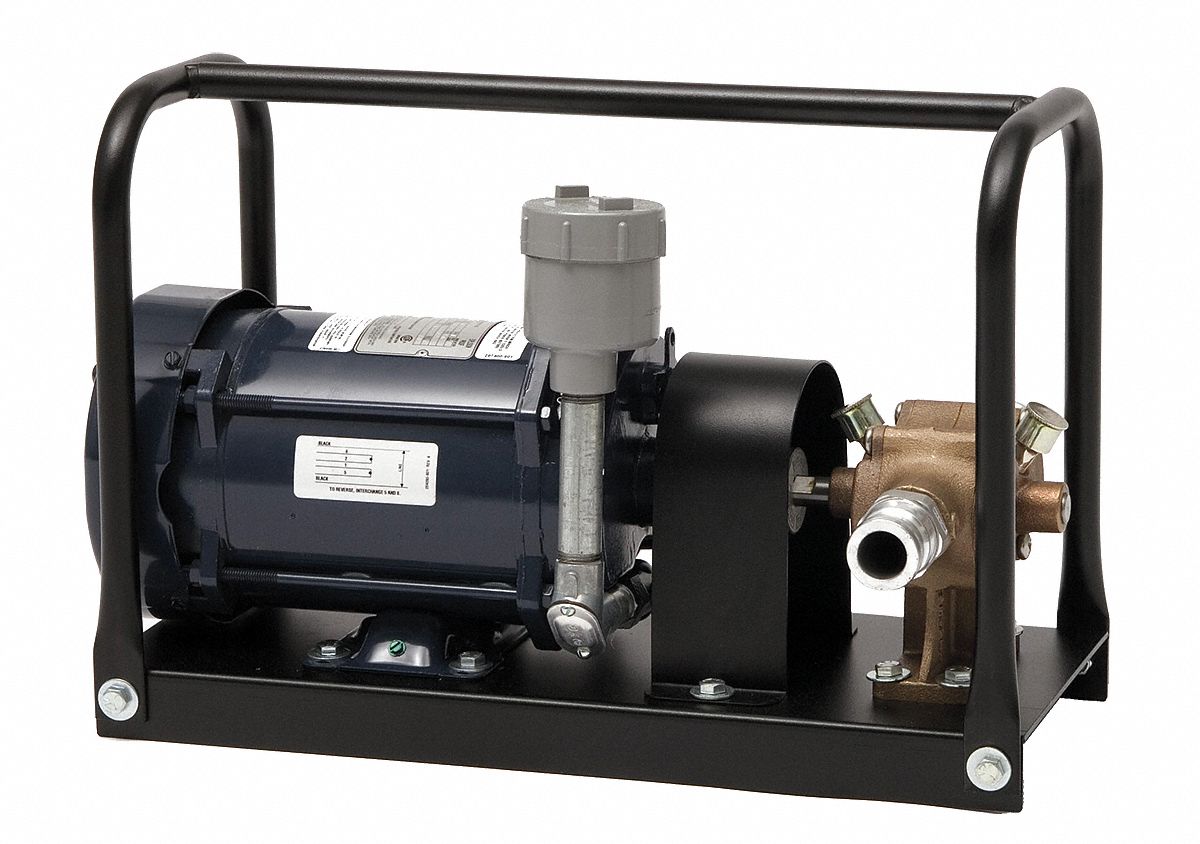

Pump, 1/2HP, 115/208-230V, 7.6/3.8-3.8 Amp

Enlarge Image

Item		Pump
Type		Self-Priming Flexible Impeller
HP		1/2
Voltage		115/208-230
Amps		7.8/3.8-4.6
Inlet/Outlet (In.)		1
NEMA Motor Frame		56
Impeller Material		Epichlorohydrin
Length (In.)		20
Width (In.)		9
Height (In.)		13-1/2
GPM of Water @ 10 Ft. of Head		25
GPM of Water @ 30 Ft. of Head		11
Max. Head (Ft.)		70
Max. Pressure (PSI)		30
Suction Lift (Ft.)		18
Max. SSU @ 1725 RPM		500
GPM of Water @ 0 Ft. of Head		30
GPM of Water @ 11 Ft. of Head		24
GPM of Water @ 20 Ft. of Head		16
GPM of Water @ 23 Ft. of Head		14
GPM of Water @ 40 Ft. of Head		7
GPM of Water @ 60 Ft. of Head		1
Prime in Feet		18
Housing Material		Bronze
Shaft Material		Stainless Steel
Seal		Grease
Max. Viscosity		500
RPM		1725
Self-Priming		Yes
Motor Type		Split-Phase
Temp. Range (F)		180
Application		Water, Chemical Transfer
Characteristics		Bronze
Includes		Quick Connect Hose Fitting - Male End Only
