Pumps
>
Machine Tool and Parts Washer Pumps
>
Machine Tool Pumps

2.83Amp

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pump, Coolant, HP 1/4, Phase 1, Amps 5.59/2.83, Voltage 115/230, Length 11 In., Width 8 7/16 In., Height 21 7/16 In., Inlet/Outlet 1 1/4 In., RPM 1750, Motor Enclosure TEFC, GPM of Water @ 1 Ft. of Head 55.5, GPM of Water @ 3 Ft. of Head 54, GPM of Water @ 5 Ft. of Head 52, GPM of Water @ 9 Ft. of Head 45.5, 18, Max. Immersion Depth 8 1/4 In., Max. Recommended Viscosity 500 SSU, Max. Temp. 200 F

Grainger Item #	4JPG8
Price (ea.)	$673.50
Brand	DAYTON
Mfr. Model #	4JPG8
UNSPSC #	40151504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	50.0
Availability	Typically in Stock
Catalog Page No.	4108
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

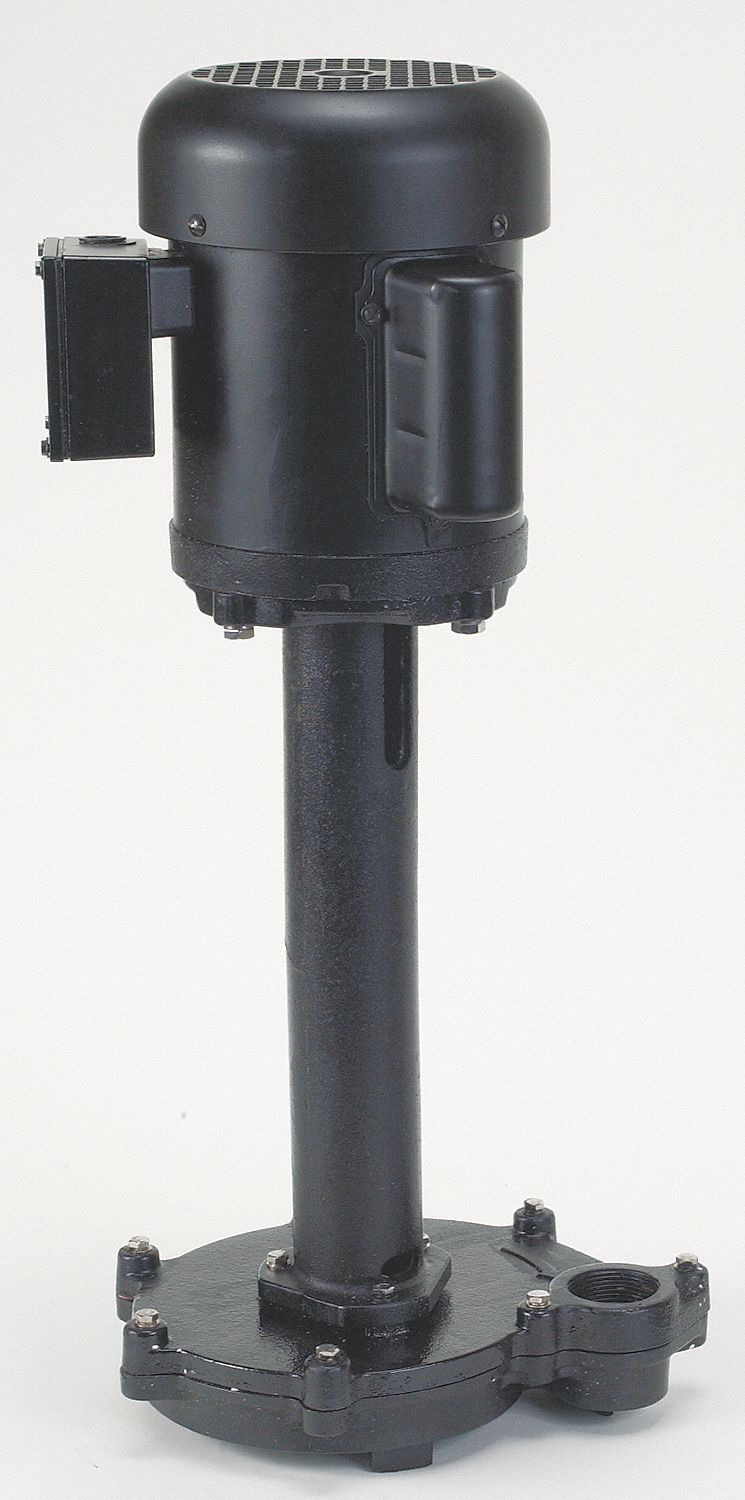

Pump, Coolant, 1/4HP, 115/230V, 5.59/2.83Amp

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pump
Type		Coolant
HP		1/4
Phase		1
Amps		5.59/2.83
Voltage		115/230
Length (In.)		11
Width (In.)		8-7/16
Height (In.)		21-7/16
Dia. (In.)		8-3/8
Discharge Port (In.)		1-1/4
Inlet/Outlet (In.)		1-1/4
RPM		1750
Motor Type		PSC
Motor Enclosure		TEFC
GPH of Water @ 1 Ft. of Head		3330
GPH of Water @ 2 Ft. of Head		3276
GPH of Water @ 3 Ft. of Head		3240
GPH of Water @ 5 Ft. of Head		3120
GPH of Water @ 8 Ft. of Head		2868
GPH of Water @ 9 Ft. of Head		2730
GPH of Water @ 10 Ft. of Head		2610
GPM of Water @ 1 Ft. of Head		55.5
GPM of Water @ 3 Ft. of Head		54
GPM of Water @ 5 Ft. of Head		52
GPM of Water @ 6 Ft. of Head		51
GPM of Water @ 7 Ft. of Head Low		49.3
GPM of Water @ 9 Ft. of Head		45.5
GPM of Water @ 10 Ft. of Head		43.5
GPM of Water @ 12 Ft. of Head		38.2
GPM of Water @ 13 Ft. of Head Low		35.3
GPM of Water @ 15 Ft. of Head		26.4
GPM of Water @ 16 Ft. of Head		19.6
Shut-Off (Ft.)		18
GPM of Oil 500 SSU @ 3 Ft. of Head		32
GPM of Oil 500 SSU @ 6 Ft. of Head		25.8
GPM of Oil 500 SSU @ 9 Ft. of Head		19.2
GPM of Oil 500 SSU @ 12 Ft. of Head		10.8
GPM of Oil 500 SSU @ 15 Ft. of Head		1.4
Min. Immersion Depth (In.)		3
Max. Immersion Depth (In.)		8-1/4
Nominal Tank Depth (In.)		10
Impeller Material		304 SS
Body Material		Cast Iron
Max. Recommended Viscosity		500 SSU
Max. Temp.		200 F
Shaft Material		Carbon Steel
Shaft Seal		Nitrile Butadiene Rubber
Elastomer		NBR
Application		For Machining Lubricants, Coolants, Flushing and Circulation
For Use With		Non-Flammable Liquids Compatible with Pump Component Materials
