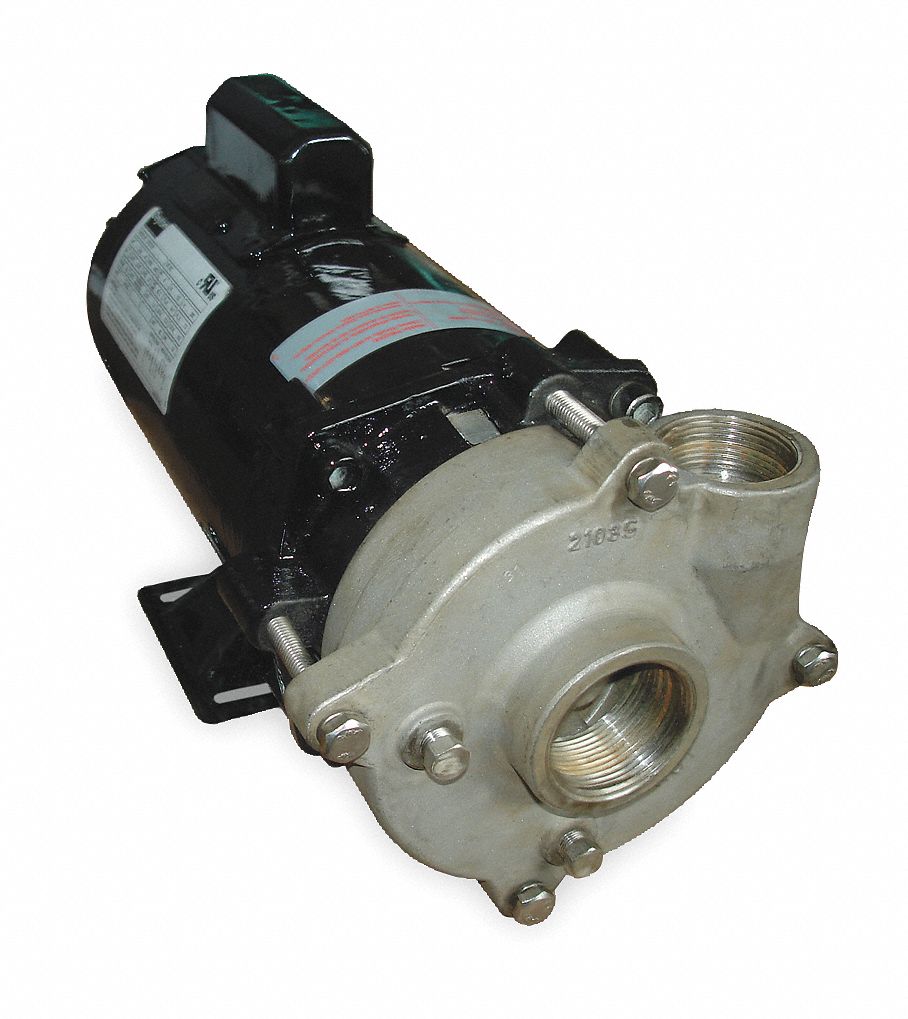

DAYTON Pump, Centrifugal, 1/2 HP, 1 Ph, 115/230V

Pump, Centrifugal, 1/2 HP, 1 Phase, Voltage 115/230, 8.4/4.8 Amps, Inlet 1 1/4 In., Outlet 1 In., Motor Enclosure ODP, Housing Material Stainless Steel, Impeller Type Semi Open Non-Clogging, Impeller Material Stainless Steel, Max. Head 44 Ft., Seal Type Mechanical, Length 13 1/2 In., Width 6 5/8 In., Height 5 7/8 In., 3450 Motor RPM, 60 Hz, Service Factor 1.6, Inlet Pressure 210 PSI
  • Grainger Item #2ZWT9
    Price (ea.)$753.50
    BrandDAYTON
    Mfr. Model #2ZWT9
    UNSPSC #40151503
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)36.62
    Availability Typically in Stock
    Catalog Page No.4075
    Country of Origin
    (Country of Origin is subject to change.)
    India
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemPump
TypeCentrifugal
HP1/2
Phase1
Voltage115/230
Amps8.4/4.8
Inlet (In.)1-1/4
Outlet (In.)1
Motor EnclosureODP
Housing MaterialStainless Steel
Impeller TypeSemi Open Non-Clogging
Impeller MaterialStainless Steel
Max. GPM @ Head (Ft.)67 @ 10
Best Efficiency GPM @ Head (Ft.)38 @ 27
Min. GPM @ Head (Ft.)10 @ 40
Max. Head (Ft.)44
GPM of Water @ 10 Ft. of Head67
GPM of Water @ 15 Ft. of Head63
Seal TypeMechanical
Seal MaterialViton, Carbon, Ceramic, SS
Length (In.)13-1/2
Width (In.)6-5/8
Height (In.)5-7/8
NEMA/IEC Frame56J
Motor RPM3450
Hz60
Service Factor1.6
Wetted MaterialsSS, Viton, Carbon, Ceramic
Volute MaterialStainless Steel
Shaft MaterialStainless Steel
Shaft Size (In.)5/8
Screw MaterialStainless Steel
Seal ApplicationLong life When not Run Dry or Pumping Abrasives
Max. Liquid Temp. (F)200
GPM of Water @ 20 Ft. of Head57
GPM of Water @ 25 Ft. of Head48
GPM of Water @ 30 Ft. of Head40
GPM of Water @ 40 Ft. of Head10
Best Efficiency Range GPM @ Head (Ft.)25-50 @ 35-15 Ft.
Max. Specific Gravity1.0
Max. Case Pressure (PSI)200
Max. Fluid Viscosity100 SSU
Inlet Pressure (PSI)210
Bearing TypeBall
Max. Pressure (PSI)19
DutyContinuous
Port Rotation4 Position
Drain PlugSide and bottom
Manufacturers Warranty Length1 Year
ApplicationHigh Flow at Low Head Pressure
For Use WithNonflammable and Nonabrasive Liquids
IncludesManual
