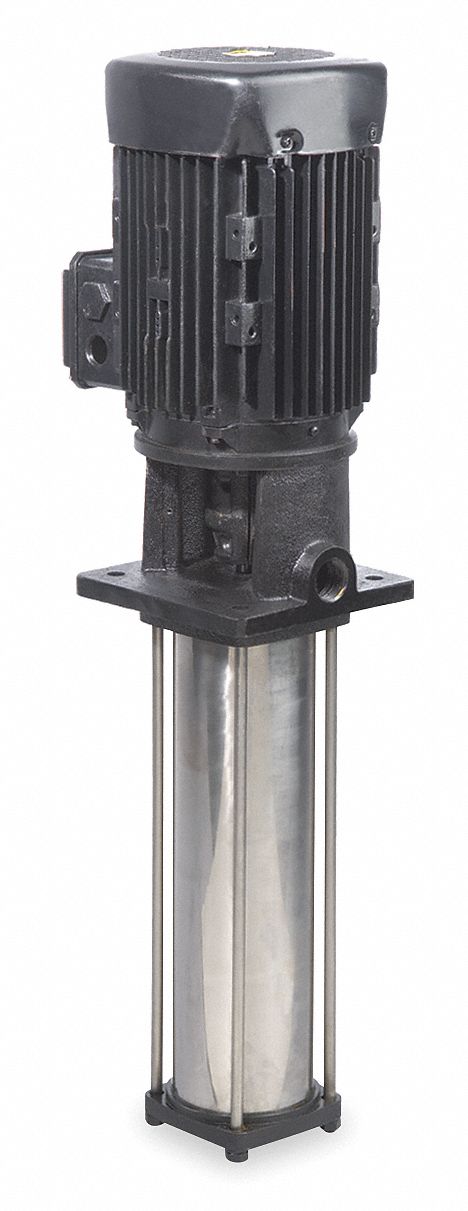

DAYTON Pump, Centrifugal Coolant, 4 Stages

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pump, Centrifugal Coolant, 1 HP, 3 Phase, Voltage 230/460, 3.5/1.8 Amps, Number of Stages 4, Discharge Port 1 In., Bolt Circle Dia. 8 1/2 In., Motor Type TEFC, GPH of Water @ 1 Ft. of Head 1680, GPH of Water @ 5 Ft. of Head 1680, GPH of Water @ 10 Ft. of Head 1680, Shut-Off 140 Ft., GPM of Oil 500 SSU @ 3 Ft. of Head 22, GPM of Oil 500 SSU @ 15 Ft. of Head 22, Application Machine Tool Coolants, Light Oils

Grainger Item #	1XLL8
Price (ea.)	$1,532.00
Brand	DAYTON
Mfr. Model #	1XLL8
UNSPSC #	40151533
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	57.5
Availability	Typically in Stock
Catalog Page No.	4108
Country of Origin (Country of Origin is subject to change.)	South Korea

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pump
Type		Centrifugal Coolant
HP		1
Phase		3
Amps		3.5/1.8
Voltage		230/460
Number of Stages		4
Length (In.)		7-1/2
Width (In.)		7-1/2
Height (In.)		20-3/4
Discharge Port (In.)		1
Bolt Circle Dia. (In.)		8-1/2
Motor Type		TEFC
GPM @ 25 PSI		22
GPM @ 50 PSI		10
Max. Pressure (PSI)		65
GPM of Oil 500 SSU @ 3 Ft. of Head		22
GPM of Oil 500 SSU @ 6 Ft. of Head		22
GPM of Oil 500 SSU @ 9 Ft. of Head		22
GPM of Oil 500 SSU @ 12 Ft. of Head		22
GPM of Oil 500 SSU @ 15 Ft. of Head		22
GPM of Oil 500 SSU @ 18 Ft. of Head		22
GPM of Oil 500 SSU @ 21 Ft. of Head		22
GPM of Oil 500 SSU @ 24 Ft. of Head		22
Max. Immersion Depth (In.)		5-1/2
RPM		3450
Impeller Material		304 Stainless Steel
Body Material		Cast Iron
Max. Recommended Viscosity		500 SSU
Max. Suction Lift (Ft.)		3
Max. Temp.		180 F
Shaft Material		304 Stainless Steel
Shaft Seal		Silicon Carbide
Elastomer		Viton
Application		Machine Tool Coolants, Light Oils
For Use With		Non-Flammable Liquids Compatible with Pump Component Materials
Includes		By-Pass Kit
