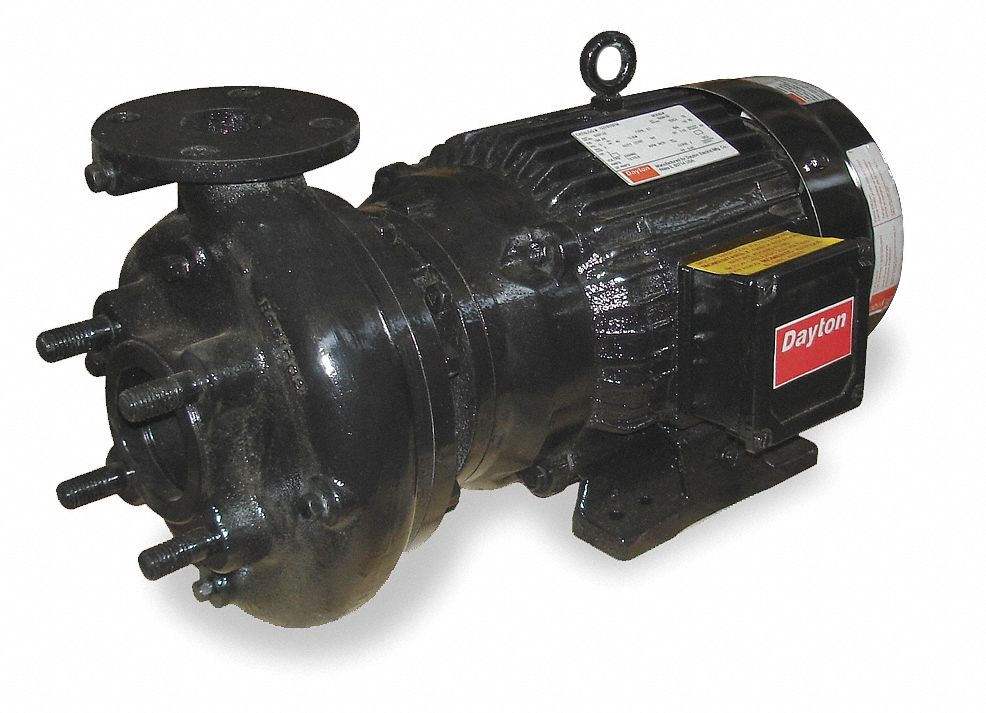

DAYTON Pump, Centrifugal, 5 HP, 13.70/6.80 Amps

Pump, Straight Centrifugal, 5 HP, 3 Phase, Voltage 230/460, 13.70/6.80 Amps, 60 Hz, Inlet 2 In., Outlet 1 1/2 In., Motor Enclosure TEFC, Motor RPM 3500, Service Factor 1.0, Impeller Material Bronze, Housing Material Cast Iron, Seal Type Mechanical, Max. Head 111.0 Ft., Inlet Pressure 100 PSI, Impeller Type Enclosed, Max. Dia. Solids 0.47 In., Standard 125 PSI Cast Iron Flanges Length 20.62 In., Width 11.14 In., Height 10.5 In.
  • Grainger Item #1TMU7
    Price (ea.) N/A
    BrandDAYTON
    Mfr. Model #1TMU7
    UNSPSC #40151510
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)153.0
    Availability Item no longer available
    Catalog Page No. N/A
    Country of Origin
    (Country of Origin is subject to change.)    		India
  •   This Item no longer available and cannot be ordered online.

    Some item(s) may be available through your local branch. An alternate item(s) may be available online. See the Alternate Products tab below.
    OR

    Compare Alternate Items
  • Price shown may not reflect your price. Sign in or register.
ItemPump
TypeStraight Centrifugal
Housing MaterialCast Iron
HP5
Phase3
Voltage230/460
Amps14.0/7.0
Hz60
Inlet (In.)2
Outlet (In.)1-1/2
Motor EnclosureTEFC
NEMA/IEC Frame184JM
Motor RPM3500
Motor Type3-Phase
Service Factor1.15
Impeller TypeEnclosed
Impeller MaterialBronze
Max. Dia. Solids (In.)0.47
Volute MaterialCast-Iron
Shaft Material410 Stainless Steel
Screw MaterialZinc Plated
Seal TypeMechanical
Seal MaterialCarbon Ceramic, NBR Elastomer, 304 Stainless Steel
Seal ApplicationNonflammable and Nonabrasive Liquids Compatible with Seal Component Materials
Max. Liquid Temp. (F)180
GPM of Water @ 40 Ft. of Head207
GPM of Water @ 50 Ft. of Head196
GPM of Water @ 60 Ft. of Head183
GPM of Water @ 70 Ft. of Head164
GPM of Water @ 80 Ft. of Head138
GPM of Water @ 90 Ft. of Head105
GPM of Water @ 100 Ft. of Head66
Max. Head (Ft.)110
Min. GPM @ Head (Ft.)90 @ 100
Max. GPM @ Head (Ft.)233 @ 40
Best Efficiency GPM @ Head (Ft.)155 @ 80
Best Efficiency Range GPM @ Head (Ft.)169-117 GPM @ 69-86 Ft
Max. Specific Gravity1.0
Wetted MaterialsCI, Bronze, Carbon, Ceramic, Buna N
Max. Case Pressure (PSI)200
Max. Fluid Viscosity100 SSU
Inlet Pressure (PSI)100
Bearing TypeDouble Sealed Ball Bearing
DutyContinuous
Port Rotation90 Increments
Drain Plug4 Position
Agency ComplianceC-UL Approval in Motor
Manufacturers Warranty Length1 Year
ApplicationHeating and Cooling, Recirculation, Booster Service and Other Industrial Liquid Applications
For Use WithNonflammable Liquids Compatible with Pump Component Materials
Length (In.)20.62
Width (In.)11.14
Height (In.)10-1/2
IncludesManual
