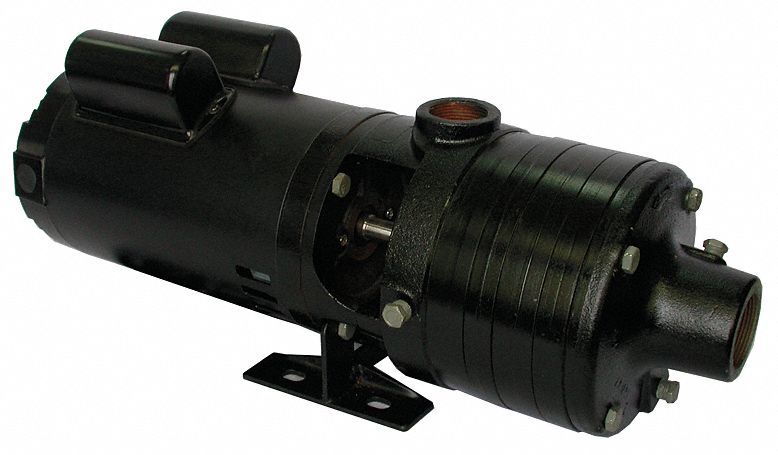

DAYTON Pump, Pressure Booster, 3 HP

| Write a Review
| Read all Reviews(1)
| Read all Ask & Answer

Pressure Booster Pump, High-Volume, ODP, Housing Material Cast Iron, 3 HP, 1 Phase, Voltage 230, 13.5 Amps, 60 Hz, Inlet 1-1/2 In NPT, Outlet 1-1/4 In NPT, Max. Pressure 95 psi, Suction Lift 25 Ft., Max. Case Pressure 160 psi, 3450 RPM, Motor Type Permanent Split Capacitor, Continuous Duty, Closed, Brass Impeller, Seal Material Stainless Steel, Buna, Carbon/Silicon Carbide, Max. Liquid Temp. 200F, Max. Fluid Viscosity 31 SSU, CSA, CUS, UL Listed, Includes Manual

Grainger Item #	5UXJ4
Price (ea.)	$1,456.00
Brand	DAYTON
Mfr. Model #	5UXJ4
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	95.0
Availability	Limited quantity available
Catalog Page No.	4081
Country of Origin (Country of Origin is subject to change.)	China
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pressure Booster Pump
Type		High-Volume
Motor Enclosure		ODP
Housing Material		Cast Iron
HP		3
Phase		1
Voltage		230
Amps		13.5
Hz		60
Inlet (In.)		1-1/2 NPT
Outlet (In.)		1-1/4 NPT
GPM @ 25 PSI		57
GPM @ 30 PSI		50
GPM @ 35 PSI		45
GPM @ 40 PSI		43
GPM @ 50 PSI		42
GPM @ 60 PSI		40
GPM of Water @ 70 PSI		35
GPM @ 80 PSI		29
GPM of Water @ 90 PSI		22
Max. Pressure (PSI)		95
Suction Lift (Ft.)		25
Max. Case Pressure (PSI)		160
Max. PSI Boost @ 2-10 GPM		93
Max. PSI Boost @ 20 GPM		91
Max. PSI Boost @ 30 GPM		78
Max. GPM @ PSI		57 @ 25
Best Efficiency GPM @ PSI		27 @ 85
Min. GPM @ PSI		19 @ 90
Pressure Range (PSI)		0 to 95
Best Efficiency GPM @ Head (Ft.)		27 @ 196
Best Efficiency Range GPM @ Head (Ft.)		37-20 GPM @ 160-216 Ft
Motor RPM		3450
Motor Type		Permanent Split Capacitor
Duty		Continuous Duty
Wetted Materials		Brass, Cast Iron, Stainless Steel, Buna N, Carbon, Ceramic
Impeller Material		Brass
Impeller Type		Closed
Diffuser Material		Cast Iron
Seal Material		Stainless Steel, Buna, Carbon/Silicon Carbide
Seal Type		Mechanical
Shaft Material		Stainless Steel
Seal Application		Clear Water Below 200 PSI
Bearing Type		Permanently Lubricated Ball
Max. Liquid Temp. (F)		200
Min. Inlet Flow Required		2 GPM
Max. Inlet Pressure (PSI)		65
Stages		3
Max. Fluid Viscosity		31 SSU
Plug or Connector Type		Direct Wire
Length (In.)		21-3/8
Width (In.)		7
Height (In.)		8-3/4
Motor Ambient Temp. Rating		149 Degrees F
Service Factor		1
Max. Working Pressure (PSI)		160
NEMA/IEC Frame		56J
For Use With		Nonflammable Liquids Compatible with Pump Component Materials
Application		Pressure Boosting, Pressure Cleaning, Spray or Mist Systems, Reverse Osmosis, Water Circulation
Agency Compliance		CSA, CUS, UL Listed
Manufacturers Warranty Length		1 Year
Includes		Manual
