Motors
>
Definite Purpose AC Motors
>
Farm Duty Motors

DAYTON Poultry Fan Mtr, PSC, TEAO, 1/2 HP, 850 RPM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Poultry Fan Motor, PSC, 1/2 HP, Nameplate RPM 850, Voltage 115/230, 1 Phase, Frame 48Y, Totally Enclosed Air-Over, Full Load Amps 6.0/3.0, 60 Hz, Stud Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.25, Ball Bearings, Max. Ambient Temperature 40 Degrees C, CW/CCW Rotation, Overall Length 10-13/16 In., Shaft Dia. 5/8 In., Shaft Length 2-5/8 In., Frame Material Rolled Steel, Includes Slinger, Gasketed Capacitor Cover

Grainger Item #	1YAZ3
Price (ea.)	$289.75
Brand	DAYTON
Mfr. Model #	1YAZ3
UNSPSC #	26101603
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	22.51
Availability	Typically in Stock
Catalog Page No.	56
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

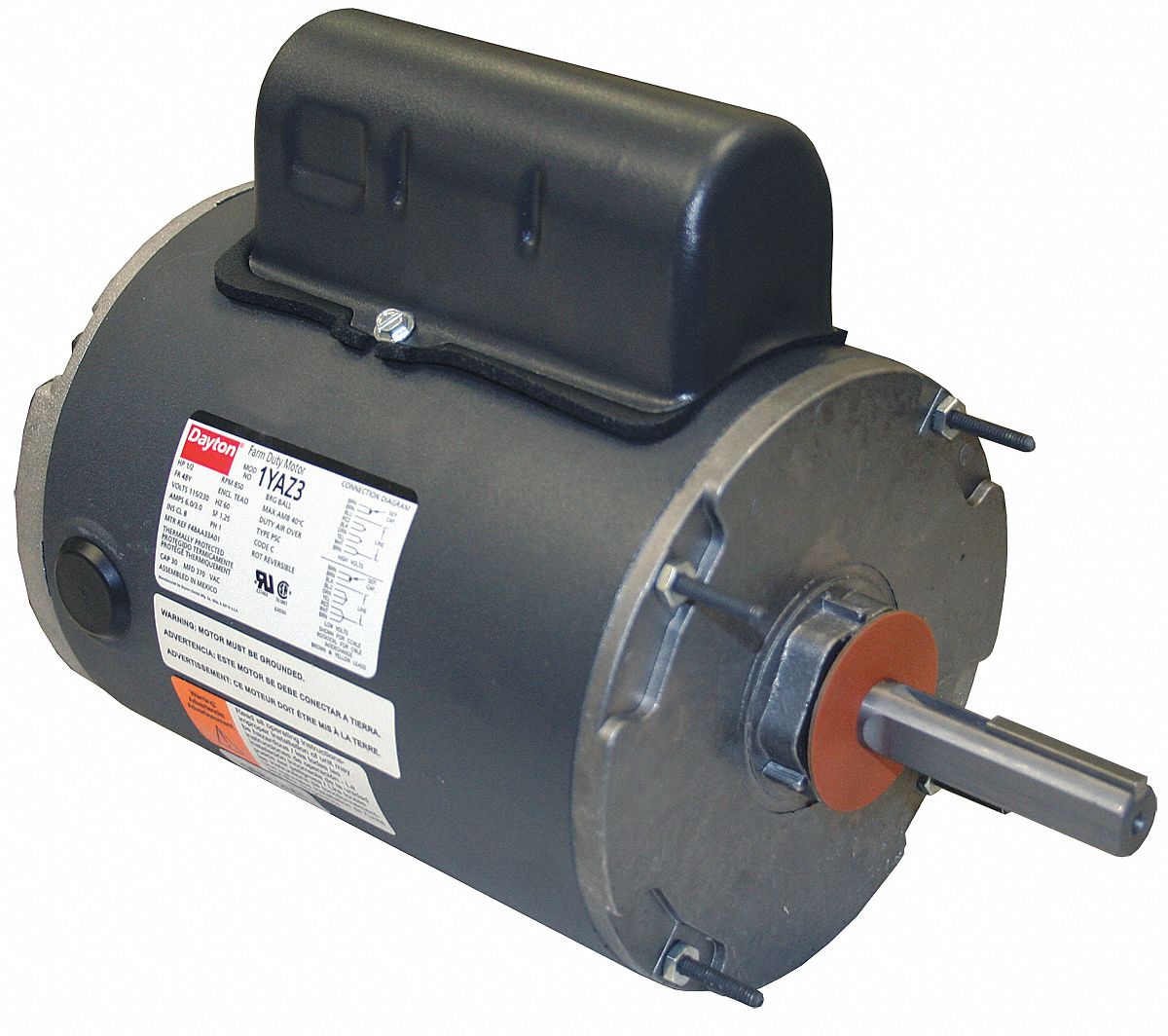

Poultry Fan Mtr, PSC, TEAO, 1/2 HP, 850 RPM

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Poultry Fan Motor
Motor Type		PSC
Enclosure		Totally Enclosed Air-Over
HP		1/2
Nameplate RPM		850
NEMA/IEC Frame		48Y
Frame		48Y
Rotation		CW/CCW
Voltage		115/230
Full Load Amps		6.0/3.0
Phase		1
Hz		60
Mounting		Stud
Mounting Position		Horizontal or Vertical
Bearings		Ball
Frame Material		Rolled Steel
Finish		Gray
Thermal Protection		Auto
Service Factor		1.25
Max. Ambient Temperature		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		2-5/8"
Shaft Type		Keyed
Length Less Shaft		8-3/16"
Overall Length		10-13/16"
Insulation Class		B
RPM Range		700-980
Duty		Continuous
Includes		Slinger, Gasketed Capacitor Cover
Standards		UL Recognized (E47479), CSA Certified (701887)
