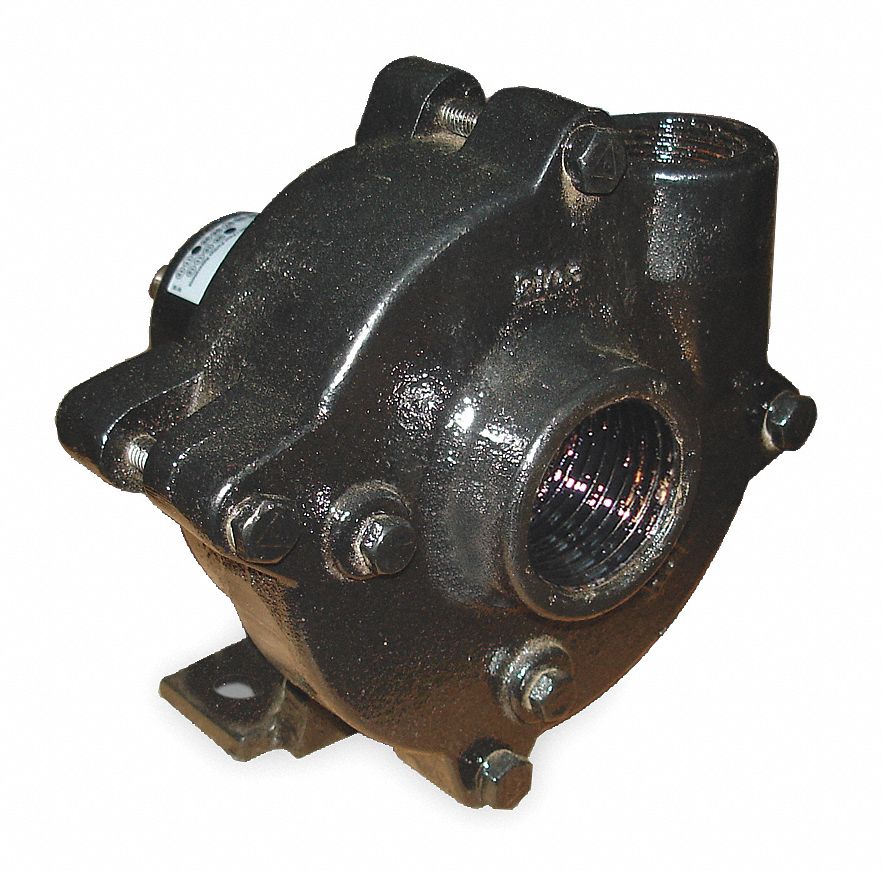

DAYTON Pedestal Pump, Centrifugal, HP Req. 3/4

Pedestal Pump, Centrifugal, HP Required 3/4, Inlet 1 1/4 In., Outlet 1 In., Impeller Material Cast Iron, Housing Material Cast Iron, Seal Material Buna-N, Max. Head 55 Ft., Max. Pressure 23.8 PSI, Inlet Pressure 200 PSI, Impeller Type Semi Open, Height 6 7/8 In., Length 6 5/8 In., Width 6 5/8 In.
  • Grainger Item #2ZWX5
    Price (ea.)$327.75
    BrandDAYTON
    Mfr. Model #2ZWX5
    UNSPSC #40151716
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)25.0
    Availability Typically in Stock
    Catalog Page No.4075
    Country of Origin
    (Country of Origin is subject to change.)
    India
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemPedestal Pump
TypeCentrifugal
HP Required3/4
Inlet (In.)1-1/4
Outlet (In.)1
Wetted MaterialsCast Iron, Buna-N, Carbon, Ceramic, SS
Impeller MaterialCast-Iron
Housing MaterialCast Iron
Volute MaterialCast Iron
Shaft MaterialStainless Steel
Screw MaterialZinc Plated
Seal TypeMechanical Carbon on Ceramic
Seal MaterialBuna-N
Seal ApplicationLong Life When Not Run Dry or Pumping Abrasives
Max. Liquid Temp. (F)200
GPM of Water @ 10 Ft. of Head72
GPM of Water @ 15 Ft. of Head68
GPM of Water @ 20 Ft. of Head63
GPM of Water @ 30 Ft. of Head53
GPM of Water @ 40 Ft. of Head41
GPM of Water @ 50 Ft. of Head22
Max. Head (Ft.)55
Max. Pressure (PSI)23.8
Best Efficiency GPM @ Head (Ft.)47 @ 36
Best Efficiency Range GPM @ Head (Ft.)35-63 @ 45-20 Ft.
Max. Specific Gravity1.0
Max. Case Pressure (PSI)200
Max. Fluid Viscosity100 SSU
Inlet Pressure (PSI)200
Impeller TypeSemi Open
Bearing TypeBall
DutyContinuous
Port Rotation4 Position
Drain PlugEasily Accessible
Manufacturers Warranty Length1 Year
ApplicationHigh Flow at Low Head Pressure
For Use WithNonflammable and Nonabrasive Liquids
Height (In.)6-7/8
Length (In.)6-5/8
Width (In.)6-5/8
IncludesComplete Pump with Mounting Base. No Motor or Drive Couplers. Includes Manual


Optional Accessories

More Accessories

Brand:

DAYTON

Grainger Item #:

3ACE6

Price (ea.):

$32.40
